1. Product Overview
This document provides instructions for the Ozark Trail 12' x 12' Canopy Gazebo Leg Slider Pole Connector, a replacement part designed for the Ozark Trail instant 12' x 12' Straight Leg Canopy Gazebo, Model WMT-1212115A. This component is crucial for the proper function of the canopy's leg assembly, allowing for smooth extension and retraction.
The leg slider facilitates the connection between the upper and lower leg sections of the canopy frame, enabling the gazebo to be set up and taken down efficiently. It is also compatible with other canopy brands that share the same dimensions and specifications.
2. Safety Information
- Always ensure the canopy structure is stable and secured before attempting any part replacement.
- Exercise caution when handling canopy poles, as they may pinch fingers or hands.
- If working at height, use a stable ladder or step stool.
- Keep small parts away from children to prevent choking hazards.
- Wear appropriate personal protective equipment, such as gloves, if necessary.
3. Package Contents
The package contains the following item:
- One (1) Leg Slider Pole Connector.
Note: Bolts for attachment are NOT included and must be reused from the original part or acquired separately if needed.
4. Setup and Installation
This section outlines the general procedure for replacing a leg slider. Refer to your original canopy's instruction manual for specific disassembly and assembly steps if available.
4.1 Identifying the Part
The leg slider is typically located at the joints of the canopy's vertical legs, allowing the leg sections to slide and lock into place. Ensure the replacement part matches the dimensions and design of the original part.
Figure 1: Front view of the leg slider showing a key dimension of 1 1/8 inches, which is critical for compatibility. This part connects the upper and lower leg sections of the canopy frame.
4.2 Removal of the Old Leg Slider
- Disassemble Canopy: If the canopy is assembled, carefully lower and disassemble the section containing the damaged slider. It may be easier to work with the leg detached from the main frame.
- Locate Fasteners: Identify any bolts, pins, or clips securing the old slider to the canopy leg poles.
- Remove Fasteners: Using appropriate tools (e.g., screwdriver, pliers), carefully remove these fasteners. Keep all fasteners in a safe place as they are not included with the replacement part.
- Detach Old Slider: Gently slide the old connector off the pole sections. Note how it was oriented.
4.3 Installation of the New Leg Slider
- Orient New Slider: Position the new leg slider in the same orientation as the old one.
- Slide onto Poles: Carefully slide the new connector onto the appropriate leg pole sections. Ensure it fits snugly.
- Reattach Fasteners: Reinsert the bolts, pins, or clips that were removed earlier. Tighten them securely, but do not overtighten, which could damage the plastic.
- Test Functionality: Once installed, test the slider's movement to ensure it slides smoothly and locks into position correctly.

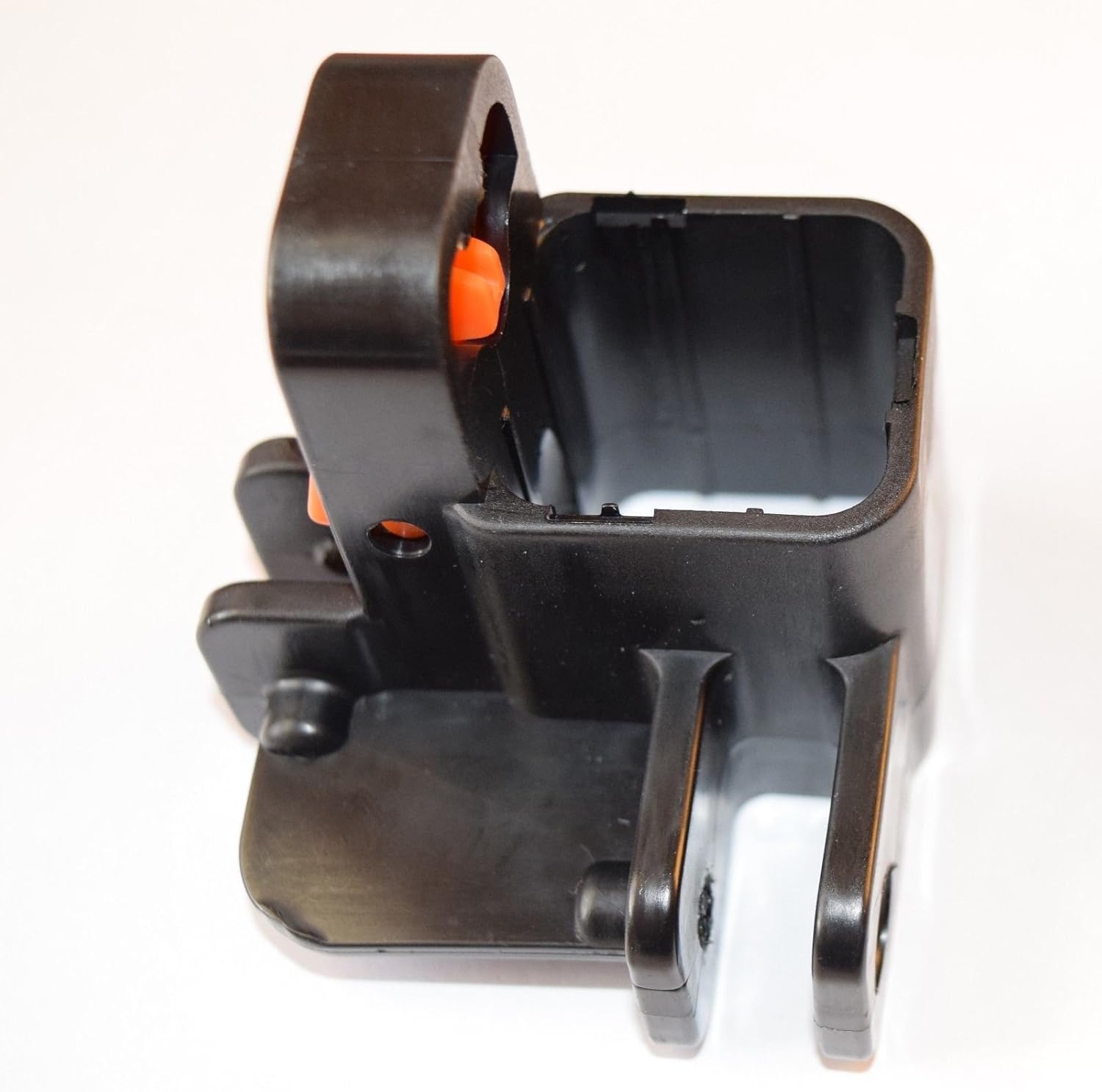

Figure 2: Side view of the leg slider, illustrating its robust plastic construction and the channels for the canopy poles. This view helps in understanding the component's structure for correct installation.
5. Maintenance
- Cleaning: Clean the leg slider periodically with a damp cloth to remove dirt and debris. Avoid harsh chemicals that may degrade the plastic.
- Lubrication: If the slider movement becomes stiff, a small amount of silicone-based lubricant can be applied to the sliding surfaces. Avoid oil-based lubricants, which can attract dirt.
- Inspection: Regularly inspect the slider for cracks, wear, or damage, especially before and after each use of the canopy. Replace if significant damage is observed.
- Storage: When the canopy is stored, ensure the leg sliders are clean and free of tension to prolong their lifespan.
6. Troubleshooting
| Problem | Possible Cause | Solution |
|---|---|---|
| Slider is stiff or difficult to move. | Dirt/debris accumulation, lack of lubrication, minor misalignment. | Clean the slider and pole surfaces. Apply silicone lubricant. Check for proper alignment during installation. |
| Slider does not lock into place. | Locking mechanism damaged, debris obstructing the lock, incorrect installation. | Inspect the locking mechanism for damage. Clear any obstructions. Re-check installation steps. If damaged, replacement may be necessary. |
| Slider appears loose or wobbly. | Fasteners not tightened, incorrect part size, wear on the slider or pole. | Ensure all fasteners are securely tightened. Verify the part is the correct size for your canopy model. If wear is significant, consider replacement. |
7. Specifications
- Product Type: Leg Slider Pole Connector
- Compatibility: Ozark Trail instant 12' x 12' Straight Leg Canopy Gazebo (Model: WMT-1212115A) and compatible models with matching dimensions.
- Material: Plastic
- Color: Black
- Item Weight: Approximately 1.6 ounces
- Package Dimensions: Approximately 6.38 x 3.94 x 2.72 inches
- Assembly Required: No (for the part itself, but installation into the canopy frame is required)
8. Warranty and Support
For warranty information or technical support regarding this replacement part, please refer to the original Ozark Trail canopy documentation or contact Ozark Trail customer service directly. Keep your purchase receipt as proof of purchase.
For general inquiries or assistance with installation, you may also consult online resources or professional canopy repair services.
