1. Product Overview
The Eviva Wave 36 inch White Wall Mount Single Sink Bath Vanity is designed for modern bathrooms. It features a durable engineered wood construction, a white quartz top, and a vessel porcelain sink. The vanity includes soft-closing drawers and brushed nickel handles, providing both functionality and a sleek aesthetic. This unit is designed for wall-mounted installation.

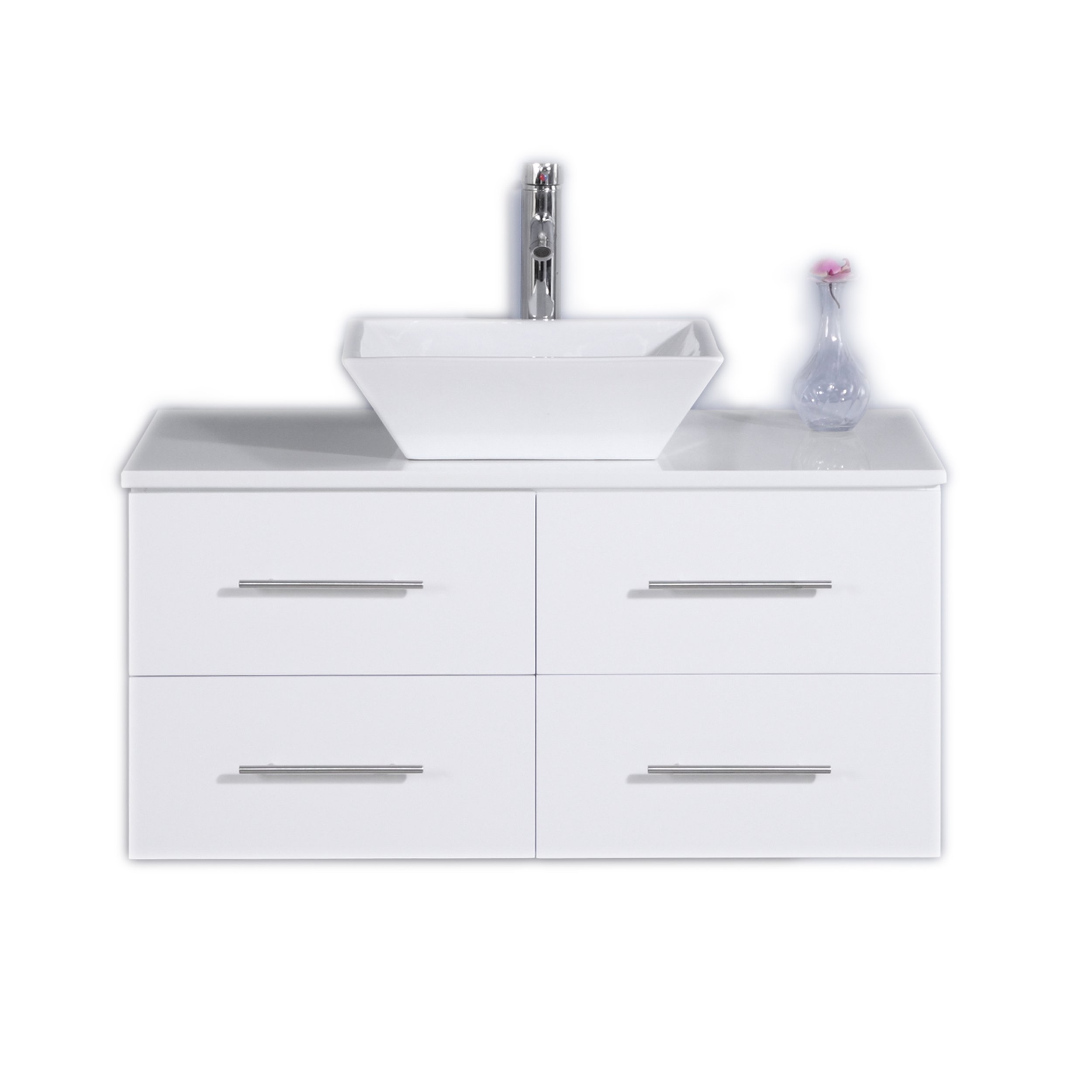

Figure 1: Front view of the Eviva Wave 36 Inch White Wall Mount Single Sink Bath Vanity.
Figure 2: Overhead view highlighting the white quartz countertop and brushed nickel handles.
2. Safety Information
Read all instructions carefully before installation and use. Failure to follow these instructions may result in injury or product damage.
- Always use proper lifting techniques when handling the vanity due to its weight (approximately 114 pounds).
- Securely mount the vanity to the wall to prevent tipping. Use appropriate wall anchors and fasteners for your wall type.
- Do not exceed the weight limit of the vanity's drawers or countertop.
- Be cautious of potential pinch points and hazards during installation and use, especially with moving parts like drawers.
- Ensure all plumbing connections are secure and leak-free to prevent water damage.
3. Package Contents
Verify that all components are present and undamaged before beginning installation. If any parts are missing or damaged, contact customer support.
- Eviva Wave 36 Inch Wall Mount Vanity Cabinet (fully assembled)
- White Quartz Top
- Vessel Porcelain Sink
- Brushed Nickel Handles (pre-installed or included for installation)
- Installation hardware (wall anchors, screws - specific to wall type may vary)
Note: Faucet and drain assembly are not included and must be purchased separately.
4. Setup Instructions
Professional installation is recommended for optimal results and safety. Ensure all local plumbing and building codes are followed.
4.1 Pre-Installation Checklist
- Confirm wall structure can support the vanity's weight (114 lbs) plus contents. Reinforce if necessary.
- Locate and mark plumbing lines (water supply and drain) on the wall.
- Ensure adequate space for the vanity (36"W x 21.75"D x 16"H).
- Gather necessary tools: measuring tape, level, drill, stud finder, screwdriver, caulk gun, sealant, plumbing tools.
4.2 Wall Mounting the Vanity Cabinet
- Determine the desired height for the vanity. Use a level to mark a horizontal line on the wall.
- Identify wall studs. If studs are not available at the desired mounting points, use appropriate heavy-duty wall anchors (not always included, may need to be purchased separately based on wall material).
- Position the vanity cabinet against the wall, aligning it with the marked line. The cabinet features an open back for easy plumbing access.
- Mark the drilling points through the pre-drilled holes in the vanity's mounting brackets.
- Drill pilot holes into the wall. Install wall anchors if required.
- Lift the vanity cabinet and secure it to the wall using appropriate screws. Ensure it is level and firmly attached.
Figure 3: Example of the vanity securely mounted to the wall.
4.3 Sink and Faucet Installation
- Place the white quartz top onto the vanity cabinet. Apply a bead of silicone sealant along the top edges of the cabinet before placing the countertop to secure it and prevent water ingress.
- Position the vessel porcelain sink on the designated area of the quartz top. Apply a thin bead of silicone sealant around the base of the sink where it meets the countertop.
- Install the faucet (not included) into the pre-drilled single-hole faucet mount on the quartz top according to the faucet manufacturer's instructions.
- Connect the water supply lines to the faucet and the drain assembly to the sink. Ensure all connections are tightened properly to prevent leaks.
- Turn on the water supply and check for any leaks.
5. Operating Instructions
The Eviva Wave vanity is designed for straightforward use.
- Drawers: The vanity is equipped with soft-closing drawers. To open, gently pull the brushed nickel handles. To close, push the drawers inward; they will slowly and quietly retract into the cabinet. Avoid forcing the drawers shut.
- Sink: Use the vessel porcelain sink for standard bathroom activities. Ensure the faucet is properly installed and functioning.
Figure 4: Side view showing the soft-closing drawers in an open position.
6. Maintenance
Regular cleaning and proper care will extend the life and maintain the appearance of your vanity.
- Cabinet: Wipe the engineered wood cabinet surfaces with a soft, damp cloth. Avoid abrasive cleaners or harsh chemicals, which can damage the glossy white finish. Dry immediately after cleaning.
- Quartz Top: The white quartz top is stain-resistant and low-maintenance. Clean with mild soap and water. For stubborn stains, use a non-abrasive household cleaner. Avoid strong acids, alkalis, or solvents.
- Porcelain Sink: Clean the vessel porcelain sink with mild soap and water. For tougher stains, a non-abrasive bathroom cleaner can be used. Rinse thoroughly after cleaning.
- Handles: Clean brushed nickel handles with a soft, damp cloth. Avoid abrasive cleaners to prevent scratching the finish.
- Spills: Wipe up any water spills on the cabinet or countertop immediately to prevent water damage.
7. Troubleshooting
This section addresses common issues you might encounter.
| Problem | Possible Cause | Solution |
|---|---|---|
| Drawers do not close smoothly. | Obstruction in the drawer slide; drawer overloaded; soft-close mechanism issue. | Remove items from the drawer and check for obstructions. Redistribute weight evenly. If the issue persists, inspect the soft-close mechanism for damage. |
| Water leak from sink or faucet. | Loose plumbing connections; damaged seals or O-rings; improper faucet installation. | Check all plumbing connections under the sink and at the faucet for tightness. Replace any worn or damaged seals. Re-install faucet if necessary, ensuring proper sealing. |
| Vanity feels unstable after installation. | Improper wall mounting; insufficient anchors; wall not reinforced. | Re-check wall mounting points. Ensure appropriate anchors are used for your wall type and that screws are fully tightened into studs or anchors. Consider professional assistance for wall reinforcement. |
For issues not covered here, please contact Eviva customer support.
8. Specifications
| Feature | Detail |
|---|---|
| Brand | Eviva |
| Model Number | EVVN147-36WH |
| Dimensions (D x W x H) | 21.75" x 36" x 16" |
| Color | White |
| Mounting Type | Wall Mount |
| Frame Material | Engineered Wood |
| Top Material | White Quartz (Glassos) |
| Sink Type | Vessel Porcelain Sink |
| Number of Basins | 1 (Single Sink) |
| Hardware Color | Brushed Nickel |
| Special Features | Soft Closing Drawers, Easy Plumbing Access |
| Assembly Required | No (Cabinet arrives fully assembled) |
| Item Weight | 114 Pounds |
9. Warranty Information
For specific warranty details regarding your Eviva Wave vanity, please refer to the documentation included with your purchase or visit the official Eviva website. Warranty terms typically cover manufacturing defects under normal use.
10. Customer Support
If you have any questions, require assistance with installation, or need to report a missing/damaged part, please contact Eviva customer support:
- Online: Visit the official Eviva website for support resources and contact forms.
- Phone: Refer to your product packaging or the Eviva website for the most current customer service phone number.
Please have your model number (EVVN147-36WH) and purchase date available when contacting support.
