1. Introduction
Welcome to the instruction manual for your new Kmise MI2174 4-String Banjo Ukulele. This instrument combines the compact size and tuning of a ukulele with the distinctive sound of a banjo, offering a unique musical experience. This manual will guide you through the setup, operation, and maintenance of your instrument to ensure optimal performance and longevity.
Image 1.1: Front view of the Kmise MI2174 4-String Banjo Ukulele.
2. Product Overview
The Kmise MI2174 Banjo Ukulele features a distinctive design with a clear yellow plastic body that contributes to its crisp sound. It is equipped with a Canada maple neck and fingerboard, ensuring durability and stable sound transfer. The fretboard is designed for smooth playability, and the fret wires are neatly finished to prevent hand discomfort. The instrument comes with high-quality Aquila strings and a bone nut for excellent tone.
Key Components:
- Headstock: Houses the tuning pegs.
- Tuning Pegs: Used to adjust string tension for tuning.
- Nut: A small strip at the top of the fretboard that guides the strings.
- Neck: The long wooden part that extends from the body, containing the fretboard.
- Fretboard: The surface on the neck where fingers press down on strings.
- Frets: Metal strips on the fretboard that define notes.
- Body (Resonator): The round, banjo-like part that amplifies the sound.
- Bridge: A small piece that holds the strings above the body and transfers vibrations.
- Tailpiece: Secures the strings at the bottom of the body.
- Strings: Four nylon strings for playing.
Image 2.1: Side view of the Kmise MI2174 Banjo Ukulele, highlighting the transparent body and maple neck.
Image 2.2: Detailed view of the smooth fretboard and neatly installed fret wires.
3. Setup
Your Kmise Banjo Ukulele requires minimal setup before playing. The most important steps are installing the bridge and tuning the instrument.
3.1 Bridge Installation
The bridge is typically shipped unattached to prevent damage during transit. It is a small wooden piece that sits on the banjo head and holds the strings. Follow these steps to install it:
- Carefully unpackage the instrument and locate the bridge.
- The strings will likely be loose. Gently loosen them further by turning the tuning pegs clockwise until they are slack enough to lift the strings off the body.
- Position the bridge upright under the strings. The bridge usually has a slightly curved top to match the string spacing. Ensure the wider side of the bridge faces the tailpiece.
- The correct placement for the bridge is typically equidistant from the nut and the 12th fret. A common method is to measure the distance from the nut to the 12th fret, then place the bridge at the same distance from the 12th fret towards the tailpiece. Some models may include a plastic bridge setup guide for easier placement.
- Once the bridge is in place, gently tighten the strings by turning the tuning pegs counter-clockwise. Ensure each string sits correctly in its groove on the bridge.

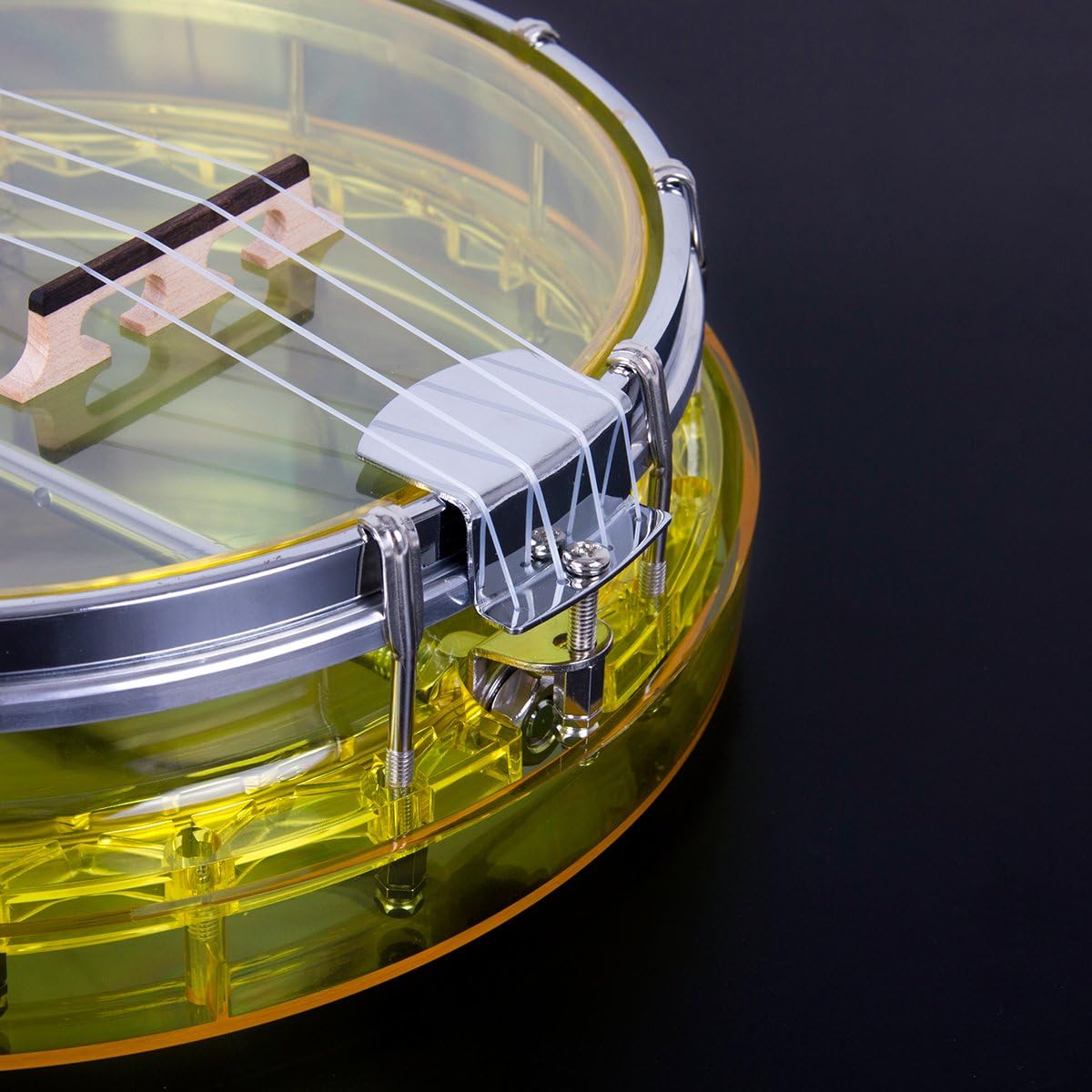

Image 3.1: Detailed view of the bridge and tailpiece assembly.
3.2 Tuning
The Kmise MI2174 Banjo Ukulele uses standard G-C-E-A ukulele tuning. It is highly recommended to use an electronic tuner for accuracy. If you do not have one, many free tuner applications are available for smartphones.
- Start with the first string (closest to the floor when holding the instrument). Tune it to A.
- Proceed to the second string, tuning it to E.
- Tune the third string to C.
- Finally, tune the fourth string (closest to the ceiling) to G.
New strings will stretch and may require frequent re-tuning during the first few days of use. This is normal. Continue to re-tune as needed until the strings stabilize and hold their pitch.
Image 3.2: Diagram showing instrument dimensions and standard G-C-E-A tuning.
4. Operating the Instrument
Once your banjo ukulele is set up and tuned, you are ready to play. The instrument's longer frets compared to some ukuleles can make it easier to form chords and navigate the fretboard.
4.1 Holding the Instrument
Hold the banjo ukulele comfortably against your body. The neck should extend away from you at a slight upward angle, allowing your fretting hand to reach all positions easily. Your strumming hand should be positioned over the strings near the bridge or sound hole, depending on the desired tone.
Image 4.1: Example of holding the Kmise Banjo Ukulele for comfortable playing.
4.2 Basic Playing
The banjo ukulele is played similarly to a standard ukulele. You can strum the strings with your fingers or a pick, or pluck individual strings for melodic lines. Experiment with different strumming patterns and chord shapes to explore the instrument's unique sound.
5. Maintenance
Proper maintenance will help preserve the sound quality and lifespan of your Kmise Banjo Ukulele.
5.1 Cleaning
- Wipe down the instrument with a soft, dry cloth after each use to remove sweat and oils.
- For the plastic body, a slightly damp cloth can be used, followed by a dry cloth. Avoid harsh chemicals.
- Clean the fretboard periodically with a specialized fretboard cleaner or a very lightly damp cloth.
5.2 String Replacement
Strings should be replaced when they become dull, worn, or break. The Kmise MI2174 uses Aquila nylon strings, which are known for their quality. When replacing strings, change them one at a time to maintain tension on the neck and bridge placement. This also helps the new strings settle faster.
5.3 Storage
Store your banjo ukulele in a stable environment, away from extreme temperature changes or humidity fluctuations, which can affect the wood components. A gig bag or hard case is recommended for protection.
6. Troubleshooting
6.1 Tuning Instability
If your instrument frequently goes out of tune, especially when new, this is often due to new strings stretching. Continue to re-tune regularly. Ensure strings are properly seated in the tuning pegs and nut slots. If the issue persists, check for loose tuning pegs or bridge placement.
6.2 Buzzing Sounds
Buzzing can be caused by several factors:
- Improper Fret Hand Position: Ensure you are pressing the strings firmly just behind the fret.
- High or Low Action: The height of the strings above the fretboard. If too low, strings can buzz against frets. If too high, it can be difficult to play. This instrument is designed with a fixed bridge, so action adjustments are limited.
- Worn Frets or Strings: Replace strings if they are old or worn.
- Loose Components: Check if the bridge or any other part is loose.
7. Specifications
- Brand: Kmise
- Model: MI2174
- Instrument Type: 4-String Banjo Ukulele (Concert Size)
- Number of Strings: 4
- Tuning: G-C-E-A (Standard Ukulele Tuning)
- Body Material: Transparent Yellow Plastic
- Neck Material: Canada Maple
- Fingerboard Material: Canada Maple
- String Material: Aquila Nylon
- Overall Length: Approximately 23.81 inches
- Body Diameter: Approximately 9.25 inches
- Body Depth: Approximately 2.44 inches
8. Warranty and Support
For warranty information or technical support regarding your Kmise MI2174 Banjo Ukulele, please refer to the documentation provided at the point of purchase or contact your retailer. You may also visit the official Kmise website for further assistance.
