XH-2P-6Pin Connector Kits Instruction Manual

1. Introduction

This manual provides instructions for the proper assembly, use, and maintenance of the Generic 2.54mm XH-2P-6Pin Connector Kits. These kits are designed for various electronic applications requiring reliable and secure electrical connections. Please read this manual thoroughly before proceeding with assembly or use.

2. Product Overview

2.1 Kit Contents

Each kit includes the following components:

• Pin Headers: 50 pieces (10 pieces each of XH-2P, XH-3P, XH-4P, XH-5P, XH-6P)
• Terminals: 200 pieces
• Housings: 50 pieces (corresponding to the pin headers)

2.2 Key Features

• Standard 2.54mm pitch for broad compatibility.
• Available in 2-pin to 6-pin configurations.
• Rated for 250V/3A, suitable for various low-power applications.
• Includes all necessary components for creating custom wire harnesses.

2.3 Product Components Illustration

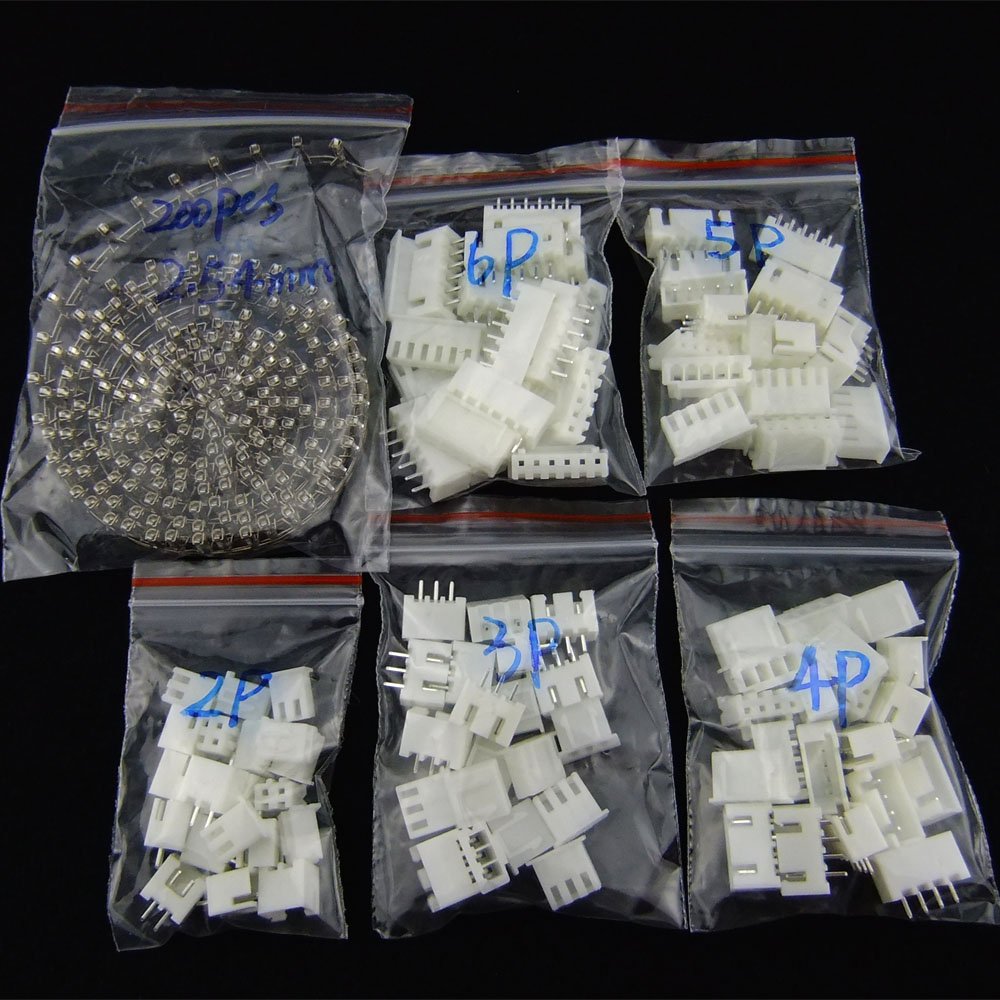

Image 1: An assortment of white XH connector components. This includes various sizes of pin headers (male connectors with exposed pins), corresponding white plastic housings (female connectors), and a strip of metal terminals (crimp pins) used to connect wires to the housings. The components are laid out on a dark surface, showcasing their individual forms.

3. Setup Instructions

Proper assembly of these connectors requires basic tools such as wire strippers and a crimping tool suitable for small terminals. Ensure all connections are secure to prevent electrical issues.

3.1 Identifying Components

• Pin Headers: These are the male components, typically mounted on a PCB, with exposed metal pins. They are labeled XH-2P, XH-3P, etc., indicating the number of pins.
• Housings: These are the female plastic shells that mate with the pin headers. They have cavities for the crimped terminals.
• Terminals: These are small metal contacts that are crimped onto the end of a wire and then inserted into the housing.

3.2 Assembly Steps

1. Prepare Wires: Strip approximately 2-3mm of insulation from the end of each wire you intend to use. Ensure the exposed wire strands are clean and untwisted.
2. Crimp Terminals: Carefully place a terminal into a suitable crimping tool. Insert the stripped end of a wire into the terminal's crimp barrel. Crimp firmly to ensure a strong mechanical and electrical connection. Verify that the insulation is also crimped by the secondary crimp barrel for strain relief.
3. Insert Terminals into Housing: Orient the crimped terminal correctly (refer to the housing's internal structure for the correct pin orientation). Push the terminal into the corresponding cavity in the plastic housing until you hear or feel a click. This indicates the terminal's locking tab has engaged. Gently pull on the wire to confirm it is securely seated.
4. Repeat for all Wires: Repeat steps 1-3 for all wires required for your connector.
5. Connect to Pin Header: Once all terminals are securely in the housing, align the housing with the appropriate pin header. Gently push the housing onto the pin header until it is fully seated. Ensure the connection is firm and all pins are engaged.

4. Operating Guidelines

Once assembled, these connectors provide a reliable connection for your electronic circuits. Observe the following guidelines for optimal performance:

• Polarity: Always ensure correct polarity when connecting to a circuit. Incorrect polarity can damage components.
• Secure Connection: Verify that the housing is fully seated onto the pin header to prevent intermittent connections.
• Disconnection: To disconnect, gently pull the housing straight away from the pin header. Avoid pulling on the wires, as this can damage the crimped connections.
• Environmental Conditions: Use these connectors within their specified voltage and current ratings and in appropriate environmental conditions (e.g., avoid excessive moisture or extreme temperatures unless designed for such).

5. Maintenance

These connectors are generally low-maintenance. However, proper handling and storage can extend their lifespan and ensure continued reliability.

• Storage: Store unused components in a dry, dust-free environment, preferably in their original packaging or a sealed container to prevent oxidation or damage to the terminals.
• Inspection: Periodically inspect assembled connectors for any signs of wear, corrosion, or loose wires, especially in applications involving vibration or frequent connection/disconnection.
• Cleaning: If necessary, gently clean the metal contacts with a non-abrasive electronic contact cleaner. Ensure the connector is disconnected from power before cleaning.

6. Troubleshooting

If you encounter issues with your connector assembly, consider the following common problems and solutions:

• No Electrical Connection:
  • Check if terminals are properly crimped onto wires. A poor crimp can lead to high resistance or an open circuit.
  • Verify that terminals are fully inserted and locked into the housing.
  • Ensure the housing is fully seated onto the pin header.
  • Confirm correct polarity.
• Loose Wires in Housing:
  • This indicates the terminal's locking tab did not engage or is damaged. Remove the terminal (if possible without damage) and re-insert, ensuring a click. If damaged, replace the terminal and housing.
• Difficulty Connecting/Disconnecting:
  • Ensure proper alignment between the housing and pin header.
  • Avoid forcing connections. If excessive force is needed, there might be an alignment issue or a bent pin.

7. Specifications

8. Warranty Information

Specific warranty details for this product are typically provided by the seller or manufacturer at the time of purchase. Please refer to your purchase documentation or contact the seller directly for information regarding warranty coverage, terms, and conditions.

9. Support

For technical assistance, questions regarding product use, or to report any issues, please contact the seller through the platform where the product was purchased. Provide your order number and a detailed description of your inquiry for efficient support.
