Masterack 024304KP Wire Spool Carrier User Manual
Model: 024304KP | Brand: Masterack
Introduction
The Masterack 024304KP Wire Spool Carrier is a robust and efficient storage solution designed for organizing and dispensing wire spools. Ideal for professional use in vans or workshops, this carrier helps keep your workspace tidy and your wire readily accessible. Its durable construction ensures long-lasting performance in demanding environments.
Product Overview

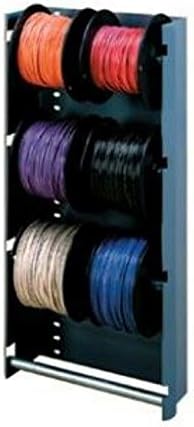

Figure 1: Masterack 024304KP Wire Spool Carrier
This image displays the Masterack 024304KP Wire Spool Carrier, a vertical rack system. It is dark gray or black in color and features three distinct levels for holding wire spools. Each level is designed to accommodate two spools, as shown with various colored wires (orange, red, purple, black, beige, blue) loaded onto them. A sturdy horizontal metal bar is positioned at the base of the unit, likely serving as a support or an additional feature for stability or dispensing.
The 024304KP Wire Spool Carrier is engineered for efficiency and durability. It features multiple tiers to hold various sizes of wire spools, allowing for quick identification and access. The robust frame is designed to withstand the rigors of daily use in commercial vehicles or industrial settings.
Key Features:
- Multi-tier design for efficient spool organization.
- Durable construction for long-term reliability.
- Optimized for van storage and workshop environments.
- Facilitates easy dispensing of wire.
Setup and Installation
The Masterack 024304KP Wire Spool Carrier is designed for straightforward installation. Depending on your application, it can be mounted to a flat surface within a vehicle or workshop, or used as a freestanding unit.
Recommended Installation Steps:
- Unpacking: Carefully remove the carrier from its packaging. Inspect for any shipping damage.
- Location Selection: Choose a stable and secure location for the carrier. If installing in a vehicle, ensure it is mounted to a structural component to prevent movement during transit.
- Mounting (Optional): If mounting, mark the desired drill points on the mounting surface using the carrier's pre-drilled holes as a template. Use appropriate fasteners (not included) for your specific mounting surface (e.g., self-tapping screws for metal, lag bolts for wood). Ensure the carrier is level and securely fastened.
- Loading Spools: Once secured, you can begin loading wire spools onto the designated rods. Ensure spools are seated properly to prevent dislodgement.
Note: Always use appropriate safety gear when handling tools and installing equipment. Consult a professional if you are unsure about the installation process.
Operating Instructions
Using the Masterack Wire Spool Carrier is straightforward, designed for quick access and efficient dispensing of wire.
Loading and Dispensing Wire:
- Loading Spools: To load a wire spool, slide it onto the horizontal rod at the desired tier. Ensure the spool is centered and rests securely on the support brackets.
- Dispensing Wire: Pull the desired length of wire from the spool. The design of the carrier allows the spool to rotate freely, facilitating smooth dispensing.
- Cutting Wire: Use appropriate wire cutting tools to cut the required length.
- Unloading Spools: To remove an empty or unneeded spool, simply slide it off the rod.
Tip: Organize spools by wire type, gauge, or color for maximum efficiency.
Maintenance
The Masterack Wire Spool Carrier requires minimal maintenance to ensure its longevity and optimal performance.
- Cleaning: Periodically wipe down the carrier with a damp cloth to remove dust, dirt, or debris. Avoid abrasive cleaners that could damage the finish.
- Inspection: Regularly inspect all mounting points and structural components for any signs of wear, loosening, or damage. Tighten any loose fasteners immediately.
- Lubrication: The spool rods are designed for smooth rotation. If any resistance is noted, a light application of a dry lubricant (e.g., silicone spray) to the rod and spool contact points may be beneficial.
Troubleshooting
This section addresses common issues you might encounter with your wire spool carrier.
| Problem | Possible Cause | Solution |
|---|---|---|
| Spools do not rotate smoothly. | Dust/debris on rods, bent rod, damaged spool. | Clean rods. Check for bent rods and replace if necessary. Inspect spools for damage. Apply dry lubricant. |
| Carrier feels unstable. | Loose mounting fasteners, uneven surface, overloaded. | Tighten all mounting fasteners. Ensure carrier is on a level surface. Do not exceed weight capacity. |
| Wire tangles during dispensing. | Improper spool loading, damaged spool. | Ensure spools are loaded correctly and freely rotating. Replace damaged spools. |
Specifications
- Model Number: 024304KP
- Brand: Masterack
- Product Dimensions: 27 x 16 x 6 inches (approximate)
- Item Weight: 14.6 pounds
- Description: Wire Spool Carrier, 24Hx12Wx4D, Van Storage Accessories
- Date First Available: November 30, 2017
Warranty and Support
Masterack products are manufactured to high standards of quality and durability. For specific warranty information, please refer to the documentation provided at the time of purchase or visit the official Masterack website. For technical support or inquiries regarding your 024304KP Wire Spool Carrier, please contact Masterack customer service through their official channels.
Please note that warranty terms may vary based on region and retailer. Keep your proof of purchase for warranty claims.
