Introduction
This manual provides comprehensive instructions for the installation, operation, and maintenance of the Limus One Premium Automatic Sliding Gate Opener Motor S60. Please read this manual thoroughly before installation and operation to ensure safe and efficient use of the product. Keep this manual for future reference.

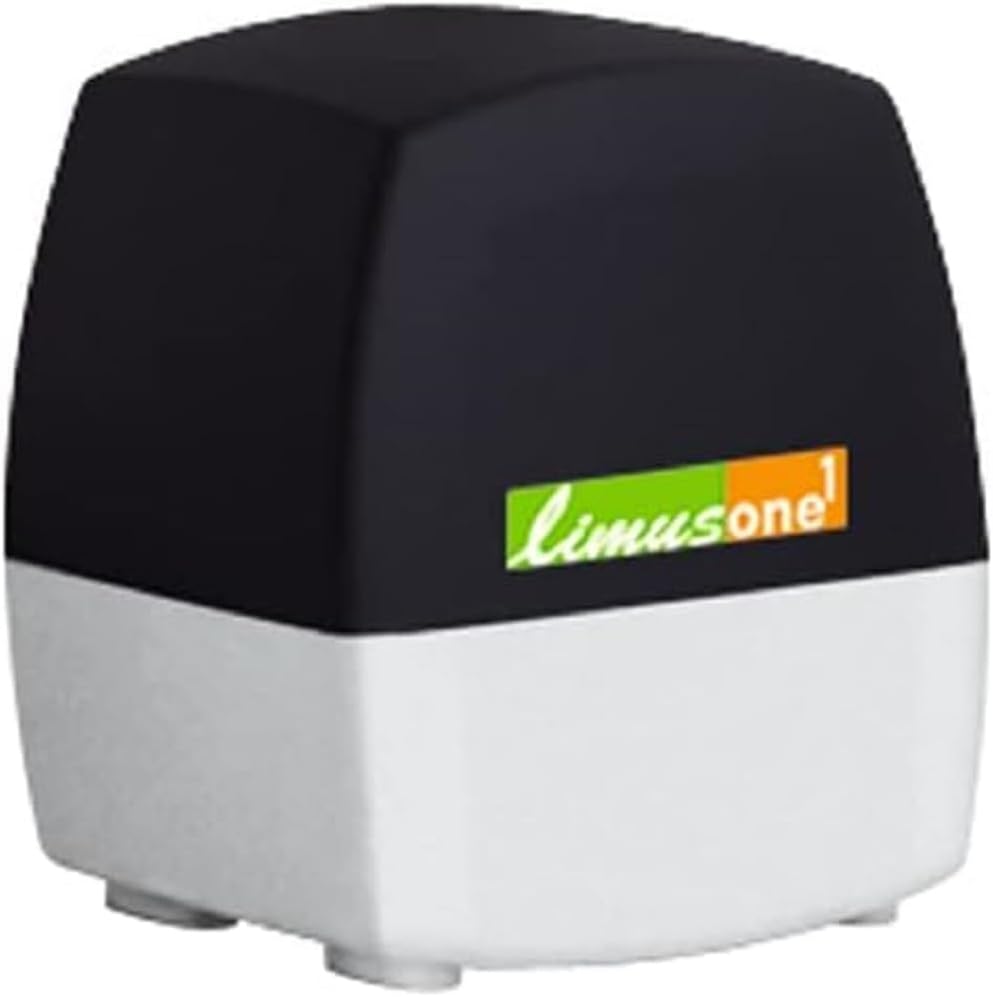

Image: The Limus One Premium Automatic Sliding Gate Opener Motor S60, featuring a black top housing and a white base, with the 'Limus One' logo visible on the side.
Safety Information
Always prioritize safety during installation and operation. Failure to follow safety instructions can result in serious injury or damage to property.
- Ensure all power is disconnected before performing any installation or maintenance.
- Only qualified personnel should perform electrical connections.
- Keep children and pets away from the gate area during operation.
- Do not attempt to repair the motor if you are not trained to do so. Contact qualified service personnel.
- Regularly inspect the gate and opener for signs of wear or damage.
Setup and Installation
This section outlines the steps for setting up and installing your Limus One S60 gate opener.
1. Pre-Installation Checklist
- Verify all components are present as per the packing list.
- Ensure the gate is in good working condition and moves freely.
- Confirm power supply (230V AC) is available at the installation site.
- Gather necessary tools: drill, wrenches, screwdrivers, level, measuring tape.
2. Mounting the Motor
The motor should be mounted on a stable, level concrete base adjacent to the gate. The installation method is Screw In.
- Position the motor base plate according to the gate's travel path, ensuring proper alignment with the gear rack.
- Mark the drilling points for the mounting screws.
- Drill holes into the concrete base and secure the motor using appropriate anchor bolts (not supplied).
- Ensure the motor is level and securely fastened.
3. Installing the Gear Rack
Attach the gear rack to the gate, ensuring it meshes correctly with the motor's pinion gear.
- The rack should be installed horizontally along the bottom edge of the gate.
- Maintain a small clearance (approx. 1-2mm) between the rack and the motor's pinion gear to allow for gate movement.
- Secure the rack sections firmly to the gate using self-tapping screws or bolts.
4. Electrical Connections
All electrical work must be performed by a qualified electrician.
- Connect the main power supply to the control board terminals as indicated in the wiring diagram (refer to the separate wiring diagram provided with the product).
- Connect safety devices such as photocells and emergency stop buttons.
- Connect remote control receiver and any other accessories.
- Ensure proper grounding of the unit.
5. Limit Switch Adjustment
Adjust the limit switches to define the gate's open and closed positions.
- Manually move the gate to the desired fully open position and set the open limit switch.
- Manually move the gate to the desired fully closed position and set the closed limit switch.
- Test the gate operation to ensure the limits are correctly set and the gate stops precisely.
Operating Instructions
This section details the normal operation of your automatic gate opener.
Remote Control Operation
- Press the designated button on your remote control to open the gate.
- Press the button again while the gate is moving to stop it.
- Press the button again to close the gate if it is stopped or fully open.
- The gate will automatically close after a preset time if the auto-close function is enabled.
Manual Release
In case of power failure or malfunction, the gate can be operated manually.
- Locate the manual release mechanism on the motor unit.
- Insert the provided key and turn it to disengage the motor.
- The gate can now be moved by hand.
- To re-engage, turn the key back and ensure the mechanism locks into place.
Maintenance
Regular maintenance ensures the longevity and safe operation of your gate opener.
Monthly Checks
- Inspect the gate for smooth movement, ensuring no obstructions or excessive friction.
- Check the gear rack for loose bolts or damage.
- Verify the proper functioning of safety photocells and other safety devices.
- Clean any debris from the motor housing and gear area.
Annual Servicing
It is recommended to have the gate opener serviced annually by a qualified technician.
- Lubricate moving parts as per manufacturer recommendations.
- Check electrical connections for corrosion or looseness.
- Test the motor's current draw and overall performance.
Troubleshooting
This section provides solutions to common issues you might encounter.
| Problem | Possible Cause | Solution |
|---|---|---|
| Gate does not move. | No power; remote control battery flat; safety device activated. | Check power supply; replace remote battery; check photocells for obstruction. |
| Gate stops mid-operation. | Obstruction detected; limit switch issue; motor overheating. | Remove obstruction; check limit switch settings; allow motor to cool. |
| Remote control not working. | Battery dead; remote out of range; remote not programmed. | Replace battery; move closer to receiver; re-program remote (refer to programming guide). |
If the problem persists after attempting these solutions, please contact customer support.
Specifications
- Model: Limus One S60 (Item Model Number: 4511477)
- Brand: Berner Torantriebe / Limus One
- Product Dimensions: 35.5 x 29 x 29 cm
- Item Weight: 11.8 kg
- Installation Method: Screw In
- Exterior Finish: Aluminium
- Batteries: Yes (Included and Required)
- Manufacturer: Limus One
Warranty Information
The Limus One Premium Automatic Sliding Gate Opener Motor S60 comes with a manufacturer's warranty. Please refer to the warranty card included with your product for specific terms and conditions, including warranty duration and coverage details. Keep your proof of purchase for warranty claims.
For warranty service, contact the authorized service center or your point of purchase.
Customer Support
For technical assistance, spare parts, or further inquiries, please contact Berner Torantriebe customer support.
- Manufacturer: Limus One
- Brand: Berner Torantriebe
- Website: www.berner-torantriebe.de (Example link, actual link may vary)
- Contact Information: Refer to the product packaging or manufacturer's website for the most current contact details.
