1. Introduction
The Nargos Cop Rose X6 is an automatic window cleaning robot designed for efficient cleaning of various vertical surfaces, including windows, mirrors, and tiles. This manual provides essential information for the safe and effective use of your device. Please read all instructions carefully before operation.
2. Product Components
The package includes the following items:
- Cop Rose X6 Machine
- Adapter
- AC Power Cord
- DC Extendable Cable
- Remote Controller
- Long Hair Fiber Mopping Cloths
- Short Hair Fiber Mopping Cloths
- Safety Rope
- Owner's Manual

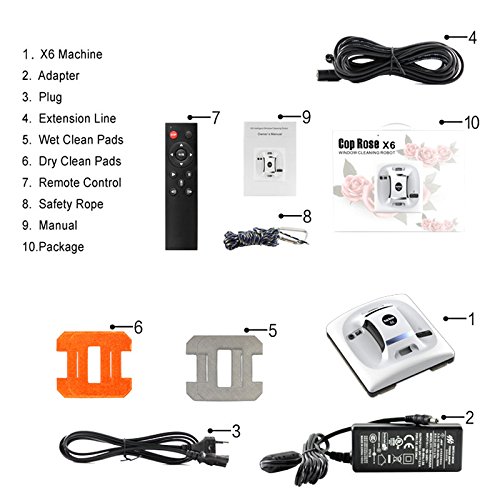

Figure 2.1: Included Components. This image displays the main unit, remote control, power adapter, extension cable, safety rope, and cleaning pads.
3. Safety Instructions
- Always attach the safety rope to a secure anchor point indoors before operating the robot, especially on high or outdoor windows. The safety rope is designed to withstand a force of 150 Kgf.
- Ensure the power cord is securely connected during operation. The robot features an Un-interrupt Power System (UPS) with a built-in battery that provides approximately 20-30 minutes of power in case of a sudden power outage, preventing the robot from falling.
- Do not use the robot on horizontal surfaces. It is designed for vertical or inclined surfaces above 30 degrees.
- Keep hands and loose clothing away from moving parts during operation.
- Do not operate the robot in wet conditions or on excessively dirty surfaces that may damage the vacuum mechanism.
- Ensure the cleaning surface is free from large debris that could obstruct the robot's movement or cause damage.

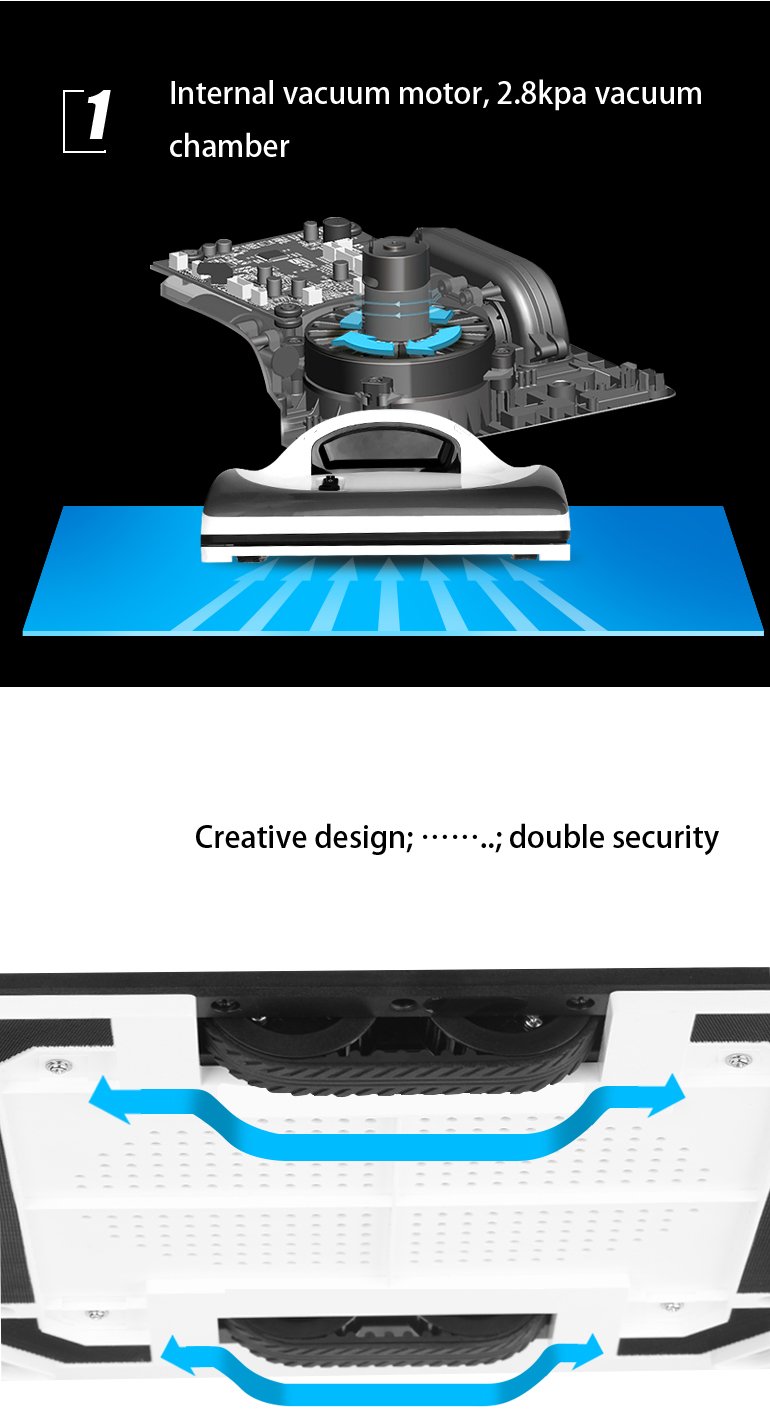

Figure 3.1: Internal Vacuum Motor. The robot utilizes a 2.8kPa vacuum chamber for strong adhesion to surfaces.
Figure 3.2: Intelligent Pressure Sensor. The robot automatically detects and increases adhesive force for secure attachment.
4. Setup
- Prepare the Cleaning Pads: Attach the appropriate microfiber cleaning pads (long or short hair) to the bottom of the robot. Ensure they are clean and slightly damp for optimal cleaning.
- Connect Power: Connect the DC extendable cable to the robot, then connect the adapter and AC power cord to a power outlet.
- Attach Safety Rope: Securely attach the safety rope to a sturdy object indoors, such as a heavy piece of furniture or a window frame anchor.
- Position the Robot: Place the robot on the desired cleaning surface. Ensure the surface is clean enough for the vacuum to create a seal.
5. Operating Instructions
Operating the Cop Rose X6 involves three simple steps:
- Power On: Press the power button on the robot or the remote control to turn on the device.
- Activate Vacuum (Suck): Once powered on, the robot will automatically activate its vacuum to adhere to the surface. Ensure it is firmly attached before proceeding.
- Start Cleaning: Use the remote control to select a cleaning mode and start the cleaning process. The robot offers 3 auto-cleaning modes.
The robot features smart move navigation and a laser sensor for intelligent path planning. The remote control has a range of up to 15 meters.
Figure 5.1: Laser Sensor and AI Navigation. The robot uses a laser sensor for intelligent path detection.
Figure 5.2: Remote Control Operation. The remote control allows operation from up to 15 meters away.
6. Maintenance
- Cleaning Pads: After each use, remove the microfiber cleaning pads and wash them. They can be hand-washed or machine-washed with mild detergent. Ensure they are completely dry before reattaching.
- Robot Body: Wipe the robot's body with a soft, dry cloth to remove any dust or residue. Do not use abrasive cleaners or immerse the robot in water.
- Sensors: Periodically clean the sensors on the robot's underside with a soft, dry cloth to ensure accurate navigation.
- Storage: Store the robot and its accessories in a cool, dry place away from direct sunlight when not in use.
Figure 6.1: Microfiber Cleaning Towel. The robot uses non-cotton microfiber towels for effective cleaning.
7. Troubleshooting
| Problem | Possible Cause | Solution |
|---|---|---|
| Robot does not adhere to surface. | Insufficient vacuum seal; surface too dirty or uneven; power issue. | Ensure cleaning pads are properly attached and slightly damp. Clean the surface of large debris. Check power connection. |
| Robot stops during cleaning. | Power outage; obstacle detected; low battery (UPS). | Check power supply. If power is out, the UPS will provide backup for approximately 20-30 minutes. Remove any obstacles. Recharge battery if needed. |
| Poor cleaning performance. | Dirty or dry cleaning pads; surface too dirty. | Replace or wash cleaning pads. Dampen pads slightly. Pre-clean heavily soiled surfaces if necessary. |
| Remote control not working. | Dead batteries in remote; out of range. | Replace remote control batteries. Ensure you are within the 15-meter operating range. |
8. Specifications
- Model: X6
- Adhesive Type: Vacuum, Square Cleaning pattern
- Glass Thickness Limitation: No limitation
- Cleaning Speed: 2.4 minutes/meter²
- Auto-cleaning Mode: 3 modes
- UPS (Un-interrupt Power System): 20-30 minutes backup
- Frameless Window: Auto-finish feature
- Safety Rope Strength: 150 Kgf
- Minimum Surface Dimension: > 40cm x 40cm
- Allowed Surface Roughness: < 1.5 mm
- Machine Size (L x W x H): 24 x 24 x 10 cm
- Weight: 1.2 Kg (Product), 2.59 Kg (Package)
- Power Range: 100~240V, 50~60Hz
- Power Consumption: 80W
- Certification: CE, FCC, RoHS
- Controller Type: Remote Control
- Battery Cell Composition: Lithium Ion
- Power Source: Battery Powered (internal for UPS)
- Manufacturer: Cop Rose
9. Warranty and Support
For warranty information or technical support, please refer to the contact details provided with your purchase documentation or contact the retailer. Keep your purchase receipt as proof of purchase.
