1. Product Overview
This HOMCOM 500W Macerating Sanitary Waste Water Pump is designed for efficient drainage of wastewater from various sanitary fixtures. It is a practical solution for connecting to toilets, showers, sinks, and kitchen drains, especially in locations where gravity drainage is not feasible.
The pump is constructed from durable, lightweight polypropylene, ensuring ease of cleaning and transport. All materials comply with European regulations. It is capable of handling liquids up to 90 °C and operates efficiently at ambient temperatures up to 39 °C.
Featuring a 500 W motor, the pump operates with a low noise level of 39 dB. It supports a maximum vertical discharge of 7 meters and a horizontal discharge of 70 meters.
Figure 1.1: The HOMCOM Macerating Pump installed behind a toilet, illustrating its compact design and integration into a bathroom setting.
2. Safety Information
Please read all instructions carefully before installation and operation. Failure to follow these instructions may result in electric shock, fire, serious injury, or property damage.
- Ensure the power supply matches the voltage specified on the pump's rating label.
- Always disconnect the pump from the power supply before performing any maintenance or cleaning.
- Do not operate the pump if the power cord or plug is damaged.
- This appliance is not intended for use by persons (including children) with reduced physical, sensory, or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
- Do not pump flammable, corrosive, or explosive liquids.
- Ensure proper ventilation around the pump during operation.
- The pump must be installed in a dry, well-ventilated area, protected from frost.
- All electrical connections must be made by a qualified electrician and comply with local regulations.
3. Package Contents
Verify that all components are present and undamaged before proceeding with installation.
- HOMCOM Macerating Sanitary Waste Water Pump (Model: ESB50-0040731)
- Toilet connection (100 mm discharge)
- Water inlet pipes (32 mm and 40 mm)
- Outlet pipes (22 mm and 32 mm)
- Check valve
- Hose clamps and other necessary installation accessories
Figure 3.1: Overview of the macerating pump and all included accessories, including various pipe connectors and clamps.
4. Setup and Installation
This section provides general guidelines for installing your macerating pump. Professional installation by a qualified plumber is highly recommended.
4.1 Placement
- Position the pump as close as possible to the sanitary fixtures it will serve.
- Ensure there is sufficient space for maintenance and ventilation.
- The pump should be placed on a stable, level surface.
4.2 Connecting to Fixtures
The pump features 5 ports for various connections:
- Toilet Connection: Connect the 100 mm discharge from the toilet directly to the main inlet of the macerating pump.
- Water Inlets: Use the 32 mm and 40 mm inlet pipes for connecting to sinks, showers, or other wastewater sources.
- Outlet Pipes: Connect the 22 mm or 32 mm outlet pipes for discharging the macerated waste to the main drainage system. Ensure the check valve is installed in the outlet line to prevent backflow.
Figure 4.1: Front view of the macerating pump, highlighting the central inlet for toilet connection.
Figure 4.2: A detailed view of the main inlet, showing the rubber seal for secure connection to a toilet.
Figure 4.3: Top view of the pump, illustrating the multiple inlet and outlet ports for connecting different sanitary appliances.
4.3 Electrical Connection
Connect the pump to a grounded electrical outlet. Ensure the circuit is protected by a Residual Current Device (RCD) for safety.
4.4 Installation Video Guide
Video 4.1: An official HOMCOM video demonstrating the installation and connection process of the macerating pump with various sanitary fixtures.
5. Operation
Once properly installed and connected to the power supply, the HOMCOM Macerating Pump operates automatically. When wastewater enters the pump chamber, a float switch activates the motor, which then macerates the solids and pumps the liquid waste through the discharge pipe.
- Ensure all connections are secure and leak-free before first use.
- The pump is designed for intermittent use as wastewater is generated.
- Avoid flushing foreign objects (e.g., sanitary products, wet wipes, large food scraps) into the system, as this can cause blockages and damage to the macerator blades.
6. Maintenance
Regular maintenance ensures the longevity and efficient operation of your macerating pump.
6.1 Cleaning
- Monthly: Pour a specialized macerator cleaner or a mild descaling solution into the toilet bowl (if connected) or directly into an inlet. Allow it to sit for the recommended time before flushing or running water through the system to activate the pump.
- Annually: For a more thorough cleaning, disconnect the pump from the power supply and carefully remove the cover. Clean any accumulated debris from the macerator blades and pump chamber. This should ideally be done by a qualified technician.
6.2 Inspection
- Periodically check all pipe connections for leaks.
- Inspect the power cord for any signs of damage.
- Listen for unusual noises during operation, which could indicate a problem.
7. Troubleshooting
If you encounter issues with your macerating pump, refer to the following common problems and solutions:
| Problem | Possible Cause | Solution |
|---|---|---|
| Pump does not start | No power supply Float switch stuck Motor fault | Check power connection and circuit breaker Inspect and free the float switch Contact qualified technician |
| Pump runs continuously | Float switch stuck Leak in the system Check valve faulty | Inspect and free the float switch Check all connections for leaks Inspect or replace check valve |
| Poor discharge/Blockage | Foreign objects in macerator Discharge pipe blockage Insufficient water flow | Disconnect power, clear foreign objects (professional help recommended) Check discharge pipe for obstructions Ensure adequate water supply to fixtures |
| Excessive noise/Vibration | Foreign object in macerator Loose mounting Motor bearing wear | Disconnect power, clear foreign objects Secure pump mounting Contact qualified technician |
If the problem persists after attempting these solutions, please contact HOMCOM customer support or a qualified service technician.
8. Specifications
| Feature | Detail |
|---|---|
| Model Number | ESB50-0040731 |
| Power | 500 W |
| Noise Level | 39 dB |
| Max Vertical Discharge | 7 meters |
| Max Horizontal Discharge | 70 meters |
| Discharge Flow Rate | 100 l/min |
| Liquid Temperature Range | Up to 90 °C |
| Max Ambient Temperature | 39 °C |
| Waterproof Rating | IP44 |
| Total Dimensions (without toilet connection) | 40 x 18.5 x 28 cm |
| Total Dimensions (with toilet connection) | 40 x 18.3 x 28 cm |
| Product Weight | 6.9 kg |
| Material | Polypropylene |

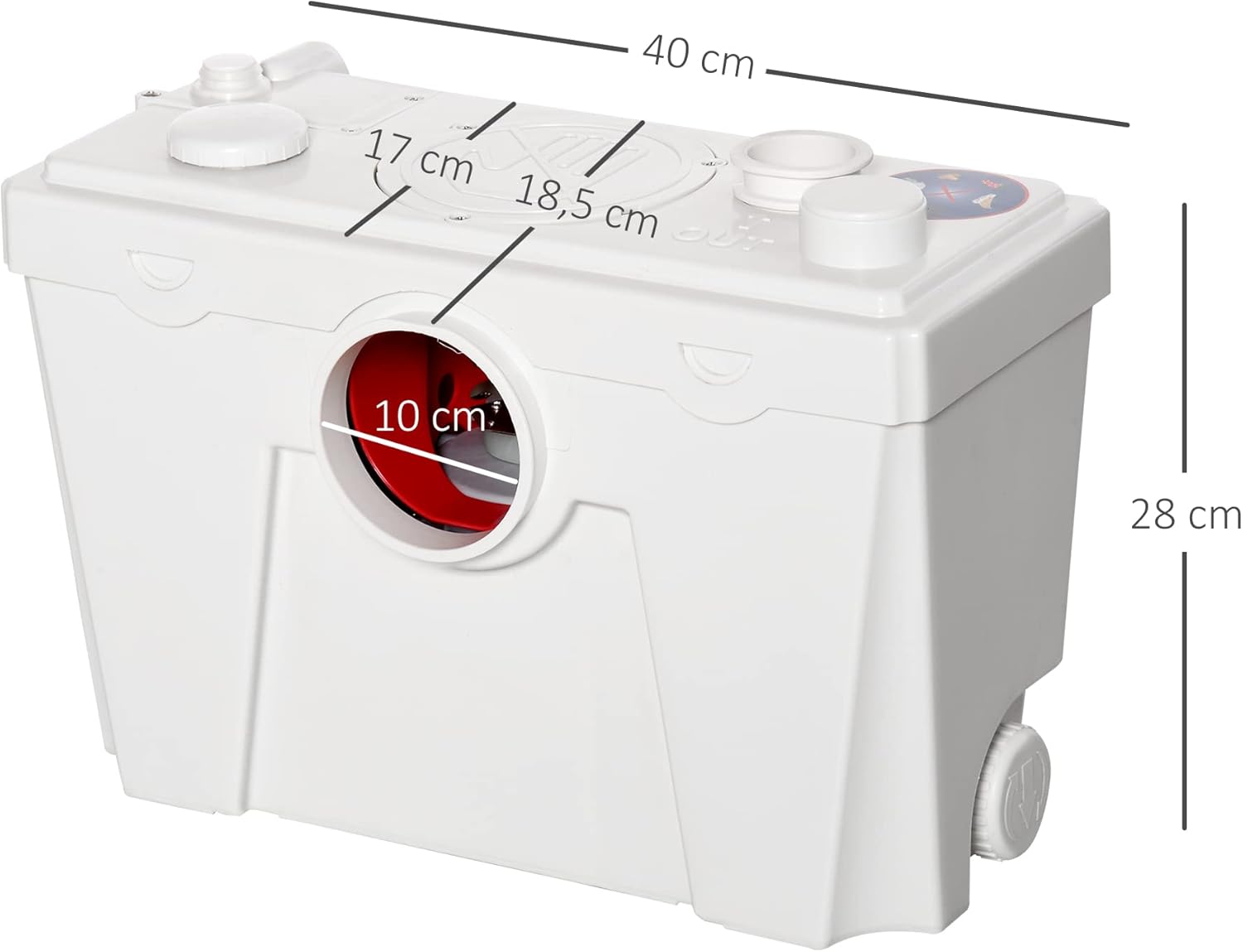

Figure 8.1: Dimensional drawing of the macerating pump, indicating key measurements for installation planning.
9. Warranty and Support
For warranty information, technical support, or service inquiries, please refer to the warranty card included with your product or visit the official HOMCOM website. Keep your purchase receipt as proof of purchase.
Manufacturer: Aosom
