KAPAS KPS35-735H2 Compact Automatic Washer and Spin Dryer User Manual

1. Introduction

Thank you for choosing the KAPAS KPS35-735H2 Compact Automatic Washer and Spin Dryer. This appliance is designed for efficient and convenient laundry care in smaller spaces. Please read this manual thoroughly before operating the machine to ensure proper use, maintenance, and safety.

This fully automatic 2-in-1 washer and spin dryer features an 8 lbs (3.5kg) capacity, a built-in pump for automatic water drainage, and a top-load design with a stainless steel tub. It includes a water-in pipe and a long drain hose for easy installation.

2. Product Overview

The KAPAS KPS35-735H2 is a compact and efficient laundry solution. Below are key components and features.

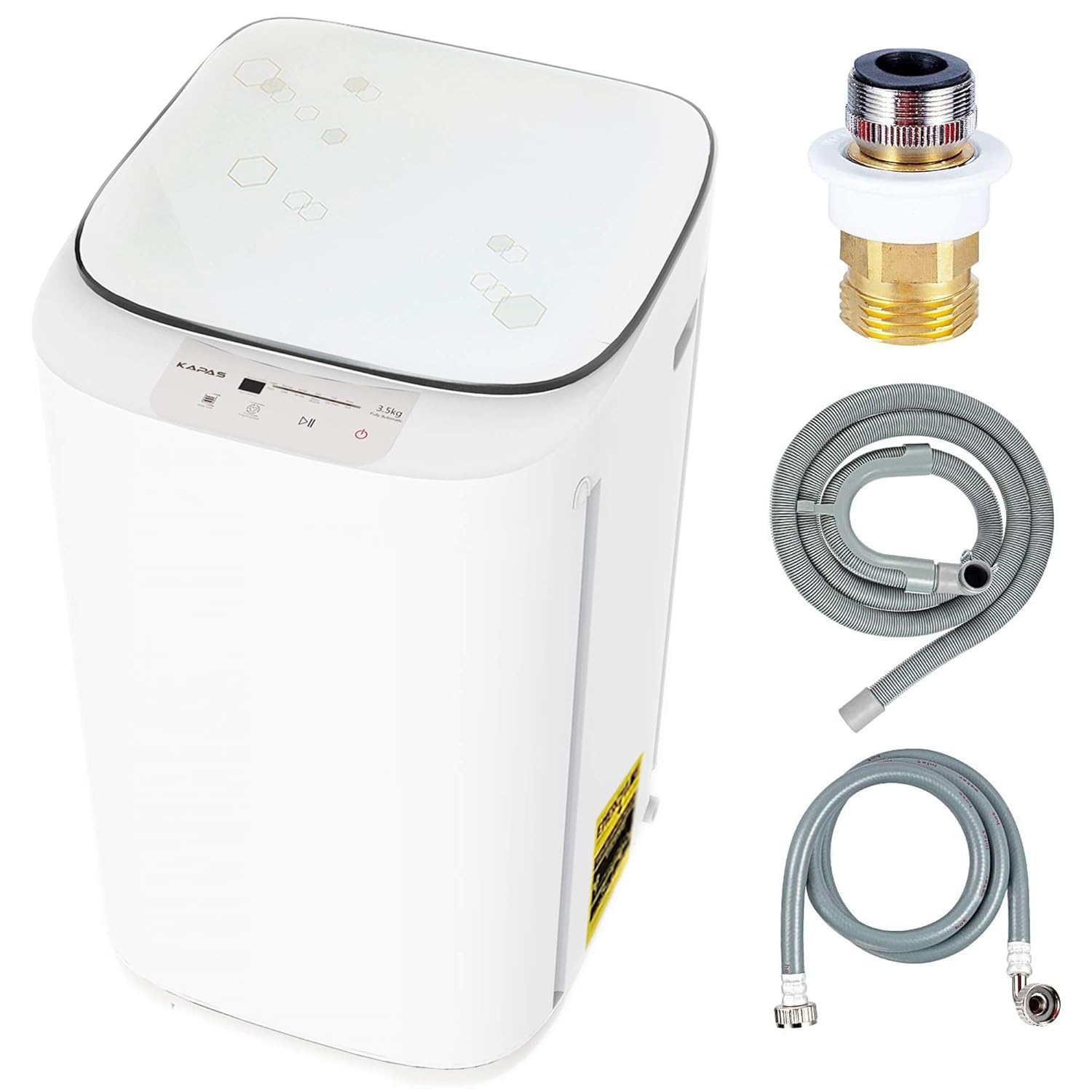

Figure 2.1: The KAPAS KPS35-735H2 washing machine shown with its included water inlet hose, drain hose, and a 3/4 screw thread connector.

Figure 2.2: Rear view of the washing machine detailing its dimensions (29.5 inches height, 16.5 inches width, 17.5 inches depth), handles for moving, export pipe for dryer and water out, 60-degree import water connector, and AC three-prong plug.

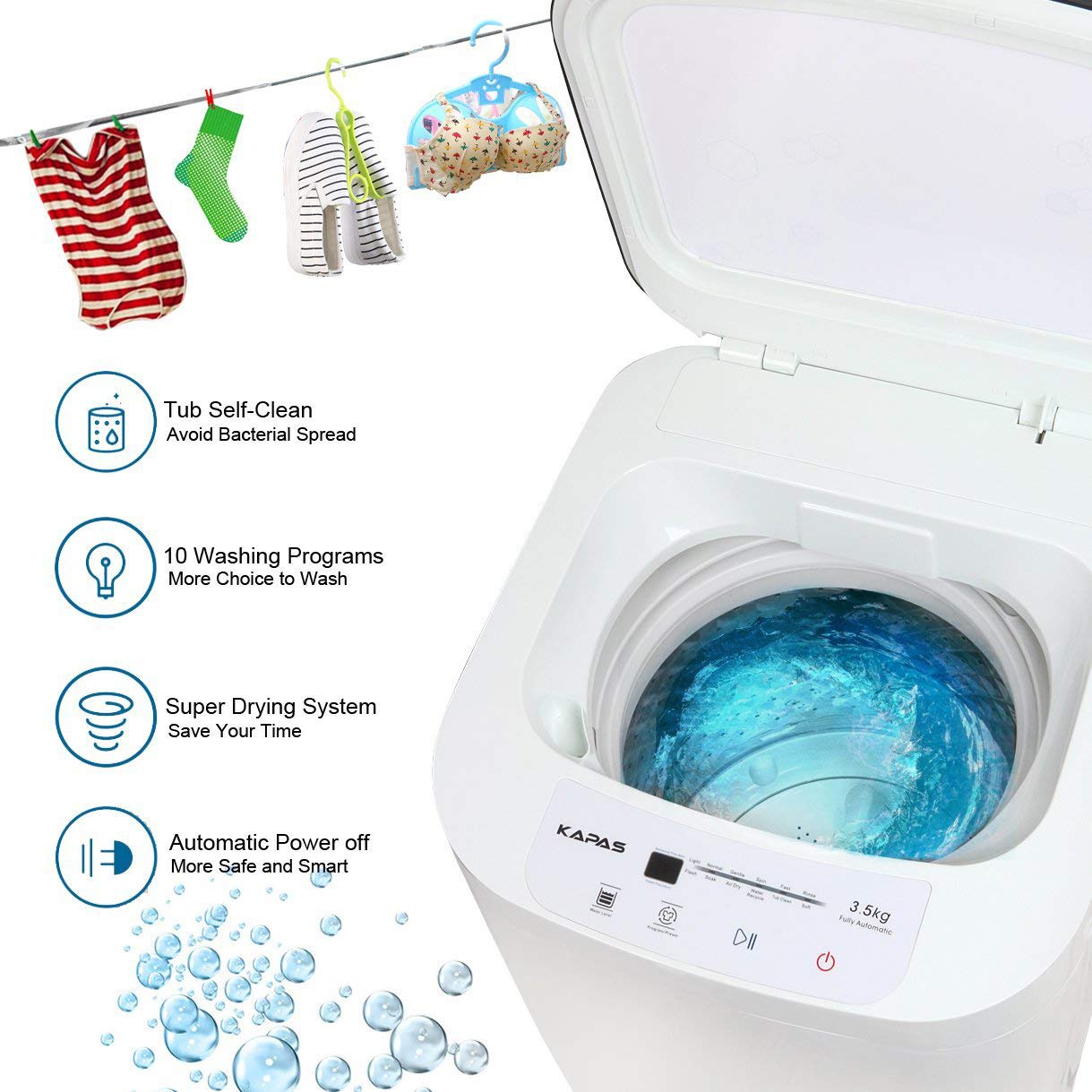

Figure 2.3: Top view showing the control panel and key features such as Tub Self-Clean, 10 Washing Programs, Super Drying System (air spin dry), and Automatic Power Off.

3. Setup

3.1 Unpacking

Carefully remove the washing machine from its packaging. Inspect for any damage during transit. Retain packaging materials for future transport if needed.

3.2 Placement

Place the washing machine on a firm, level surface. Ensure there is adequate space around the unit for ventilation and access. The machine's dimensions are approximately 29.5 x 16.5 x 17.5 inches (Height x Width x Depth).

Figure 3.1: Example placement of the compact washing machine in a small laundry area or bathroom.

3.3 Water Inlet Connection

1. Connect the provided water-in pipe to the 60-degree import water connector on the back of the washing machine (refer to Figure 2.2).
2. Connect the other end of the water-in pipe to a suitable water tap. The machine includes a 3/4 screw thread connector.
3. Important: A sink faucet adapter is not included. If your home's sink faucet requires an adapter, you must purchase one separately to ensure a proper connection. The washer cannot be filled manually; a water-in tube must be set up for automatic operation.

3.4 Drain Hose Connection

1. Attach the long drain hose to the export pipe connector on the back of the washing machine (refer to Figure 2.2).
2. Position the drain hose to direct water into a sink, bucket, bath, or toilet. The built-in pump allows the machine to drain water automatically to a maximum height of 29 inches.

3.5 Power Connection

Plug the AC power cord into a grounded electrical outlet. Ensure the voltage matches the machine's requirements (30 Volts, 45 Watts).

4. Operating Instructions

Follow these steps for effective use of your washing machine.

4.1 Loading Laundry

1. Open the top lid of the washing machine.
2. Load clothes into the stainless steel tub. Do not exceed the maximum capacity of 8 lbs (3.5kg). Overloading can affect washing performance and spin efficiency.
3. Close the lid securely.

4.2 Adding Detergent

Add the appropriate amount of laundry detergent directly into the tub with the clothes, following detergent manufacturer guidelines.

4.3 Selecting a Wash Program

The machine offers 8 wash programs and a water level controller. Refer to the control panel (Figure 2.3) to select your desired program.

Figure 4.1: Visual representation of various wash programs available, including Soak for easier washing, Normal for strong stain cleaning, Soft for delicate clothes, and Fast for quick cycles.

4.4 Starting the Wash Cycle

After selecting the program and setting the water level, press the Start button. The machine will automatically fill with water, wash, rinse, and spin.

4.5 Spin Drying

The machine features an air spin dry function. This is not a heating dryer. Clothes will be approximately 70%-80% dry after the spin cycle, not 100% dry. Further air drying or line drying will be required.

4.6 Automatic Power Off

For safety and energy efficiency, the machine automatically powers off approximately 10 minutes after the washing cycle is complete.

5. Maintenance

Regular maintenance ensures optimal performance and longevity of your washing machine.

5.1 Tub Self-Clean

Utilize the Tub Self-Clean program periodically to prevent bacterial spread and maintain hygiene within the washing tub.

5.2 Cleaning the Lint Filter

The machine includes a collection box (lint filter) to remove hair and other debris during washing.

Figure 5.1: The interior design of the tub, which helps protect clothes, and the removable collection box for lint and debris.

Regularly remove and clean the collection box to ensure efficient debris removal and prevent blockages.

5.3 Exterior Cleaning

Wipe the exterior of the machine with a soft, damp cloth. Avoid abrasive cleaners or solvents.

6. Troubleshooting

If you encounter issues with your washing machine, refer to the following common problems and solutions.

• Machine does not start:
  • Ensure the power cord is securely plugged into a working outlet.
  • Check if the lid is fully closed. The machine will not operate if the lid is open.
  • Verify that a wash program has been selected and the Start button has been pressed.
• Water not filling:
  • Confirm that the water tap is open and the water inlet hose is properly connected and not kinked.
  • Ensure the water supply to your home is active.
• Water not draining:
  • Check if the drain hose is properly positioned and not kinked or blocked.
  • Ensure the drain hose outlet is not higher than 29 inches, which is the maximum drainage height for the built-in pump.
  • Clean the lint filter (collection box) as it may be clogged.
• Excessive vibration or noise:
  • Ensure the machine is placed on a level and stable surface. Adjust leveling feet if necessary.
  • Verify that the laundry load is balanced inside the tub. Redistribute clothes if they are clumped on one side.
  • Do not overload the machine beyond its 8 lbs capacity.
• Clothes are too wet after spin cycle:
  • Remember that this machine features an air spin dry, which dries clothes to approximately 70%-80%, not 100%.
  • Ensure the machine is not overloaded.
  • Check for proper drainage during the spin cycle.

If problems persist after attempting these solutions, please contact customer support.

7. Specifications

Figure 7.1: Energy Guide label indicating estimated yearly energy cost and electricity use for the KAPAS KPS35-735H2 clothes washer.

8. Warranty and Support

8.1 Warranty Information

The KAPAS KPS35-735H2 washing machine comes with a 90-day Seller Warranty for free exchange. Additionally, a 1-Year Limited Warranty is provided for ship parts or limited exchange. The specific terms and conditions depend on communication with the seller and the status of the washer.

8.2 Customer Support

For any questions, technical assistance, or warranty claims, please contact the seller directly through your purchase platform. Provide your model number (KPS35-735H2) and purchase details for faster service.
