Micro Trader Glove Box Hinge Repair Kit for Audi A4, S4, RS4 (B6, B7, 8E)

1. Product Overview

This repair kit is designed to address common issues with broken or worn glove box lid hinges in select Audi A4, S4, and RS4 models. It provides replacement metal brackets and fasteners to restore the functionality of your vehicle's glove box.

Image 1.1: Complete Micro Trader Glove Box Hinge Repair Kit components.

The kit includes durable metal components engineered for a precise fit, ensuring a secure and lasting repair. It is crucial to verify the specific bracket shape required for your vehicle's glove box, as variations (Z-shape and L-shape) exist.

2. Package Contents

The Micro Trader Glove Box Hinge Repair Kit typically includes the following items:

• 2 x Metal Hinge Brackets (Black, Z-shape as shown in product images)
• 2 x Metal Hinge Pins (Silver)
• Multiple Mounting Screws (Black)

Image 2.1: Two Z-shaped metal hinge brackets included in the kit.

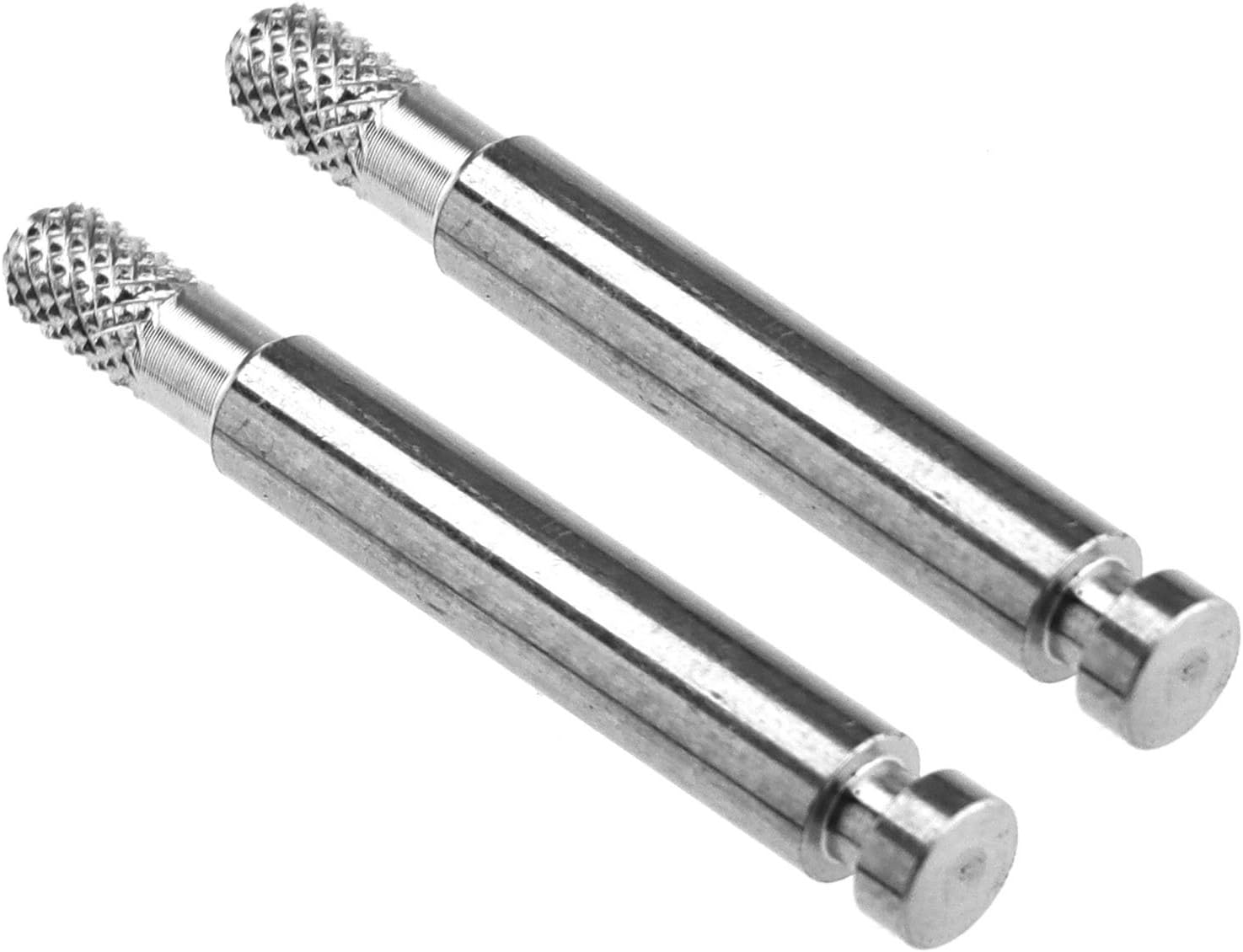

Image 2.2: Two metal hinge pins.

Image 2.3: Mounting screws for securing the brackets.

3. Compatibility

This repair kit is compatible with the following Audi models and years:

• Audi A4 B6 (2002 - 2005)
• Audi A4 B7 (2006 - 2008)
• Audi RS4 B7 (2006 - 2008)
• Audi S4 B6 (2003 - 2004)
• Audi S4 B7 (2004 - 2008)

Important Note: There are two different bracket modifications for these models: Z-shape and L-shape. The brackets included in this kit are primarily Z-shaped, as depicted in the product images. Please ensure that the Z-shape bracket is the correct type for your vehicle's glove box before proceeding with installation. Refer to your vehicle's existing hinge or service manual to confirm the required shape.

The OEM numbers associated with compatible glove box hinges include: 8E2857131, 8E2857035, 8E0880802, 8E2880324.

4. Installation Instructions

This section outlines the general steps for installing the glove box hinge repair kit. Professional installation is recommended if you are unfamiliar with automotive repairs. Always ensure the vehicle's ignition is off and the battery is disconnected if working near electrical components.

4.1. Preparation

1. Open the glove box lid.
2. Carefully remove any contents from the glove box.
3. Identify the broken or damaged hinge points on the glove box lid and the dashboard frame.
4. If necessary, remove the entire glove box assembly from the dashboard to facilitate easier access. Consult your vehicle's service manual for specific removal procedures.

4.2. Removing Old Hinges (if applicable)

• If remnants of the old hinges are present, carefully remove them. This may involve unscrewing old fasteners or prying off broken plastic pieces.
• Clean the mounting surfaces to ensure a proper fit for the new brackets.

4.3. Installing New Brackets

1. Position one of the new metal hinge brackets onto the glove box lid's hinge point. Ensure it aligns correctly with the existing holes or mounting points.
2. Secure the bracket using the provided screws. Do not overtighten.
3. Repeat the process for the second hinge bracket on the other side of the glove box lid.
4. Once both brackets are attached to the lid, align the glove box lid with the corresponding mounting points on the dashboard frame.
5. Insert the provided hinge pins through the aligned holes of the brackets and the dashboard frame.
6. Ensure the pins are fully seated and secure.

Image 4.1: Close-up of a single Z-shaped hinge bracket.

4.4. Testing and Reassembly

• Gently open and close the glove box lid several times to ensure smooth operation and proper alignment.
• If the glove box assembly was removed, reattach it to the dashboard according to your vehicle's service manual.
• Reconnect the vehicle battery if it was disconnected.

5. Troubleshooting

If you encounter issues during or after installation, consider the following troubleshooting steps:

• Brackets do not fit: As mentioned in the compatibility section, Audi models may use either Z-shape or L-shape brackets. This kit provides Z-shaped brackets. If your vehicle requires L-shaped brackets, this kit will not be compatible. Double-check your vehicle's original hinge type before purchase and installation.
• Glove box does not close properly:
  • Ensure all screws are tightened securely but not overtightened, which could warp the plastic.
  • Verify that the hinge pins are fully inserted and seated correctly.
  • Check for any obstructions preventing the lid from closing.
  • Confirm that the brackets are aligned properly with the glove box lid and dashboard mounting points.
• Screws strip or break: Use appropriate tools and apply steady, even pressure when tightening screws. Avoid excessive force. If a screw strips, you may need to use a slightly larger screw or a thread repair kit.

If problems persist, it is advisable to consult a qualified automotive technician or contact the product seller for further assistance.
