ODL Clear Door Glass Frame Kit - 10" x 8"

Product Overview

This ODL Clear Door Glass Frame Kit is designed to replace existing glass or add a glass panel to a compatible exterior door. It includes one insulated glass panel, one inner and one outer high-performance molded plastic frame, a pack of specially designed screws, and screw covers. The outer frame features a factory-applied, air and water-tight seal that bonds to the glass, ensuring durability and energy efficiency.

Key Features:

• Enhanced Door Lifespan: Replace broken or outdated door glass to extend the life of your door without full replacement.
• Complete Kit: Includes double-pane tempered safety glass, a durable plastic frame set (interior and exterior), and screw hole covers.
• Easy Installation: Designed for straightforward replacement, typically taking under an hour with common tools. Two people are recommended for installation.
• Dimensions: Replaces existing door glass panels with outer frame dimensions of 10" x 8" (± 0.25") and a door thickness of 1-3/4". Suitable for single top light 6'8" or 8'0" doors.
• Quality Assurance: Units undergo 100% quality inspection and come with a 20-year warranty on the glass seal.

Important Safety Information

Always prioritize safety during installation. Wear appropriate personal protective equipment, including safety glasses and safety gloves, to protect against potential glass shards or other hazards.

When handling glass, especially broken glass, proceed with extreme caution. It is highly recommended to have a second person assist with the removal and installation of the glass panel to prevent injury and damage to the new unit.

If the existing glass is broken but still intact, apply duct tape or packing tape across the entire broken surface to laminate it. This helps prevent glass chips from falling out during the removal process.

Tools Required

• Utility Knife with a sharp blade
• Phillips Head Screwdriver or Power Drill
• Safety Glasses
• Safety Gloves
• Putty Knife (for adhesive removal)
• Duct Tape or Packing Tape (if replacing broken glass)
• Window Cleaner and Cloth

Installation Instructions

Preparation:

1. Gather Tools and Assistance: Ensure all required tools are at hand. It is highly recommended to have a second person assist with this project.
2. Safety First: Put on safety glasses and gloves.
3. Laminate Broken Glass (if applicable): If your existing glass is broken but still in place, apply duct tape or packing tape across the entire broken surface. This helps contain glass fragments during removal.

Step 1: Remove Screw Covers

Carefully remove the screw covers from the internal frame of the existing door glass. A small flat-head screwdriver or a drywall screw can be used to gently pry them out.

Step 2: Remove Internal Frame Screws

Using a Phillips head screwdriver or a power drill, remove all screws securing the internal frame. During this step, have your partner stand on the outside of the door to support the exterior glass panel, especially if the old adhesive is weak.

Step 3: Loosen Old Adhesive

Use a utility knife to score along the paint line where the frame meets the door. This helps to loosen any old adhesive or paint that might be holding the frame in place.

Step 4: Remove Existing Door Glass

With your partner supporting the exterior panel, carefully push the existing door glass out from the inside. If the adhesive has been sufficiently loosened, it should push out easily.

Step 5: Clean the Opening

Once the old glass is removed, use your utility knife or a putty knife to scrape away any remaining adhesive or debris from the door opening. This ensures a clean surface for the new glass to bond to.

Step 6: Install New Door Glass

With the help of your partner, guide the new door glass panel into the opening from the outside. Ensure it is centered and seated correctly.

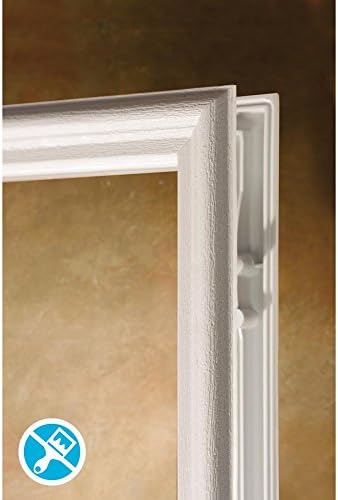

Image: Components of the ODL Clear Door Glass Frame Kit, showing the glass panel and frame pieces.

Image: A cross-section diagram illustrating the double-pane insulated glass construction.

Step 7: Secure Internal Frame

Install the inside frame using the provided screws. Use the lowest setting on your drill clutch and hand-tighten to finish, being careful not to over-tighten the screws, which could damage the frame or glass.

Step 8: Install Screw Covers

Snap the screw covers into place over the screw heads on the internal frame.

Step 9: Final Cleaning

Clean your new door glass using your favorite window cleaner and a soft cloth for a clear, streak-free finish.

Measurement Guide:

Refer to the diagram below for proper measurement guidance when replacing or adding glass to your door.

Image: A diagram showing how to measure for replacing existing glass (measure outside edges of frame) and adding glass (measure panel embossments).

Instructional Video:

Maintenance

To maintain the clarity and appearance of your ODL Clear Door Glass, clean it regularly with a standard window cleaner and a soft, lint-free cloth. Avoid abrasive cleaners or tools that could scratch the glass or frame. Periodically inspect the frame and seal for any signs of wear or damage to ensure continued energy efficiency and weather protection.

Troubleshooting

• Hazy Appearance or Moisture Inside Glass: This indicates a seal failure in the insulated glass unit. The entire glass panel will need to be replaced. Refer to the installation instructions for replacement.
• Loose Frame: If the internal frame becomes loose, gently re-tighten the screws. Do not over-tighten. If screws are stripped, contact customer support for guidance.
• Drafts or Leaks: Check the seal around the exterior frame. Ensure it is properly bonded to the glass and the door. If the seal is compromised, it may require resealing or replacement of the glass unit.

Specifications

Warranty Information

The ODL Clear Door Glass Frame Kit comes with a 20-year warranty on the glass seal, ensuring long-term performance and peace of mind. For detailed warranty terms and conditions, please refer to the official ODL or Zabitat documentation or contact customer support.

Customer Support

For further assistance, technical support, or to inquire about replacement parts, please visit the official Zabitat US Store on Amazon or the ODL website. You can also refer to the contact information provided in your product packaging.
