Kingjoy BT258 Aluminum Tripod with Ball Head User Manual

1. Introduction

The Kingjoy BT258 tripod kit is a versatile tool designed for photographers, offering multiple functionalities in one compact unit. It serves as a stable tripod, a macro tripod, and a monopod. Key features include a reversible center column for reprostat applications, an automatic leg locking system, and a high-quality QE0 ball head with a quick-release plate. This manual provides comprehensive instructions for the proper setup, operation, and maintenance of your Kingjoy BT258 tripod to ensure optimal performance and longevity.

2. Product Overview and Components

Familiarize yourself with the main components of your Kingjoy BT258 tripod.

Figure 1: Overview of the Kingjoy BT258 Tripod with key features labeled. This image highlights the multi-directional spirit levels on the ball head, the single locking knob for the ball head, the three-level leg angle design, the quick locking knob for the center column, the spring hook for counterweight, and the flip lever leg locking system.

• Ball Head: Features a 33mm ball, quick portrait orientation, friction adjustment, and 360° panoramic capability.
• Quick Release Plate: Standard ¼" screw for camera attachment.
• Center Column: Reversible for macro photography and reprostat use.
• Leg Segments: Three segments with clip locks for height adjustment.
• Leg Angle Adjusters: Allow setting legs at three different angles.
• Monopod Leg: One detachable leg that combines with the center column to form a monopod.
• Spirit Levels: Integrated for precise leveling.
• Counterweight Hook: Located at the bottom of the center column for added stability.

3. Setup and Assembly

3.1 Unpacking and Initial Inspection

Carefully remove all components from the packaging. Inspect for any signs of damage. Ensure all parts listed in the product overview are present.

3.2 Attaching the Ball Head

The ball head is typically pre-attached. If not, screw the ball head onto the 3/8" threaded stud at the top of the center column until secure. Do not overtighten.

Figure 2: The QE0 ball head with its quick release plate and integrated spirit levels. This image shows the main locking knob and the panoramic base.

3.3 Extending the Tripod Legs

1. Unfold the tripod legs from their collapsed position.
2. To extend a leg segment, open the flip lever leg lock. Pull the segment to the desired length.
3. Close the flip lever leg lock firmly to secure the segment. Repeat for all segments on all three legs.
4. Adjust the leg angles by pressing the leg angle adjusters at the top of each leg and moving the leg to one of the three available positions.

Figure 3: Detail of the flip lever leg locking system, used to extend and secure the tripod leg segments.

Figure 4: The Kingjoy BT258 Tripod demonstrating its compact folded state, partially extended state, and fully extended state, illustrating its portability and adjustable height.

3.4 Attaching Your Camera

1. Remove the quick-release plate from the ball head by loosening its locking knob and sliding it out.
2. Screw the quick-release plate onto the bottom of your camera using the ¼" screw. Ensure it is tightened securely.
3. Slide the camera with the attached quick-release plate back into the ball head receiver.
4. Tighten the quick-release plate locking knob to secure the camera firmly in place.

4. Operating the Tripod

4.1 Adjusting Height and Stability

• Leg Height: Adjust individual leg segments using the flip lever locks (as described in 3.3) to achieve the desired height and level the tripod.
• Center Column: Loosen the quick locking knob for the center column. Raise or lower the column to fine-tune the height. Tighten the knob firmly once adjusted.
• Counterweight Hook: For increased stability, especially in windy conditions or with heavy equipment, hang a weight (e.g., camera bag) from the spring hook located at the bottom of the center column.

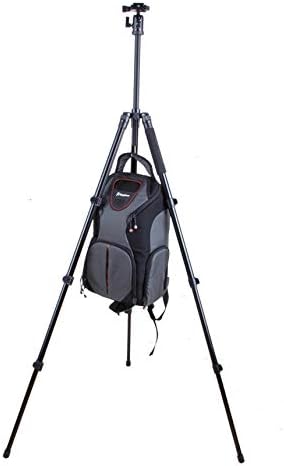

Figure 5: The tripod demonstrating the use of the counterweight hook, with a backpack attached to enhance stability.

4.2 Using the Ball Head

• Main Locking Knob: Loosen this knob to allow the ball to move freely, enabling you to adjust your camera's angle (tilt and pan). Tighten it to lock the camera in position.
• Friction Adjustment: The ball head features a friction control knob (often integrated with the main locking knob or a separate smaller knob). Adjust this to control the resistance of the ball movement, preventing sudden drops of your camera.
• Panoramic Base: Loosen the panoramic locking knob (usually at the base of the ball head) to rotate the camera horizontally 360° without affecting the tilt. Tighten to lock.
• Spirit Levels: Use the integrated multi-directional spirit levels on the ball head to ensure your camera is perfectly level for accurate shots.

4.3 Monopod Conversion

1. Identify the tripod leg with the rubberized grip. This leg is detachable.
2. Unscrew this leg from the tripod chassis.
3. Unscrew the center column from the tripod chassis.
4. Screw the detachable leg onto the bottom of the center column.
5. Your monopod is now assembled. Attach your camera to the ball head on the center column as usual.

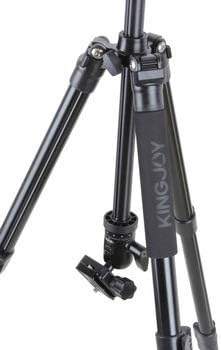

Figure 6: The detachable leg of the Kingjoy BT258 tripod, which can be combined with the center column to form a monopod.

4.4 Reprostat Function / Low Angle Shooting

• To achieve extremely low angles or for reprostat photography (copying documents/artwork from above), the center column can be reversed.
• Loosen the center column locking knob and fully remove the center column.
• Invert the center column and reinsert it into the tripod chassis from below, so the ball head is positioned between the legs.
• Tighten the center column locking knob securely. This allows for macro shots from a "frog's perspective" or overhead shots.

5. Maintenance

Proper maintenance ensures the longevity and reliable performance of your tripod.

• Cleaning: Wipe down the tripod with a soft, damp cloth after use, especially if exposed to dirt, sand, or saltwater. Avoid harsh chemicals.
• Lubrication: Periodically check leg locks and moving parts. If they become stiff, apply a small amount of silicone-based lubricant. Do not use oil-based lubricants as they can attract dust.
• Storage: Store the tripod in a dry, clean environment, preferably in its carrying bag, to protect it from dust and moisture.
• Inspection: Regularly inspect all screws, knobs, and leg locks for tightness. Tighten any loose components.

6. Troubleshooting

7. Specifications

8. Warranty and Support

Information regarding product warranty and customer support was not available in the provided product data. Please refer to the manufacturer's official website or your point of purchase for details on warranty coverage and support options.
