K&N 85-5192 Anodized Steel Clip Instruction Manual
Model: KN85-5192 | Brand: K&N
1. Introduction
This instruction manual provides essential information for the proper use and maintenance of your K&N 85-5192 Anodized Steel Clip. Please read this manual thoroughly before installation and use to ensure optimal performance and safety.
2. Safety Information
Always observe the following safety precautions:
- Ensure the clip is securely fastened to prevent dislodgement during operation.
- Wear appropriate personal protective equipment (PPE) such as gloves and eye protection during installation.
- Keep out of reach of children.
- Do not modify the clip in any way, as this may compromise its integrity and function.
3. Product Overview
The K&N 85-5192 is an anodized steel clip designed for securing components, typically K&N air filters, in automotive or motorcycle applications. Its robust construction ensures a secure fit and long-lasting performance.

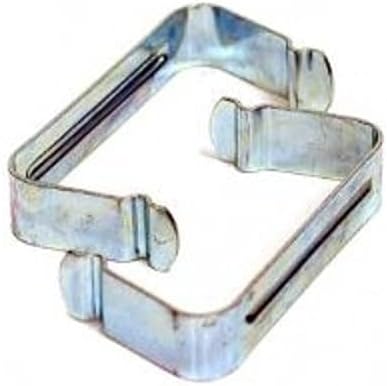

Figure 3.1: The K&N 85-5192 Anodized Steel Clip. This image shows the U-shaped metal clip, designed for secure fastening.
Figure 3.2: K&N 85-5192 Clip held in hand, illustrating its compact size and approximate dimensions (1.4 inches / 3 cm height).
4. Setup and Installation
The K&N 85-5192 clip is designed for straightforward installation. No complex assembly is required.
- Identify the mounting points: Locate the designated slots or grooves on the component (e.g., air filter housing) where the clip is to be attached.
- Position the clip: Align the ends of the clip with the mounting points.
- Secure the clip: Apply firm, even pressure to snap the clip into place. Ensure both ends are fully engaged and the clip sits flush against the component.
- Verify security: Gently tug on the clip to confirm it is securely fastened and does not wobble.
5. Operation
Once installed, the K&N 85-5192 clip functions passively by securely holding components together. No active operation is required from the user after installation.
6. Maintenance
The K&N 85-5192 anodized steel clip requires minimal maintenance.
- Regular Inspection: Periodically inspect the clip for any signs of wear, corrosion, or deformation.
- Cleaning: If necessary, wipe the clip with a clean, damp cloth to remove dirt or debris. Avoid abrasive cleaners.
- Replacement: If the clip shows signs of damage or no longer provides a secure fit, replace it immediately with a genuine K&N 85-5192 clip.
7. Troubleshooting
| Issue | Possible Cause | Solution |
|---|---|---|
| Clip does not fit or is loose. | Incorrect clip size or damaged clip/mounting point. | Ensure you have the correct K&N 85-5192 clip for your application. Inspect the clip and mounting points for damage. Replace if necessary. |
| Clip is difficult to install. | Misalignment or burrs on mounting points. | Verify proper alignment. Check for any obstructions or burrs on the mounting surface and carefully remove them if present. |
8. Specifications
| Attribute | Value |
|---|---|
| Model Number | KN85-5192 |
| Manufacturer | K&N |
| Material | Anodized Steel |
| Product Dimensions | 7.8 x 7.8 x 7.8 cm (approx. 3.07 x 3.07 x 3.07 inches) |
| Item Weight | 40 grams (approx. 1.41 ounces) |
| Assembly Required | No |
9. Warranty Information
Specific warranty details for the K&N 85-5192 clip are typically provided with the product packaging or can be found on the official K&N website. K&N products are known for their quality and durability. For detailed warranty terms and conditions, please refer to the manufacturer's official documentation or website.
10. Customer Support
For technical assistance, product inquiries, or support, please contact K&N customer service through their official channels. Visit the official K&N website for contact information, FAQs, and additional resources.
Official K&N Website: www.knfilters.com
