Himoto NASCADA PRO 1/10 Brushless RC Car Instruction Manual

1. Introduction

Thank you for purchasing the Himoto NASCADA PRO 1/10 Brushless RC Car. This manual provides essential information for the proper setup, operation, and maintenance of your model. Please read this manual thoroughly before operating the vehicle to ensure safe and optimal performance. Keep this manual for future reference.

Image 1.1: The Himoto NASCADA PRO 1/10 Brushless RC Car, showcasing its sleek design with a green and black body shell.

2. Safety Information

Operating a remote-controlled vehicle requires caution and responsibility. Failure to operate this product in a safe manner may result in injury or damage to the product or property.

• Always operate your RC car in open areas away from people, pets, and obstacles.
• Never operate near public roads, water, or in crowded areas.
• Keep hands, hair, and loose clothing away from moving parts.
• Do not touch the motor or Electronic Speed Controller (ESC) immediately after use, as they can become very hot.
• Always disconnect the battery from the vehicle when not in use and before performing maintenance.
• Use only the specified LiPo battery and charger. Improper charging or handling of LiPo batteries can lead to fire or explosion.
• Store LiPo batteries in a fire-safe container and never leave them unattended while charging.
• Adult supervision is recommended for users under 14 years of age.

3. Package Contents

The Himoto NASCADA PRO package typically includes the following items:

• Himoto NASCADA PRO 1/10 Brushless RC Car (with chosen body shell)
• Rocket Brushless Electric Motor (pre-installed)
• 60A Electronic Speed Controller (ESC) (pre-installed)
• 2700 mAh 7.4V LiPo Battery
• LiPo Battery Charger
• 2.4 GHz Radio Transmitter
• 2.4 GHz Receiver (pre-installed in vehicle)
• Instruction Manual (this document)

Note: Transmitter batteries (e.g., AA batteries) are typically not included and must be purchased separately.

4. Vehicle Overview

Familiarize yourself with the main components of your Himoto NASCADA PRO RC car.

Image 4.1: Top-down view of the Himoto NASCADA PRO chassis, showing the brushless motor, ESC, receiver, and LiPo battery installed.

• Chassis: The main frame of the vehicle, constructed from metal.
• Brushless Motor: Provides powerful propulsion.
• Electronic Speed Controller (ESC): Regulates motor speed and power.
• Steering Servo: Controls the front wheels for steering.
• Receiver: Receives signals from the transmitter.
• LiPo Battery: Powers the vehicle's electronics and motor.
• Suspension: Absorbs shocks and maintains tire contact with the surface.
• Sponge Wheels: Provide grip for on-road performance.

5. Setup

5.1 Charging the LiPo Battery

1. Connect the LiPo charger to a suitable power outlet.
2. Connect the LiPo battery to the charger. Ensure correct polarity.
3. Monitor the charging process. Never leave a LiPo battery charging unattended.
4. Once fully charged (indicated by the charger), disconnect the battery.

Warning: Always use the provided LiPo charger or a compatible LiPo-specific charger. Do not overcharge or discharge LiPo batteries.

5.2 Installing Transmitter Batteries

1. Open the battery compartment on the back of the 2.4 GHz radio transmitter.
2. Insert the required number of AA batteries (typically 4) according to the polarity markings.
3. Close the battery compartment securely.

5.3 Body Shell Installation/Removal

The body shell is secured by body clips. To remove:

1. Gently pull out the four body clips located on the body posts.
2. Lift the body shell off the chassis.

To install, align the body shell over the posts and reinsert the body clips.

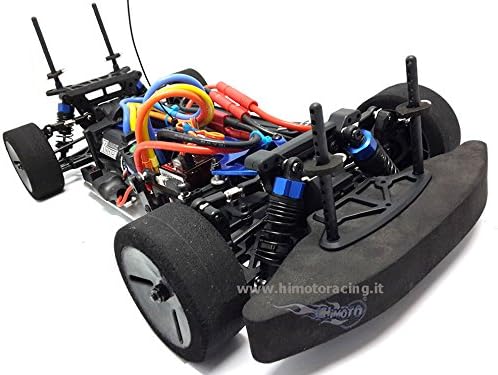

Image 5.3: Front view of the Himoto NASCADA PRO chassis, showing the body posts where the body clips attach.

6. Operating Instructions

6.1 Powering On/Off

1. Ensure the vehicle's LiPo battery is fully charged and securely connected to the ESC.
2. Turn on the radio transmitter first.
3. Turn on the vehicle's power switch (usually located on the ESC or receiver box).
4. To power off, turn off the vehicle's power switch first, then turn off the transmitter.

6.2 Basic Controls

• Steering Wheel (Transmitter): Turn left or right to steer the vehicle.
• Throttle Trigger (Transmitter):
  • Pull back to accelerate forward.
  • Push forward to brake, then push again for reverse.

6.3 Driving Tips

• Start with slow, gentle throttle inputs to get a feel for the vehicle's response.
• Practice steering in wide turns before attempting tighter maneuvers.
• Avoid driving on wet surfaces or through puddles, as this can damage electronics.
• Regularly check battery levels to avoid sudden power loss during operation.

7. Maintenance

Regular maintenance will prolong the life and performance of your Himoto NASCADA PRO.

7.1 Cleaning

• After each use, remove the body shell and clean dirt and debris from the chassis, suspension, and motor.
• Use a soft brush, compressed air, or a damp cloth. Avoid using water directly on electronics.

7.2 Inspections

• Check all screws and fasteners for tightness.
• Inspect the wheels and tires for damage or wear.
• Examine suspension components (shocks, arms) for bends or breaks.
• Ensure all electrical connections are secure and free from corrosion.

Image 7.2: Rear view of the Himoto NASCADA PRO chassis, highlighting the rear suspension and drive components for inspection.

7.3 Battery Care

• Always store LiPo batteries at a 'storage charge' level (around 3.8V per cell) if not used for extended periods.
• Never fully discharge a LiPo battery.
• Inspect batteries for swelling or damage before each use. Discontinue use immediately if damaged.

8. Troubleshooting

Here are some common issues and their potential solutions:

9. Specifications

10. Warranty and Support

For warranty information, technical support, or spare parts, please contact your retailer or the manufacturer directly. Keep your proof of purchase for any warranty claims.

Manufacturer: HIMOTO
