Introduction
This manual provides essential instructions for the proper setup, operation, and maintenance of your Lorus Men's Watch, model RM393DX9. Please read this manual thoroughly to ensure optimal performance and longevity of your timepiece.
The Lorus RM393DX9 is a men's analog watch featuring a black dial, chronograph functions, and a black leather strap. It is designed for daily wear and offers water resistance up to 100 meters.
Product Overview
Familiarize yourself with the main components of your Lorus RM393DX9 watch.

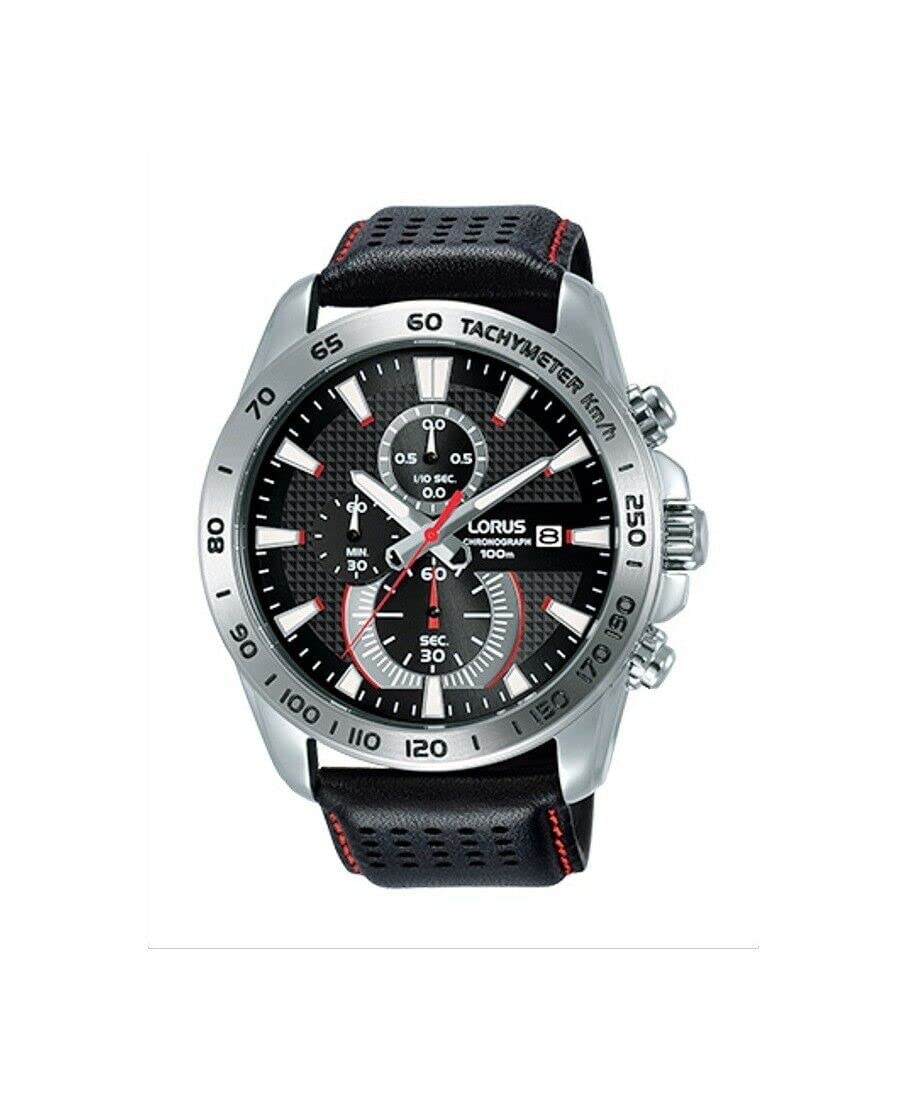

Figure 1: Front view of the Lorus RM393DX9 watch, showing the black dial, hands, and chronograph sub-dials.
Figure 2: Side view of the Lorus RM393DX9 watch, highlighting the crown and chronograph pushers.
Figure 3: Back view of the Lorus RM393DX9 watch, showing the black leather strap with red stitching and the buckle clasp.
Setup
Setting the Time
- Pull the crown out to the second click position.
- Rotate the crown to set the hour and minute hands to the correct time.
- Push the crown back into the normal position.
Adjusting the Strap
The watch features a leather strap with a tang buckle. To adjust the fit, simply insert the tang into the desired hole on the strap. Ensure the watch is snug but comfortable on your wrist.
Operating the Watch
Timekeeping
Your Lorus RM393DX9 watch is a quartz analog timepiece, providing accurate time display with hour, minute, and second hands.
Using the Chronograph
The chronograph function allows for measuring elapsed time. The watch features two pushers on the side, typically located above and below the crown.
- Start/Stop: Press the upper pusher to start the chronograph. Press it again to stop.
- Reset: While the chronograph is stopped, press the lower pusher to reset all chronograph hands to their zero positions.
Note: Refer to the specific movement instructions for detailed chronograph operation if sub-dials have different functions (e.g., 24-hour display, minute counter).
Maintenance
Water Resistance (100 Meters)
Your watch is water-resistant up to 100 meters (10 ATM). This means it is suitable for swimming and snorkeling, but not for diving. Do not operate the crown or pushers while the watch is wet or submerged, as this can compromise the water resistance.
- Avoid exposing the watch to hot water, steam, or sudden temperature changes, which can affect seals.
- After exposure to saltwater, rinse the watch with fresh water and dry it thoroughly.
Cleaning
Wipe the watch case and crystal with a soft, dry cloth. For the leather strap, avoid prolonged exposure to water and harsh chemicals. Clean with a damp cloth and mild soap if necessary, then dry thoroughly.
Battery Replacement
The watch is powered by a quartz movement with a battery. When the watch stops or the second hand moves erratically (e.g., jumps every two seconds), it indicates a low battery. Battery replacement should be performed by a qualified watch technician to ensure proper sealing and water resistance.
Troubleshooting
| Problem | Possible Cause | Solution |
|---|---|---|
| Watch has stopped or runs intermittently. | Low battery. | Replace the battery. Contact a qualified watch technician. |
| Time is incorrect. | Time not set correctly; crown pulled out. | Set the time as described in the "Setting the Time" section. Ensure the crown is pushed in completely. |
| Water inside the watch. | Crown/pushers operated underwater; seals compromised. | Immediately take the watch to a service center. Do not attempt to dry it yourself. |
Specifications
- Brand: Lorus
- Model Number: RM393DX9
- Movement: Quartz
- Display Type: Analog with hands, Chronograph
- Case Shape: Round
- Case Diameter: 45 mm
- Case Thickness: 11.00 mm
- Strap Material: Leather
- Strap Width: 20 mm
- Strap Color: Black
- Dial Color: Black
- Clasp Type: Tang Buckle
- Water Resistance: 100 meters (10 ATM)
- Power Source: Battery
- Target Audience: Men
Warranty Information
Your Lorus watch is covered by a limited warranty against manufacturing defects. The warranty period typically begins from the date of purchase. Please retain your proof of purchase for warranty claims.
The warranty does not cover:
- Damage resulting from improper handling, lack of care, accidents, or normal wear and tear.
- Water damage if the watch was opened, or if the crown/pushers were operated underwater.
- Battery replacement.
- Damage to the strap or crystal.
For specific warranty terms and conditions, please refer to the warranty card included with your watch or visit the official Lorus website.
Support
If you require further assistance, service, or have questions not covered in this manual, please contact Lorus customer support or an authorized service center.
For contact information, please visit the official Lorus website or refer to the documentation provided with your purchase.
