1. Introduction
This manual provides essential information for the safe and effective use of your Mi-T-M 16-0445 Pressure Washer Gun. Please read these instructions thoroughly before operation to ensure proper setup, usage, and maintenance. Retain this manual for future reference.

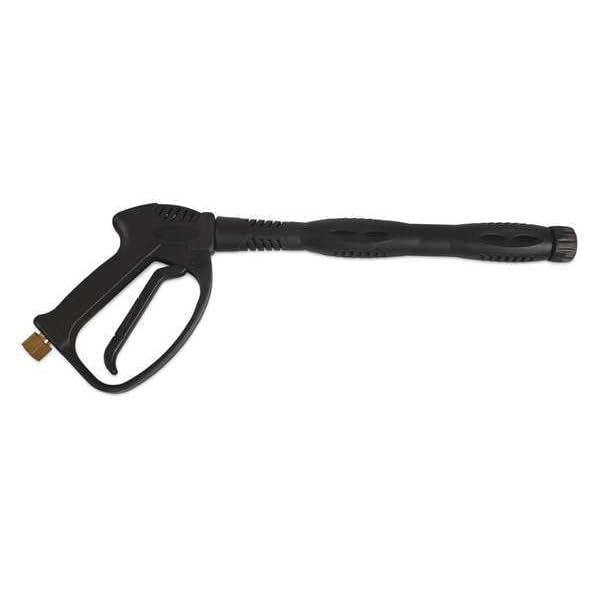

Figure 1: Mi-T-M 16-0445 Pressure Washer Gun. This image displays the black Zytel shell gun, featuring its ergonomic handle, trigger mechanism, and the brass 3/8 NPT F connection point at the base of the handle, designed for high-pressure applications.
2. Product Overview
The Mi-T-M 16-0445 is a durable pressure washer gun featuring a 3/8 NPT F Zytel Shell. It is designed for use with various Mi-T-M pressure washer models and Grainger item numbers, ensuring compatibility and reliable performance in demanding cleaning tasks.
This gun is compatible with the following Mi-T-M manufacturer model numbers:
- GC-1002-0ME1, GC-1250-0MEH, GC-1400-0MEH, GC-1502-0ME1
- GC-2003-0ME1, GC-2503-0ME1, GC-3004-0ME1
- GH-0703-LS10, GH-1502-LM10
- GPH-2000-0M1I, GPH-2000-0M1R, GPH-2500-0M1I, GPH-2500-0M1R
It is also suitable for use with Grainger Item Numbers: 3WB86, 3WB79, 1TDK4, 3WB87, 3WE20, 3WB88, 3WB89, 3WB92, 3WB91, 4ZZ99, 3NXE3, 3WE18, 3NXE4.
3. Setup
Before connecting the gun, ensure your pressure washer unit is turned off and depressurized. Always wear appropriate personal protective equipment (PPE), including safety glasses, before beginning setup.
- Inspect Components: Verify that the gun and all connecting hoses are free from damage, cracks, or blockages.
- Connect High-Pressure Hose: Attach the high-pressure hose from your pressure washer to the 3/8 NPT F inlet on the Mi-T-M 16-0445 gun. Ensure the connection is secure and hand-tightened, then use a wrench to tighten an additional quarter turn if necessary, being careful not to overtighten.
- Attach Nozzle/Wand (if applicable): If your setup requires a separate wand or nozzle, connect it to the outlet of the gun. Ensure it is firmly seated and locked into place to prevent accidental detachment during operation.
- Check for Leaks: Once all connections are made, slowly turn on the water supply to the pressure washer and check for any leaks at the connection points. Address any leaks before proceeding.
4. Operating Instructions
Operating the Mi-T-M 16-0445 gun requires adherence to safety guidelines and proper technique to achieve effective cleaning and prevent injury.
Safety Precautions:
- Never point the gun at people, pets, or electrical outlets.
- Always maintain a firm grip on the gun during operation.
- Ensure adequate ventilation if operating indoors or in confined spaces.
- Do not operate the gun if you are fatigued or under the influence of drugs or alcohol.
- Keep children and bystanders away from the operating area.
Operation Steps:
- Start Pressure Washer: Follow your pressure washer's manufacturer instructions to start the unit.
- Engage Trigger: Aim the gun at the surface to be cleaned, ensuring a safe distance. Squeeze the trigger to begin the flow of high-pressure water. The Zytel shell provides a comfortable and secure grip.
- Control Pressure: Adjust the distance from the cleaning surface to control the effective pressure. For delicate surfaces, start further away and gradually move closer.
- Release Trigger: To stop the water flow, release the trigger. The gun is designed to stop flow when the trigger is released.
- Depressurize: After use, turn off the pressure washer and squeeze the gun's trigger to release any remaining pressure in the system before disconnecting hoses or storing the unit.
5. Maintenance
Regular maintenance ensures the longevity and optimal performance of your Mi-T-M 16-0445 pressure washer gun.
- Cleaning: After each use, rinse the exterior of the gun with clean water to remove any dirt or chemical residue.
- Inspect Connections: Periodically check all connections for wear, corrosion, or damage. Replace worn O-rings or fittings as needed to prevent leaks.
- Storage: Store the gun in a clean, dry place, protected from freezing temperatures. Disconnect it from the pressure washer and hoses before storage.
- Winterization: If storing in freezing conditions, ensure all water is drained from the gun to prevent damage from ice expansion.
6. Troubleshooting
This section addresses common issues you might encounter with your pressure washer gun.
| Problem | Possible Cause | Solution |
|---|---|---|
| Water leaking from connections | Loose connections, worn O-rings, damaged threads. | Tighten connections. Inspect and replace O-rings or fittings if damaged. |
| No water flow or low pressure | Blocked nozzle, kinked hose, pressure washer issue. | Check and clear nozzle. Ensure hose is not kinked. Refer to pressure washer manual for unit-specific troubleshooting. |
| Trigger stuck or difficult to press | Internal debris, lack of lubrication, spring issue. | Flush gun with clean water. If issue persists, professional service may be required. Do not force the trigger. |
If you encounter issues not listed here or if solutions do not resolve the problem, please contact Mi-T-M customer support.
7. Specifications
| Attribute | Detail |
|---|---|
| Model Number | 16-0445 |
| Connection Type | 3/8 NPT F |
| Shell Material | Zytel |
| Product Dimensions | 26.1 x 8.4 x 2.2 inches |
| Item Weight | 2 Pounds |
| Manufacturer | MI-T-M |
| Country of Origin | China |
8. Warranty and Support
Mi-T-M products are manufactured to high-quality standards. For information regarding warranty coverage, please refer to the warranty documentation included with your original pressure washer unit or visit the official Mi-T-M website.
For technical assistance, replacement parts, or further inquiries, please contact Mi-T-M customer support:
- Website: www.mitm.com (Please check the official website for current contact information)
- Phone: Refer to the Mi-T-M website for current customer service phone numbers.
When contacting support, please have your product model number (16-0445) and any relevant purchase information ready.
