AZUTO MHG-001A
AZUTO Cup Holder Instruction Manual
Model: MHG-001A
Brand: AZUTO
Product Overview
The AZUTO Cup Holder for Mercedes-Benz G-Class W463 is designed to seamlessly integrate into your vehicle's interior, providing a secure and aesthetically pleasing solution for holding beverages. Unlike generic cup holders, this product utilizes a custom installation kit to ensure a perfect fit and flush attachment to the A/C vent. High-quality metal components are used to resist torsion and minimize stress on the vehicle's vent louvers, ensuring durability and stability.

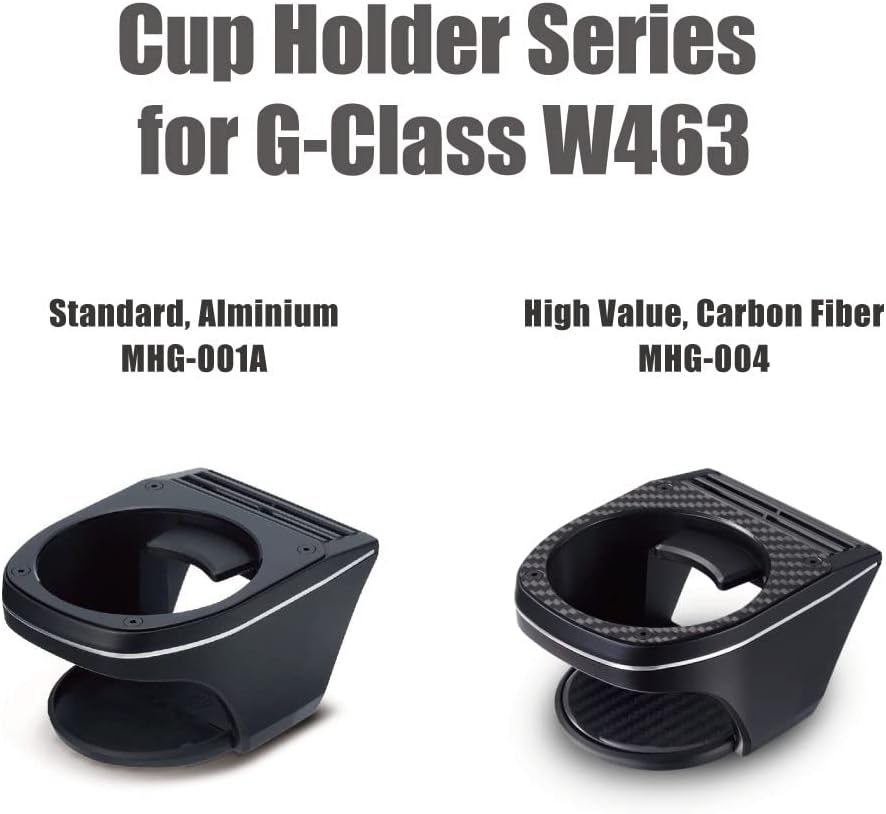

Image: Front view of the AZUTO Cup Holder, showcasing its matte black finish and sleek design.
Image: The AZUTO Cup Holder installed in the interior of a Mercedes-Benz G-Class, demonstrating its integrated appearance near the dashboard vent.
Package Contents
Verify that all components are present before beginning installation:
- AZUTO Cup Holder Unit
- Installation Kit (includes mounting brackets, screws, and adhesive pad)
Image: All components included in the package: the main cup holder unit and the separate installation kit with brackets, screws, and an adhesive pad.
Setup and Installation
Follow these steps for proper installation of your AZUTO Cup Holder:
- Identify Installation Location: The cup holder is designed to attach to the air conditioning vent on the dashboard. It can be installed on either the driver's or passenger's side vent.
- Prepare the Vent: Gently pull out the existing vent louvers to create space for the installation kit. Ensure the surface is clean and free of debris.
- Attach Mounting Bracket: The installation kit includes a mounting bracket. Secure this bracket to the vent using the provided screws. Ensure it is firmly attached.
- Insert Cup Holder Unit: Slide the main cup holder unit onto the installed mounting bracket. It should fit snugly and flush against the vent.
- Secure Cup Holder: Use the remaining screws to secure the cup holder unit to the mounting bracket. Tighten them sufficiently to prevent movement, but do not overtighten.
- Apply Adhesive Pad (Optional): An adhesive pad is provided for additional stability. Peel off the backing and apply it to the bottom surface of the cup holder where it rests against the dashboard. This helps prevent rattling and provides a more secure fit.
Video: Official installation guide for the AZUTO Cup Holder, demonstrating the step-by-step process of attaching the unit to the Mercedes-Benz G-Class air vent. This video shows how to prepare the vent, attach the mounting bracket, secure the cup holder, and apply the adhesive pad for a firm fit.
Operating Instructions
The AZUTO Cup Holder is designed for simple and convenient use:
- Placing Beverages: Insert your cup or bottle into the holder. The internal clips will gently secure smaller cups to prevent rattling and movement.
- Ventilation: The design allows for air circulation through the vent even with the cup holder installed, ensuring your vehicle's climate control remains effective.
Image: The AZUTO Cup Holder in use, holding a beverage securely within the vehicle's interior.
Maintenance
To ensure the longevity and appearance of your cup holder:
- Cleaning: Wipe the cup holder with a soft, damp cloth. Avoid abrasive cleaners or solvents that may damage the finish.
- Inspection: Periodically check the mounting screws and adhesive pad to ensure the cup holder remains securely attached.
Troubleshooting
- Issue: Cup holder feels loose after installation.
- Solution: Ensure all screws are tightened appropriately. If an adhesive pad was provided, verify it is properly adhered to the dashboard surface. Re-apply or replace the adhesive pad if necessary.
- Issue: Cup holder interferes with vent operation.
- Solution: The cup holder is designed to allow airflow. If airflow is significantly restricted, re-check the installation steps to ensure the unit is correctly aligned and not obstructing the vent louvers.
Specifications
| Feature | Detail |
|---|---|
| Brand | AZUTO |
| Model Number | MHG-001A |
| Compatible Vehicle | Mercedes-Benz G-Class W463 |
| Color | Matte Black |
| Material | Aluminum, Metal |
| Product Dimensions (L x W x H) | 4.72" x 3.5" x 2.76" (120mm x 89mm x 70mm) |
| Item Weight | 7.4 ounces |
| Country of Origin | China |
Image: Diagram illustrating the precise dimensions of the AZUTO Cup Holder.

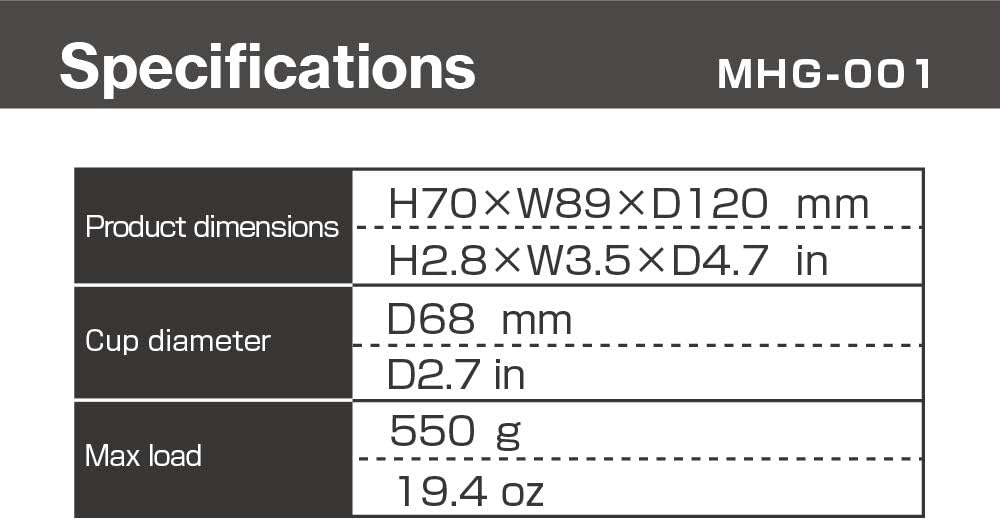

Image: A table detailing the product specifications, including dimensions, cup diameter, and maximum load.
Warranty and Support
For warranty information or technical support, please contact the manufacturer, SEIKOSANGYO CO.,LTD., or refer to the product packaging for specific details. You may also visit the official AZUTO brand store on Amazon for further assistance and product information: AZUTO Brand Store.
