Leifheit Regulus PowerVac 2in1 Cordless Vacuum Cleaner

1. Introduction

Thank you for choosing the Leifheit Regulus PowerVac 2in1 Cordless Vacuum Cleaner. This versatile appliance is designed to make your daily cleaning tasks easier and more efficient. It functions as both a powerful upright vacuum cleaner and a convenient handheld unit, suitable for various surfaces including tiles, carpets, and wooden floors.

Please read this manual carefully before first use to ensure proper operation, maintenance, and safety. Keep this manual for future reference.

Figure 1: Leifheit Regulus PowerVac 2in1 Cordless Vacuum Cleaner in upright position.

2. Safety Instructions

Always observe the following safety precautions to reduce the risk of fire, electric shock, or injury:

• Read all instructions before using the appliance.
• Do not use outdoors or on wet surfaces.
• Do not allow to be used as a toy. Close attention is necessary when used by or near children.
• Use only as described in this manual. Use only manufacturer's recommended attachments.
• Do not use with a damaged cord or plug. If appliance is not working as it should, has been dropped, damaged, left outdoors, or dropped into water, return it to a service center.
• Do not pull or carry by cord, use cord as a handle, close a door on cord, or pull cord around sharp edges or corners. Do not run appliance over cord. Keep cord away from heated surfaces.
• Do not unplug by pulling on cord. To unplug, grasp the plug, not the cord.
• Do not handle plug or appliance with wet hands.
• Do not put any object into openings. Do not use with any opening blocked; keep free of dust, lint, hair, and anything that may reduce air flow.
• Keep hair, loose clothing, fingers, and all parts of body away from openings and moving parts.
• Do not pick up anything that is burning or smoking, such as cigarettes, matches, or hot ashes.
• Do not use to pick up flammable or combustible liquids, such as gasoline, or use in areas where they may be present.
• Do not pick up toxic material, such as chlorine bleach, ammonia, or drain cleaner.
• Do not use without dust bag and/or filters in place.
• Turn off all controls before unplugging.
• Use extra care when cleaning on stairs.
• Do not charge the unit outdoors.
• Recharge only with the charger specified by the manufacturer. A charger that is suitable for one type of battery pack may create a risk of fire when used with another battery pack.
• Under abusive conditions, liquid may be ejected from the battery; avoid contact. If contact accidentally occurs, flush with water. If liquid contacts eyes, additionally seek medical help. Liquid ejected from the battery may cause irritation or burns.

3. Package Contents

Before assembly, ensure all items are present and in good condition:

• Main unit (handle element, floor nozzle, handheld vacuum cleaner)
• 2-in-1 brush nozzle
• Crevice nozzle
• Charging station
• Charging cable
• User manual

Figure 2: Included accessories for the Leifheit Regulus PowerVac 2in1.

4. Setup

4.1 Assembly

1. Carefully unpack all components from the packaging.
2. Insert the handle element into the main body of the vacuum cleaner until it clicks securely into place.
3. Attach the floor nozzle to the bottom of the main unit. Ensure it is firmly connected.

4.2 Charging the Battery

The appliance is equipped with a rechargeable 20V lithium-ion battery. Before first use, fully charge the battery.

1. Place the charging station on a flat, stable surface near a power outlet.
2. Connect the charging cable to the charging station and plug it into a wall outlet.
3. Place the vacuum cleaner onto the charging station. Ensure the charging contacts align. The charging indicator lights will illuminate.
4. A full charge takes approximately [insert charging time if available, otherwise omit]. The battery provides up to 40 minutes of runtime.

Figure 3: The vacuum cleaner docked in its charging station.

5. Operating Instructions

5.1 Upright Vacuum Cleaner Mode

For general floor cleaning:

1. Ensure the vacuum cleaner is fully charged.
2. Press the power button to turn on the vacuum cleaner.
3. Select the desired suction mode:
   • Eco Mode: For lighter cleaning tasks and extended battery life.
   • Turbo Mode: For maximum suction power on stubborn dirt or high-pile carpets.
4. Guide the vacuum cleaner across the floor. The integrated LED lights on the floor nozzle illuminate dark areas, making dirt more visible.

Figure 4: Using the Leifheit Regulus PowerVac 2in1 as an upright vacuum cleaner.

Figure 5: The integrated LED lights on the floor nozzle for improved visibility.

5.2 Handheld Vacuum Cleaner Mode

For cleaning furniture, upholstery, car interiors, or hard-to-reach areas:

1. To detach the handheld unit, press the release button located on the main body and pull the handheld unit upwards.
2. Attach the desired nozzle (2-in-1 brush nozzle or crevice nozzle) to the handheld unit.
3. Press the power button on the handheld unit to activate.
4. Clean the desired surface.
5. After use, reattach the handheld unit to the main body by aligning it and pushing down until it clicks.

Figure 6: Detaching the handheld vacuum cleaner from the main unit.

Figure 7: Versatile use of the handheld vacuum cleaner with different nozzles.

6. Maintenance

Regular maintenance ensures optimal performance and extends the lifespan of your vacuum cleaner.

6.1 Emptying the Dust Container

Empty the dust container regularly, ideally after each use, or when the MAX fill line is reached.

1. Ensure the vacuum cleaner is turned off.
2. Press the release button for the dust container and remove it from the handheld unit.
3. Open the dust container lid and empty the contents into a waste bin.
4. Close the lid and reattach the dust container to the handheld unit until it clicks.

Figure 8: Process of emptying the dust container.

6.2 Cleaning the Filter

The filter should be cleaned regularly to maintain suction power. It is washable.

1. Remove the dust container as described above.
2. Carefully remove the filter from the dust container.
3. Tap the filter gently to remove loose dust. For a more thorough clean, rinse the filter under cold running water.
4. Allow the filter to air dry completely for at least 24 hours before reinserting it. Do not use a dryer or other heating devices.
5. Once dry, place the filter back into the dust container and reattach the container to the handheld unit.

6.3 Cleaning the Brush Roll

Periodically check the brush roll in the floor nozzle for tangled hair or debris.

1. Turn off the vacuum cleaner.
2. Flip the floor nozzle over.
3. Use scissors or a brush to carefully remove any hair, threads, or debris wrapped around the brush roll.
4. Ensure the brush roll spins freely after cleaning.

7. Troubleshooting

8. Specifications

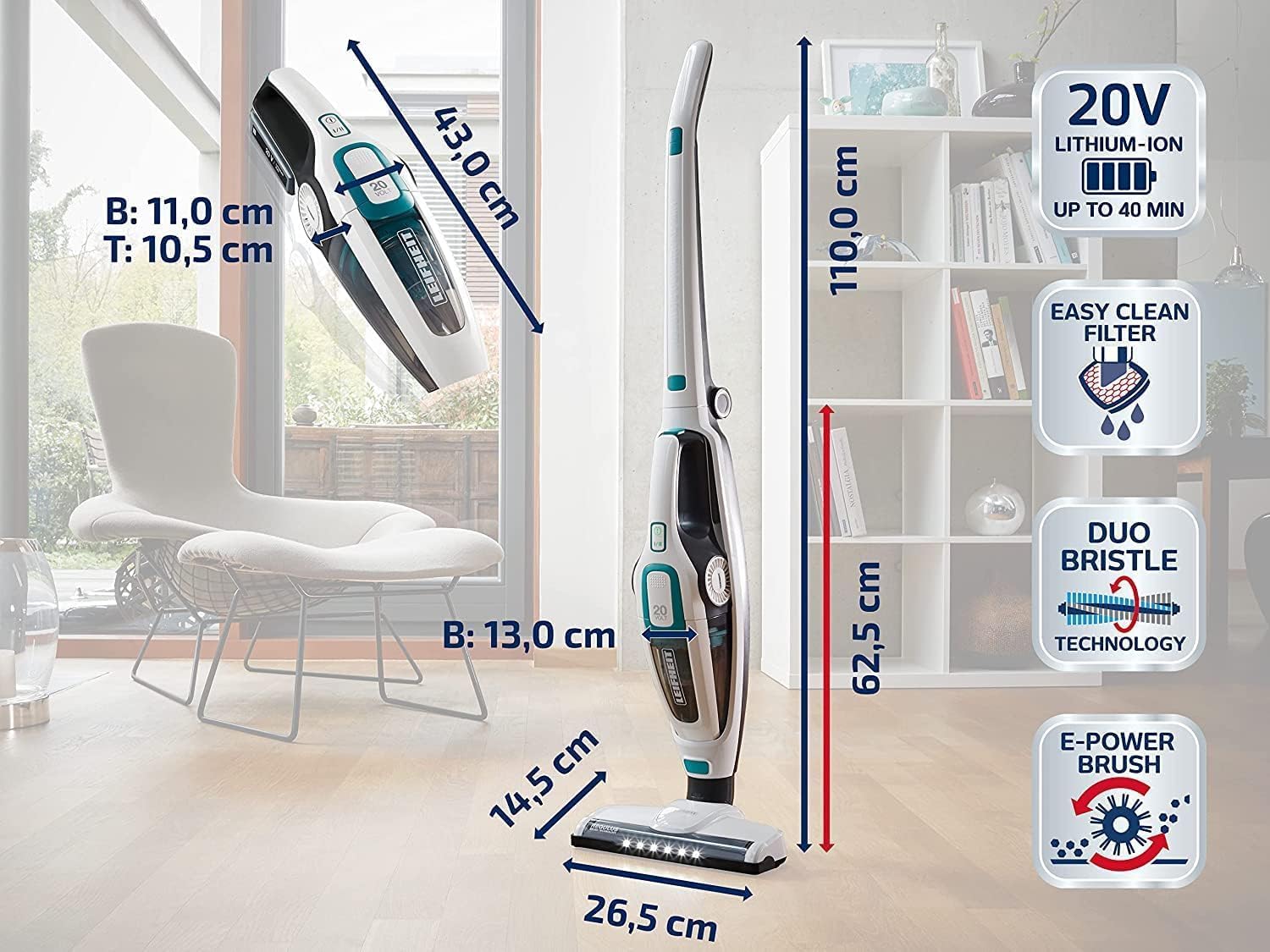

Figure 9: Product dimensions and key features.

9. Warranty and Support

Leifheit products are manufactured to high-quality standards. For information regarding warranty terms and conditions, please refer to the warranty card included with your purchase or visit the official Leifheit website.

If you encounter any issues or require technical support, please contact Leifheit customer service. Have your model number (11925) and purchase details ready when contacting support.

For further assistance, you may visit the Leifheit official website: www.leifheit.com
