Introduction
This instruction manual provides comprehensive guidance for the proper use and care of your FAMICOZY Mini Size Alarm Clock, Model FG-26. This compact, battery-operated analog alarm clock is designed for portability and features a quiet operation, snooze function, and a nightlight.
Image: Front view of the FAMICOZY Mini Size Alarm Clock. The clock has a black square casing with a white analog dial, black hour and minute hands, a red second hand, and a small black button on the top right for snooze/light.
Product Overview
Familiarize yourself with the components of your FAMICOZY Mini Size Alarm Clock:
- Clock Face: Displays time with hour, minute, and second hands.
- Snooze/Light Button: Located on the top right of the clock face. Press to activate the nightlight or snooze the alarm.
- Alarm Speaker: Located on the back of the clock, emits the alarm sound.
- Alarm Switch ON/OFF: Slide switch on the back to enable or disable the alarm.
- Alarm Time Setter: Knob on the back to adjust the alarm time.
- Time Setter: Knob on the back to adjust the current time.
- Battery Compartment: Located on the back, holds one AA battery.
Image: Front view of the alarm clock with labels pointing to the "snooze/light" button, and illustrations indicating "alarm on" and "alarm off" positions for the alarm switch.
Image: Back view of the alarm clock with labels pointing to the "Alarm Speaker", "Alarm Switch ON/OFF", "Alarm Time Setter", "Time Setter", and "Battery Compartment".
Setup
Battery Installation
The FAMICOZY Mini Size Alarm Clock requires one (1) AA battery (not included).
- Open the battery compartment cover located on the back of the clock.
- Insert one AA battery, ensuring the positive (+) and negative (-) terminals match the indicators inside the compartment.
- Close the battery compartment cover securely.
Setting the Current Time
- Locate the "Time Setter" knob on the back of the clock.
- Rotate this knob clockwise or counter-clockwise until the hour and minute hands display the correct current time.
Setting the Alarm Time
- Locate the "Alarm Time Setter" knob on the back of the clock.
- Rotate this knob until the small alarm hand points to your desired wake-up time.
Operating Instructions
Activating the Alarm
To turn the alarm ON, slide the "Alarm Switch ON/OFF" on the back of the clock to the ON position. The alarm will sound at the set alarm time.
Deactivating the Alarm
To turn the alarm OFF, slide the "Alarm Switch ON/OFF" on the back of the clock to the OFF position. The alarm will not sound.
Snooze Function
When the alarm sounds, press the "Snooze/Light" button on the top right of the clock. The alarm will pause and sound again after approximately 5 minutes. This function can be used multiple times.
Nightlight Function
To illuminate the clock face in low-light conditions, press and hold the "Snooze/Light" button on the top right. The light will remain on as long as the button is pressed.

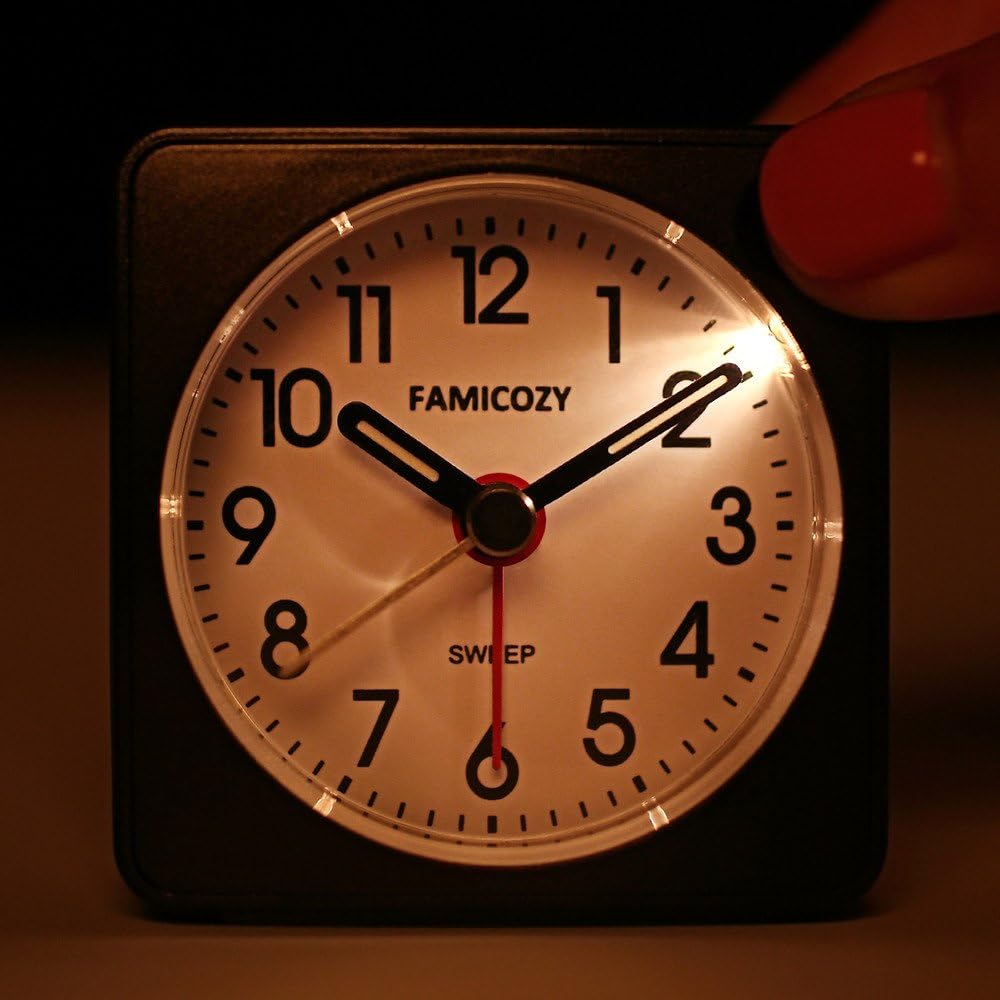

Image: A hand pressing the snooze/light button on the FAMICOZY alarm clock, illuminating the clock face in a dark setting.
Gradual Alarm Volume Increase
The alarm is designed to start at a low volume and gradually increase, providing a gentle wake-up experience.
Maintenance
- Battery Replacement: Replace the AA battery when the clock hands slow down or the alarm sound weakens. Always dispose of used batteries responsibly.
- Cleaning: Wipe the clock with a soft, dry cloth. Do not use abrasive cleaners or immerse the clock in water.
- Storage: If storing the clock for an extended period, remove the battery to prevent leakage.
Troubleshooting
| Problem | Possible Cause | Solution |
|---|---|---|
| Clock is not running or running slowly. | Low or dead battery; incorrectly installed battery. | Replace with a fresh AA battery, ensuring correct polarity (+/-). |
| Alarm does not sound. | Alarm switch is OFF; alarm time is not set correctly; low battery. | Ensure "Alarm Switch ON/OFF" is in the ON position. Verify the alarm hand is set to the desired time. Replace battery if needed. |
| Nightlight is dim or not working. | Low battery. | Replace with a fresh AA battery. |
| Difficulty setting time or alarm. | Knobs are stiff or damaged. | Apply gentle, consistent pressure. If damaged, contact customer support (if applicable). |
Specifications
| Feature | Detail |
|---|---|
| Brand | FAMICOZY |
| Model Number | FG-26 |
| Display Type | Analog |
| Power Source | 1 x AA Battery (not included) |
| Special Features | Alarm, Snooze, Nightlight, Quiet Operation, Gradual Volume Increase |
| Frame Material | Plastic |
| Product Dimensions | 1.06 x 1.5 x 2.16 inches |
| Item Weight | 1.28 ounces (0.08 Pounds) |
| Indoor/Outdoor Usage | Indoor |
Image: Size comparison of the FAMICOZY Mini Size Alarm Clock next to a standard credit card, illustrating its compact dimensions.
Warranty and Support
No specific warranty information is provided with this product data. For warranty details or customer support, please refer to the product packaging or contact the manufacturer directly.
