Sleekform Tokyo Kneeling Chair User Manual

1. Introduction

Thank you for choosing the Sleekform Tokyo Kneeling Chair. This manual provides essential information for the proper assembly, operation, and maintenance of your new ergonomic chair. Designed to promote an upright posture and support your lumbar spine, the Tokyo chair aims to enhance your comfort during extended periods of sitting.

Please read this manual thoroughly before assembly and use to ensure safe and optimal performance.

Image 1.1: A user demonstrating the correct posture while seated on the Sleekform Tokyo Kneeling Chair at a desk, highlighting its ergonomic design.

2. Safety Information

Your safety is paramount. Please observe the following guidelines:

• Always assemble the chair strictly according to the provided instructions.
• Exercise caution when adjusting the seat angle and height to prevent injury.
• Do not exceed the maximum weight capacity of 265 pounds (120 kg).
• Ensure all bolts and fasteners are securely tightened before use and periodically check for looseness.
• Keep children and pets away during assembly.
• Use the chair on a level, stable surface.

3. Package Contents

Before beginning assembly, verify that all components are present and undamaged. If any parts are missing or damaged, please contact Sleekform customer support.

• Chair Frame (Base and Upright Supports)
• Seat Pad
• Knee Pad
• Backrest Assembly
• Handlebars (2)
• Caster Wheels (4)
• Assembly Hardware (bolts, washers, Allen wrench)

Image 3.1: An assembled Sleekform Tokyo Kneeling Chair, providing a visual reference for all included parts.

4. Assembly Instructions

Follow these steps carefully to assemble your Sleekform Tokyo Kneeling Chair. It is recommended to assemble the chair on a soft, clean surface to prevent scratches.

1. Attach Caster Wheels: Insert the four caster wheels into the designated holes on the chair's base frame. Push firmly until they click into place.
2. Assemble Main Frame: Connect the upright support bars to the base frame using the provided bolts and Allen wrench. Do not fully tighten yet.
3. Install Knee Pad: Secure the knee pad to the lower frame section using the appropriate hardware.
4. Install Seat Pad: Attach the main seat pad to the upper frame section.
5. Attach Handlebars: Fasten the two handlebars to the sides of the seat pad frame.
6. Mount Backrest: Secure the backrest assembly to the rear of the seat frame. Ensure it is oriented correctly for ergonomic support.
7. Final Tightening: Once all components are in place, gradually tighten all bolts, ensuring the chair is stable and level.

Image 4.1: Detail of the heavy-duty universal caster wheels, designed for smooth movement and floor protection.

5. Operating Instructions

5.1 Adjusting Chair Height and Angle

The Sleekform Tokyo Kneeling Chair features adjustable components to customize your seating experience:

• Seat Angle Adjustment: Locate the adjustment lever or knob beneath the seat. Loosen it to adjust the angle of the seat and knee pads. Find a position where your hips are open, and your back feels naturally aligned. Tighten the lever/knob to secure the position.
• Height Adjustment: The chair's overall height can be adjusted to suit your desk and body type. The height range is typically between 19 and 26 inches. Refer to the specific mechanism on your chair (usually a pin-lock or screw-type adjustment on the main frame) to raise or lower the chair. Ensure it is securely locked before sitting.

5.2 Proper Seating Posture

To maximize the ergonomic benefits of your kneeling chair:

• Sit with your shins resting comfortably on the knee pad and your buttocks on the seat pad.
• Allow your hips to open to an angle greater than 90 degrees, which encourages an upright spinal alignment.
• Utilize the backrest for additional lumbar support, ensuring your shoulders and neck are aligned.
• The handlebars can assist you in maintaining balance when getting in and out of the chair.

Image 5.1: Visual guide to the ergonomic benefits, showing how the chair relieves back pain, provides back support, and positions the legs comfortably. Suitable for users between 5'2" and 6'6".

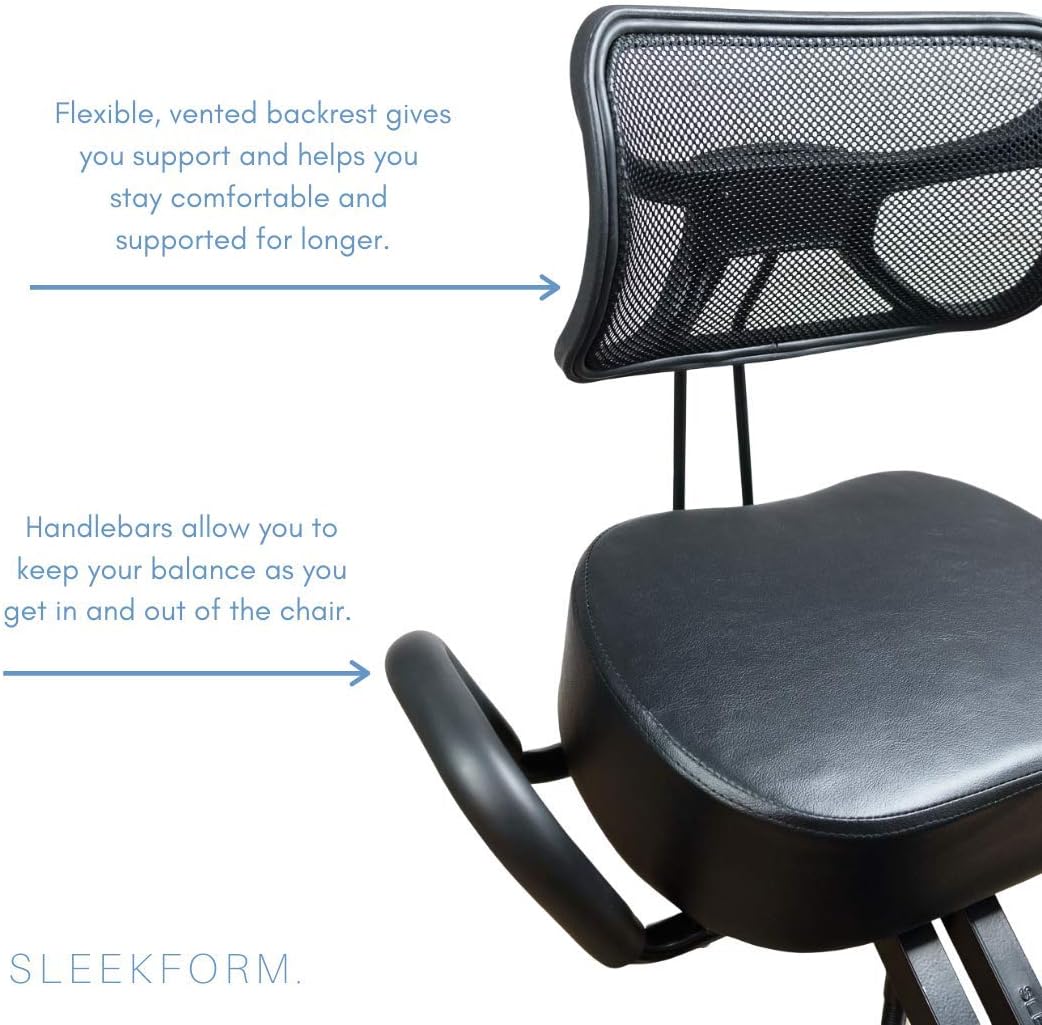

Image 5.2: Detail of the flexible, vented backrest for support and comfort, and the handlebars for balance.

5.3 Locking Wheels (Model Update)

Some versions of the Sleekform Tokyo Kneeling Chair are equipped with two front locking wheels. To engage the lock, simply press down on the lever located on the caster with your foot. This will keep the chair stationary. To unlock, lift the lever.

Image 5.3: Illustration of the locking caster wheel mechanism, indicating how to engage the lock with a foot press.

6. Maintenance

Regular maintenance will prolong the life and appearance of your chair:

• Cleaning: The chair's cushions are made from durable faux leather. For cleaning, use a damp cloth and mild soap for spot cleaning. Avoid harsh chemicals or abrasive cleaners.
• Frame Care: Wipe the metal frame with a soft, dry cloth to remove dust.
• Hardware Check: Periodically check all bolts and screws to ensure they remain tight. Re-tighten if necessary to maintain stability.
• Caster Wheels: Keep the caster wheels free of hair and debris to ensure smooth movement.

Image 6.1: Detail showing the 4-inch thick, high-density foam cushions covered in durable faux leather, designed for comfort and longevity.

7. Troubleshooting

If you encounter issues with your Sleekform Tokyo Kneeling Chair, refer to the following common problems and solutions:

• Chair feels wobbly: Ensure all assembly bolts are fully tightened. Check that the chair is on a flat, even surface.
• Difficulty adjusting height/angle: Verify that the adjustment mechanism is fully disengaged before attempting to move. Clean any debris from the adjustment points.
• Casters not rolling smoothly: Inspect wheels for trapped hair or debris and remove them. Ensure the locking mechanism (if present) is disengaged.
• Discomfort during use: Adjust the seat angle and height to find a more comfortable ergonomic position. Take short breaks to stand and stretch, especially when first adapting to a kneeling chair.

If problems persist, please contact Sleekform customer support for further assistance.

8. Specifications

Image 8.1: Detailed dimensions of the Sleekform Tokyo Kneeling Chair, including backrest, seat, knee pad, and frame measurements, along with the weight limit.

9. Warranty and Support

Sleekform is committed to providing quality products. For information regarding warranty coverage, product support, or to purchase replacement parts, please visit the official Sleekform website or contact their customer service department.

Please retain your proof of purchase for any warranty claims.
