Vannamore IN-12 IN-12A Nixie Tube Instruction Manual

Introduction

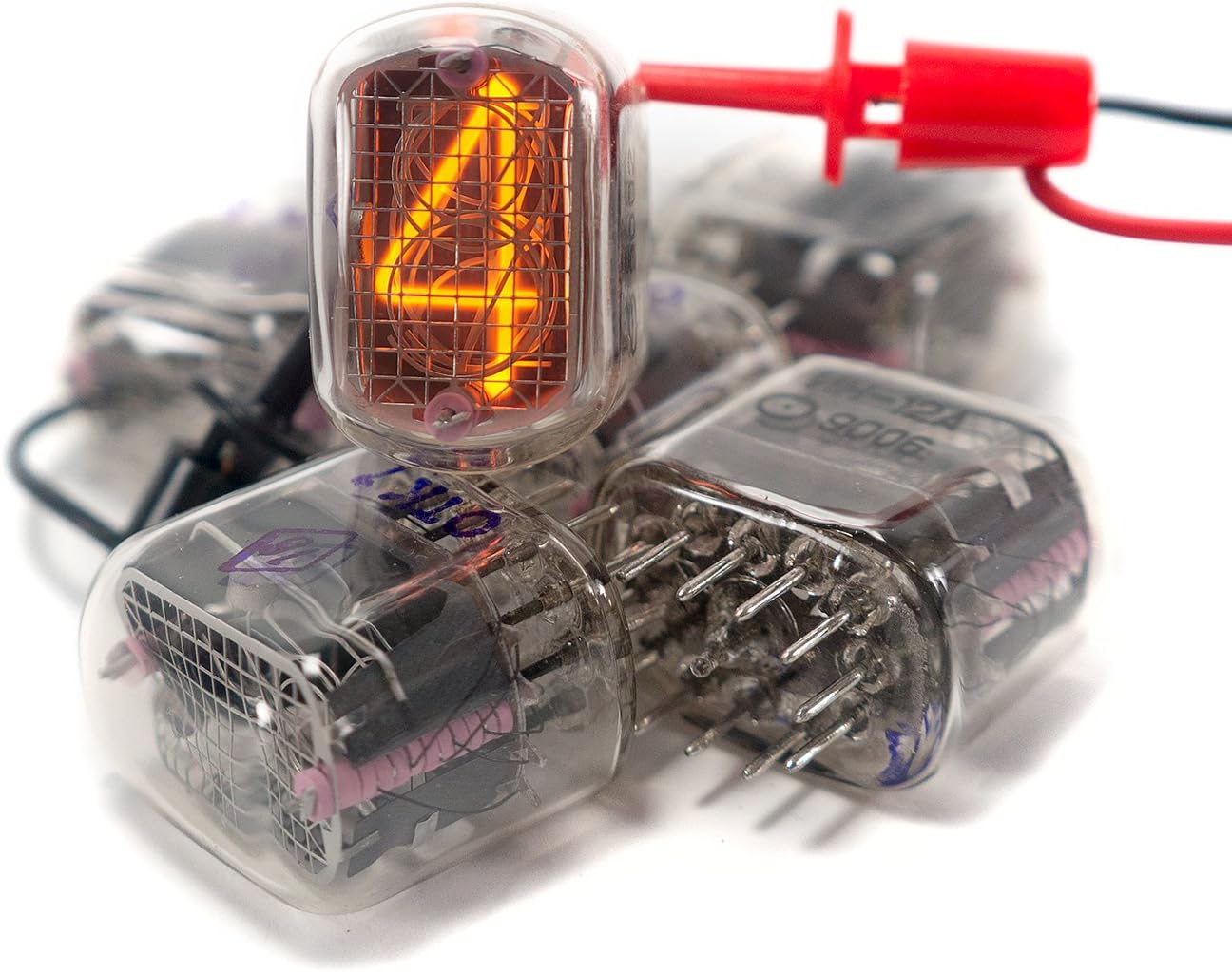

The IN-12 and IN-12A are vintage neon indicator tubes, commonly known as Nixie tubes. These tubes display numerical digits (0-9) using a glow discharge phenomenon. They are a Soviet-era equivalent to Western oval Nixie tubes and are often used in retro electronic projects, clocks, and display devices. This manual provides essential information for the proper handling, setup, and operation of your IN-12/IN-12A Nixie tubes.

Setup

Proper connection and voltage application are crucial for the safe and correct operation of IN-12/IN-12A Nixie tubes. These tubes typically require a high voltage DC power supply for operation.

Pin Configuration

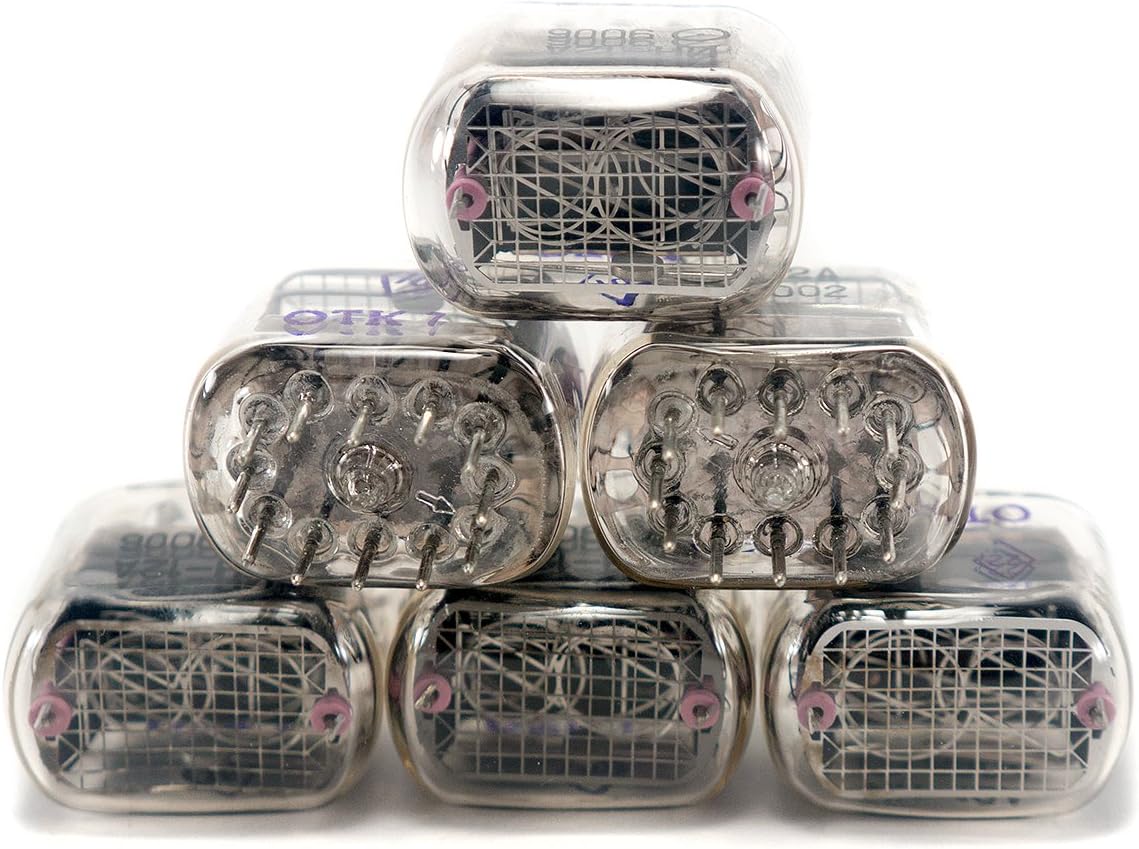

The IN-12/IN-12A tubes are mechanically compatible with 14-pin sockets. Ensure your socket has a centrally located perforation for clearance of the underside nipple of the tube. Each digit (0-9) corresponds to a specific cathode pin. The anode is typically connected to a high voltage source through a current-limiting resistor.

Voltage Requirements

• Ignition Voltage: No more than 170 V (≤170 V)
• Maintaining Voltage: Not less than 120 V (≥120 V)

A current-limiting resistor is essential in series with the anode to prevent excessive current flow and damage to the tube. Consult the specific circuit design for appropriate resistor values.

Operating Instructions

To illuminate a specific digit, apply a negative voltage (relative to the anode) to the corresponding cathode pin. The anode should be connected to the positive high voltage supply. Only one cathode should be active at a time to display a single digit.

Note on Digit '5': The IN-12/IN-12A tube does not feature a dedicated cathode for the digit '5'. Instead, the digit '2' stencil is used, mounted upside down, to represent '5'.

Demonstration Video

Video 1: A demonstration of the IN-12A Nixie tube being inserted into a socket and displaying various digits, including its interaction with a plasma ball.

Maintenance

Nixie tubes are delicate electronic components. Handle them with care to ensure longevity.

• Cleaning: Gently wipe the glass envelope with a soft, dry, lint-free cloth. Avoid using abrasive cleaners or excessive moisture.
• Handling: Always handle tubes by their base or glass envelope, avoiding direct contact with the pins to prevent bending or damage.
• Storage: Store tubes in a dry, cool environment, ideally in their original packaging or in anti-static foam to protect the pins and glass.

Troubleshooting

If your Nixie tube is not functioning as expected, consider the following common issues:

• Digit Not Lighting Up:
  • Verify all connections to the cathode and anode are secure and correct according to your circuit diagram.
  • Check the high voltage power supply to ensure it is providing the correct voltage (at least 120V).
  • Inspect the current-limiting resistor for proper value and connection.
  • Ensure the selected cathode pin is receiving the appropriate negative voltage.
• Flickering or Unstable Display:
  • This can indicate an unstable power supply or insufficient current. Check power supply stability.
  • Ensure proper grounding in your circuit.
  • Verify the current-limiting resistor value is appropriate for stable operation.
• Dim or Uneven Glow:
  • Check for proper voltage and current. A slightly higher voltage (within safe limits) or lower resistance might brighten the display.
  • Ensure the tube is fully seated in its socket.

If issues persist, consult a qualified electronics technician or refer to detailed Nixie tube circuit design resources.

Specifications

Warranty and Support

Specific warranty information for the Vannamore IN-12 IN-12A Nixie Tube is not available in the provided product data. For details regarding warranty coverage, returns, or technical support, please refer to the seller's policies or contact the manufacturer directly.

It is recommended to retain your purchase receipt for any warranty claims or support inquiries.
