Signature Design by Ashley Moriville Rustic Farmhouse 36" Counter Height Dining Extension Table User Manual

Introduction

This manual provides detailed instructions for the assembly, operation, and maintenance of your Signature Design by Ashley Moriville Rustic Farmhouse 36" Counter Height Dining Extension Table. Please read all instructions carefully before beginning assembly and retain this manual for future reference.

Important Safety Information

• Assembly requires careful attention to instructions to ensure stability and prevent injury.
• Keep children and pets away from the assembly area.
• Once assembled, ensure the table is stable. Consider securing the table to the wall or floor to prevent tipping, especially in households with children or pets.
• Always lift the table when moving it; do not drag, as this can damage the legs or floor.

Package Contents

Before beginning assembly, verify that all parts are present and undamaged. If any parts are missing or damaged, do not proceed with assembly. Contact customer support for assistance.

• Table Top
• Table Legs (4)
• Support Beams/Stretchers
• Extension Leaves (2)
• Hardware (bolts, washers, nuts, Allen wrench)
• Assembly Instructions (this manual)

Note: Specific component names may vary. Refer to the included hardware packet for a detailed list.

Setup and Assembly

Assembly of this dining table is required. It is recommended that two people perform the assembly to ensure safety and ease of construction. All necessary hardware and tools are included.

Preparation:

1. Clear a spacious, clean, and level area for assembly.
2. Lay out all components and hardware. Ensure all parts are accounted for by comparing them with the parts list in your hardware packet.
3. Keep children and pets away from the assembly area.

Assembly Steps:

Follow the step-by-step instructions provided in the separate assembly guide (PDF link if available, otherwise general steps).

General Assembly Sequence:

1. Attach the table legs to the support beams/stretchers using the provided hardware. Ensure all connections are secure but do not overtighten initially.
2. Carefully attach the assembled leg and support structure to the underside of the table top.
3. Once all components are loosely connected, gently tighten all hardware. Do not overtighten to avoid stripping screws or damaging wood.
4. With assistance, carefully flip the table upright.
5. Check for stability. If the table wobbles, gently loosen and retighten hardware, ensuring the table is on a level surface.

Image Description: A diagram illustrating the dimensions of the Signature Design by Ashley Moriville Counter Height Dining Extension Table. The table measures 36 inches in width, 86 inches in depth with both leaves inserted, and 36 inches in height. It also shows the leaf length (12 inches), table depth without leaves (62 inches), table depth with one leaf (74 inches), and apron to floor distance (32.5 inches).

Image Description: A close-up view of the table's leg and stretcher assembly, highlighting the distressed nutmeg finish and the sturdy construction of the base.

Operating Instructions

Extending the Table:

The Moriville dining table features an extension mechanism that allows you to adjust its length to accommodate more guests. The table can comfortably seat up to 8 people when fully extended with both leaves.

1. Prepare the Table: Ensure there are no items on the table surface.
2. Separate Table Halves: Gently pull both ends of the table apart. The table top will slide open, revealing a gap in the center.
3. Insert Extension Leaves: Take one or both extension leaves. Align the pins on the leaves with the corresponding holes in the table halves. Carefully lower the leaves into place.
4. Close Table Halves: Push the table halves back together until they are flush with the inserted leaves. Ensure the leaves are securely seated.

To shorten the table, reverse these steps: pull the table halves apart, remove the leaves, and then push the table halves back together.

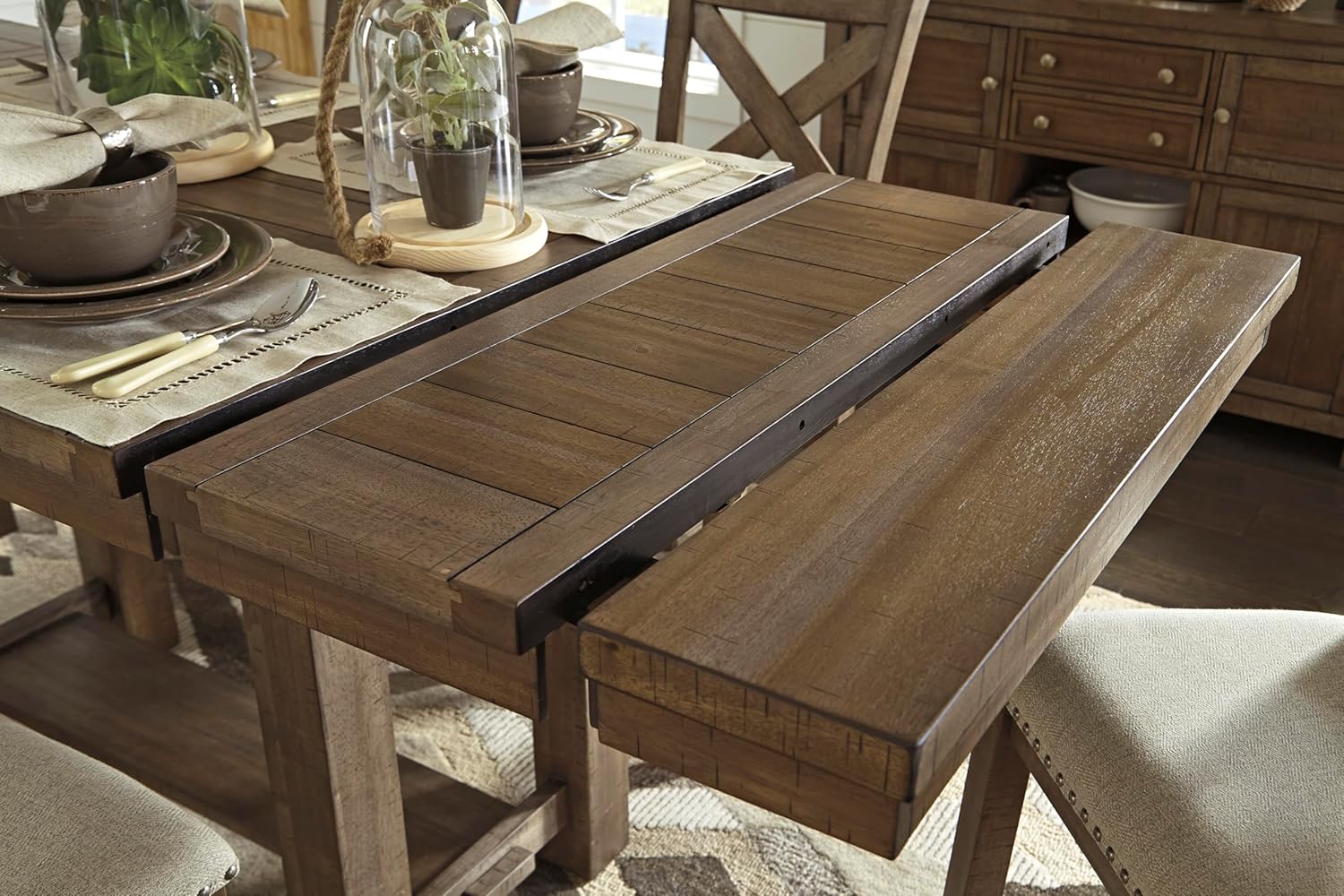

Image Description: A close-up view demonstrating the table's extension leaf mechanism. One leaf is partially inserted, showing how the table expands to accommodate additional seating.

Image Description: The Signature Design by Ashley Moriville dining table shown fully extended with both leaves inserted, ready to seat a larger group. The distressed nutmeg finish is visible.

Care and Maintenance

Proper care will help maintain the beauty and longevity of your dining table.

• Cleaning: For general cleaning, wipe the surface with a soft, dry cloth. For spills, blot immediately with a clean, damp cloth and then dry thoroughly. Avoid abrasive cleaners or harsh chemicals.
• Product Care Instructions: The manufacturer specifies "Dry clean only" for certain components, likely referring to any fabric elements if present (though the table itself is wood). For the wood surfaces, follow general wood furniture care guidelines.
• Protection: Use placemats, coasters, and hot pads to protect the table surface from heat, moisture, and scratches.
• Sunlight Exposure: Avoid placing the table in direct sunlight for prolonged periods, as this can cause fading or cracking of the wood finish.
• Humidity: Maintain a consistent humidity level in your home to prevent wood from expanding or contracting, which can lead to cracks or warping.
• Hardware Check: Periodically check all assembly hardware and tighten if necessary. Do not overtighten.

Troubleshooting

Product Specifications

Warranty and Customer Support

For information regarding product warranty, please refer to the documentation included with your purchase or visit the official Signature Design by Ashley website. For any questions, missing parts, or assistance with assembly, please contact Signature Design by Ashley customer support.

Customer Support: Refer to your purchase receipt or the manufacturer's website for contact details.

Online Resources: You may find additional support and FAQs on the Signature Design by Ashley Brand Store.
