Halco BR30FL9/927/LED 80194 LED BR30 9.5W 2700K DIMMABLE JA8-2016E

1. Product Overview

The Halco BR30FL9/927/LED 80194 is a high-performance LED BR30 bulb designed for energy-efficient illumination. This 9.5W bulb provides 650 lumens of warm white light at a color temperature of 2700K, equivalent to a 65W incandescent bulb. It is fully dimmable, allowing for flexible lighting control in various applications.

• Energy Efficient: 9.5W LED replaces 65W incandescent.
• Dimmable: Dimmable to 5% for design flexibility.
• High CRI: Color Rendering Index (CRI) of 90 ensures accurate color representation.
• Long Lifespan: Average life of 25,000 hours.
• Certifications: ENERGY STAR Certified, UL Listed for Damp Location & Enclosed Fixtures, Title 24 compliant/JA-8 2016, RoHS Compliant.

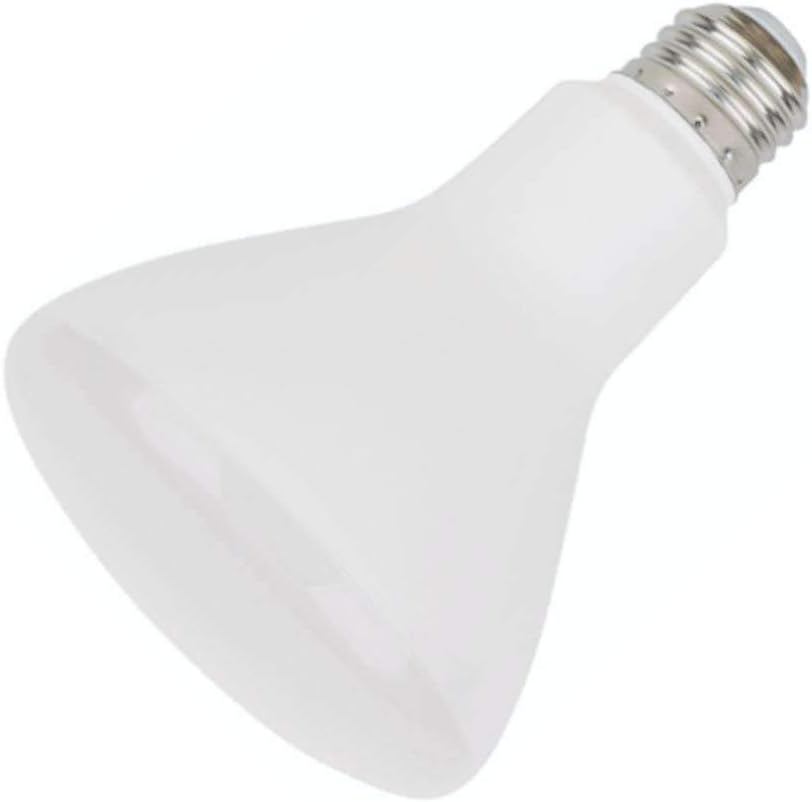

Figure 1: Halco BR30 LED Bulb. This image displays the frosted finish and the E26 medium screw base of the bulb.

2. Safety Information

Please read and understand all safety instructions before installing or using this product. Failure to follow these instructions may result in electric shock, fire, or other hazards.

• WARNING: Do not use this bulb in totally enclosed fixtures unless specifically rated for such use. Using it in totally enclosed fixtures may shorten the bulb's lifespan or cause overheating.
• Ensure power is turned off at the circuit breaker before installation or removal.
• Do not disassemble or modify the bulb.
• Do not use with dimmers not specifically designed for LED bulbs, as this may cause flickering or damage.
• This bulb is designed for 120V AC circuits only.
• Avoid touching the bulb when it is operating or immediately after turning it off, as it may be hot.

3. Installation and Setup

Installation of the Halco BR30 LED bulb is straightforward and similar to traditional incandescent bulbs.

1. Turn Off Power: Before beginning installation, ensure the power to the fixture is turned off at the circuit breaker or fuse box to prevent electric shock.
2. Remove Old Bulb (if applicable): Carefully unscrew the existing bulb from the fixture. Allow it to cool if it was recently in use.
3. Install New Bulb: Screw the Halco BR30 LED bulb into the E26 (medium) base socket of your compatible fixture. Turn clockwise until it is finger-tight. Do not overtighten.
4. Restore Power: Once the bulb is securely installed, restore power at the circuit breaker.
5. Test: Turn on the light switch to confirm the bulb is functioning correctly.

This bulb is UL Listed for Damp Location, making it suitable for use in bathrooms, kitchens, and outdoor covered areas where moisture may be present. However, it is not suitable for direct water exposure.

4. Operating Instructions

The Halco BR30 LED bulb operates like a standard light bulb once installed. Its primary feature is its dimmable capability.

• Turning On/Off: Use your existing light switch to turn the bulb on or off.
• Dimming: If connected to a compatible LED dimmer switch, you can adjust the brightness level from 100% down to 5%. For optimal performance and to avoid flickering, ensure your dimmer is specifically designed for LED lighting.
• Light Quality: Enjoy consistent 2700K warm white light, ideal for creating a comfortable and inviting atmosphere. The high CRI of 90 ensures colors appear vibrant and true.

5. Maintenance

LED bulbs require minimal maintenance due to their long lifespan and durable construction.

• Cleaning: To clean the bulb, ensure the power is off and the bulb is cool. Wipe gently with a soft, dry cloth. Do not use liquid cleaners or abrasive materials.
• Replacement: With an average lifespan of 25,000 hours, frequent replacement is not necessary. Replace the bulb only when it reaches the end of its operational life.
• Disposal: Dispose of old LED bulbs according to local regulations for electronic waste.

6. Troubleshooting

If you experience issues with your Halco BR30 LED bulb, refer to the following common troubleshooting steps:

• Bulb Does Not Light Up:
  • Check if the power switch is on.
  • Ensure the bulb is screwed in securely into the socket.
  • Verify that the circuit breaker for the fixture is not tripped.
  • Test the bulb in another working fixture to rule out a faulty fixture.
• Flickering or Dimming Issues:
  • Ensure your dimmer switch is compatible with LED bulbs. Older incandescent-only dimmers may cause flickering.
  • Try adjusting the dimmer to a different level.
  • Ensure the bulb is not used in a totally enclosed fixture if not rated for it, as overheating can cause performance issues.
• Bulb Shuts Off Intermittently:
  • This could indicate overheating. Ensure proper ventilation around the fixture.
  • Check for loose connections in the fixture or wiring.

7. Specifications

8. Warranty and Support

Specific warranty details for the Halco BR30FL9/927/LED 80194 bulb are typically provided at the point of purchase or by the manufacturer. Please retain your proof of purchase for warranty claims.

For technical support or further inquiries, please contact Halco customer service or the retailer from whom you purchased the product. Refer to the product packaging or Halco's official website for the most current contact information.
