Eagle Eye Lights GM438-B001L Headlight Instruction Manual

1. Introduction

Thank you for choosing the Eagle Eye Lights GM438-B001L Headlight. This manual provides essential information for the proper installation, operation, maintenance, and troubleshooting of your new headlight assembly. Please read these instructions carefully before beginning installation to ensure safe and correct usage. This product is designed to be OE-comparable, SAE/DOT compliant, and meets ISO 9001:2800 and ISO/TS 16949:2009 certification requirements.

2. Safety Information

• Always disconnect the vehicle's battery before performing any electrical work to prevent electrical shock or damage to the vehicle's electrical system.
• Wear appropriate personal protective equipment, including safety glasses and gloves, during installation.
• Ensure the vehicle is parked on a level surface with the parking brake engaged.
• Allow the vehicle's engine and existing headlight bulbs to cool down completely before handling to avoid burns.
• If you are unsure about any step of the installation process, consult a qualified automotive technician.

3. Setup and Installation

This section outlines the general steps for replacing a headlight assembly. Specific procedures may vary slightly depending on your vehicle's make and model. Refer to your vehicle's service manual for detailed instructions.

3.1 Tools Required

• Socket wrench set
• Screwdriver set (Phillips and flathead)
• Plastic trim removal tools (optional, but recommended)
• Clean cloth

3.2 Installation Steps

1. Prepare the Vehicle: Park the vehicle on a level surface, engage the parking brake, and turn off the engine. Open the hood.
2. Disconnect Battery: Disconnect the negative terminal of the vehicle's battery to prevent electrical hazards.
3. Access Headlight Assembly: Depending on your vehicle, you may need to remove the front grille, bumper cover, or fender liner to access the headlight mounting bolts. Carefully remove any clips, screws, or bolts securing these components.
4. Remove Old Headlight: Locate and remove the mounting bolts or clips that secure the existing headlight assembly. Gently pull the old headlight assembly away from the vehicle.
5. Disconnect Wiring: Disconnect all electrical connectors from the back of the old headlight assembly. This typically includes connectors for the main headlight bulb, turn signal, and parking light.
6. Install New Headlight: Connect the electrical connectors to the new Eagle Eye Lights GM438-B001L Headlight assembly. Ensure all connections are secure.
7. Mount New Headlight: Carefully position the new headlight assembly into its housing. Secure it with the mounting bolts or clips removed earlier. Do not overtighten.
8. Reassemble Vehicle: Reinstall any removed grille, bumper cover, or fender liner components.
9. Reconnect Battery: Reconnect the negative terminal of the vehicle's battery.
10. Test Headlights: Turn on the vehicle's headlights (low beam, high beam), turn signals, and parking lights to ensure all functions are working correctly. Verify proper alignment.

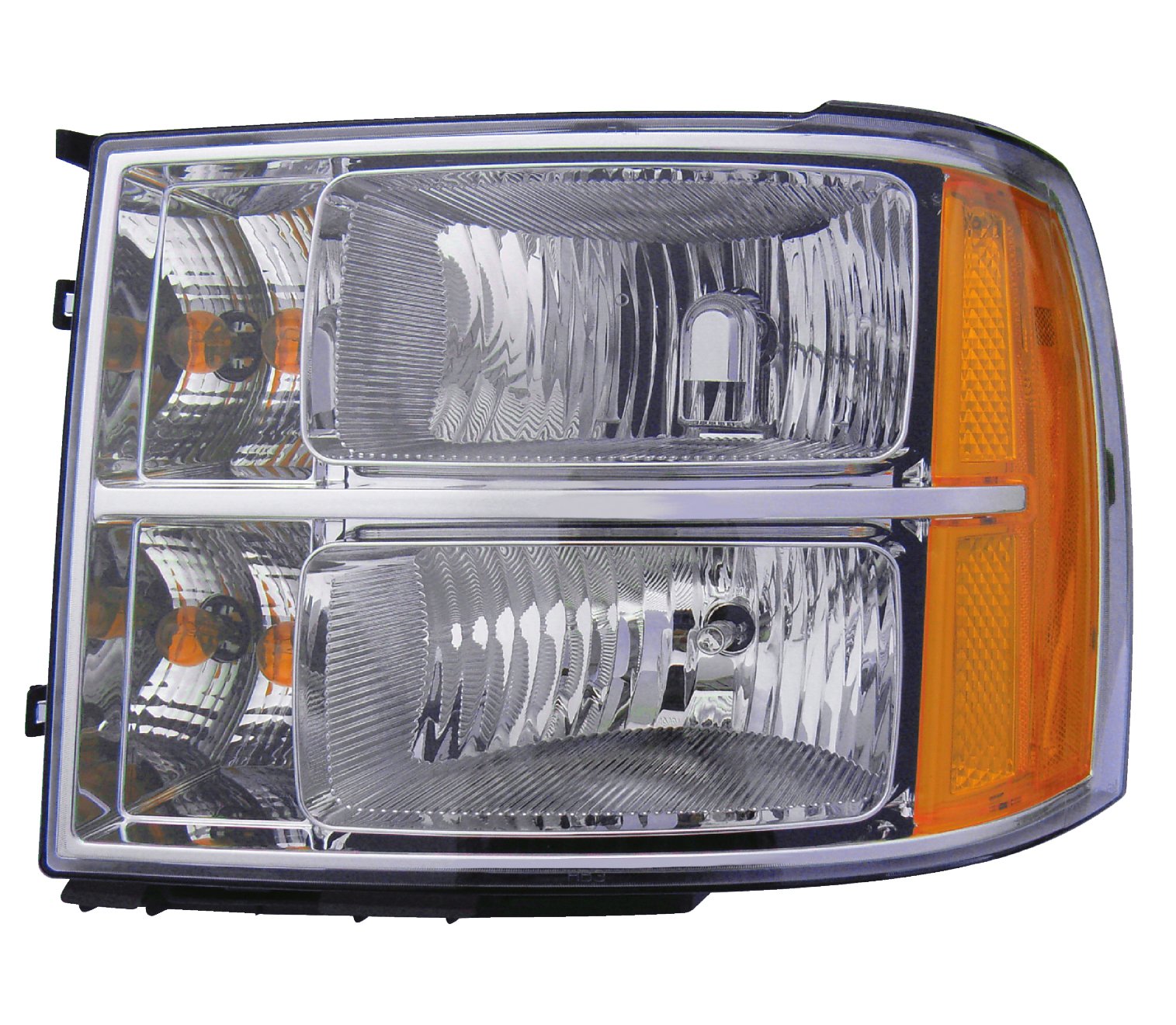

Image: The Eagle Eye Lights GM438-B001L Headlight assembly. This image shows the complete unit, ready for installation into a vehicle's front end.

4. Operating Instructions

Once installed, the Eagle Eye Lights GM438-B001L Headlight operates in conjunction with your vehicle's existing electrical system and controls. Use your vehicle's standard headlight switch to activate the low beams, high beams, and parking lights as needed. Ensure proper headlight aiming for optimal visibility and to avoid blinding oncoming traffic.

5. Maintenance

Regular maintenance helps ensure the longevity and performance of your headlight assembly.

• Cleaning: Clean the headlight lens regularly with a soft cloth and mild soap and water. Avoid abrasive cleaners or harsh chemicals, as these can damage the lens coating.
• Inspection: Periodically inspect the headlight assembly for any signs of damage, cracks, or condensation inside the lens. Check that all bulbs are functioning correctly.
• Bulb Replacement: If a bulb needs replacement, refer to your vehicle's service manual for the correct bulb type and replacement procedure. Ensure the replacement bulb matches the specifications for your headlight.

6. Troubleshooting

If you encounter issues with your headlight, consider the following troubleshooting steps:

• Headlight Not Working:
  • Check the bulb: Ensure the bulb is properly seated and not burnt out.
  • Check electrical connections: Verify that all wiring connectors are securely attached to the headlight assembly and the vehicle's harness.
  • Check fuses: Consult your vehicle's owner's manual to locate and inspect the headlight fuse. Replace if blown.
• Dim or Flickering Light:
  • Inspect wiring: Look for loose or corroded wiring connections.
  • Check vehicle's charging system: A weak battery or alternator can cause dim lights.
• Condensation Inside Lens:
  • Small amounts of condensation can be normal and should dissipate.
  • If excessive or persistent, check for cracks in the housing or a compromised seal. Ensure all caps and covers on the back of the assembly are securely in place.

If these steps do not resolve the issue, it is recommended to consult a professional automotive technician.

7. Specifications

8. Warranty and Support

For specific warranty information regarding your Eagle Eye Lights GM438-B001L Headlight, please refer to the documentation provided at the time of purchase or contact Eagle Eye Lights customer support directly. Keep your proof of purchase for warranty claims.

If you require further assistance or have questions not covered in this manual, please contact the manufacturer or your authorized dealer.
