1. Introduction
This manual provides essential instructions for the safe and efficient use of your Fissler vitavit premium Pressure Cooker. Please read all instructions carefully before first use and retain for future reference. The Fissler vitavit premium pressure cooker is designed for fast and gentle cooking, preserving nutrients and flavors.

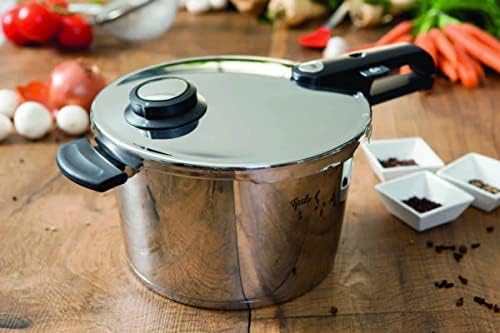

Image 1: The Fissler vitavit premium 8.5 Quart Pressure Cooker.
2. Important Safety Instructions
When using your pressure cooker, basic safety precautions should always be followed:
- Read all instructions carefully.
- Do not touch hot surfaces. Use handles or knobs.
- Close supervision is necessary when the pressure cooker is used near children.
- Do not place the pressure cooker in a heated oven.
- Extreme caution must be used when moving a pressure cooker containing hot liquids.
- Do not use the pressure cooker for other than intended use.
- This appliance cooks under pressure. Improper use may result in scalding injury. Make certain unit is properly closed before operating. See "Closing the Lid" section.
- Never force open a pressure cooker. Make sure internal pressure is completely released before opening. See "Pressure Release" section.
- Do not fill the unit over 2/3 full. When cooking foods that expand during cooking, such as rice or dried vegetables, do not fill the unit over 1/2 full. Overfilling may cause a risk of clogging the vent pipe and developing excess pressure. See "Filling the Pressure Cooker" section.
- Be aware that certain foods, such as applesauce, cranberries, pearl barley, oatmeal or other cereals, split peas, noodles, macaroni, rhubarb, or spaghetti can foam, froth, sputter, and clog the pressure release device. These foods should not be cooked in a pressure cooker.
- Always check the pressure release devices for clogging before use.
- Use only Fissler original spare parts.
3. Parts Overview
Familiarize yourself with the main components of your Fissler vitavit premium Pressure Cooker:
- Pot Body: The main cooking vessel, made of high-quality stainless steel.
- Lid with Handle: Features the pressure control dial, locking mechanism, and steam release.
- Pressure Control Dial: Used to select cooking settings (gentle, fast, steam) and release pressure.
- Visual Pressure Indicator (Traffic Light System): Displays the internal pressure status (yellow, green, red).
- Locking Indicator: A visual cue that confirms the lid is securely locked.
- Sealing Gasket: Located inside the lid, essential for creating a pressure-tight seal.
- Cookstar All-Stove Base: Ensures optimal heat absorption, distribution, and retention, compatible with all stove types, including induction.
Image 2: Overview of the Fissler vitavit premium pressure cooker.
4. Setup and First Use
4.1 Unpacking and Cleaning
- Remove all packaging materials and labels.
- Wash the pot body, lid, and all removable parts with warm soapy water. Rinse thoroughly and dry.
- Ensure the sealing gasket is correctly seated inside the lid.
4.2 Attaching the Handle
The handle is designed for secure attachment. Ensure it is firmly in place before use. The handle is removable for cleaning purposes.
5. Operating Instructions
5.1 Filling the Pressure Cooker
The Fissler vitavit premium pressure cooker features internal measurement guides for easy prepping.
- Always add a minimum of 250ml (approx. 1 cup) of liquid.
- Do not fill the pressure cooker more than 2/3 full.
- For foods that expand (e.g., rice, legumes), do not fill more than 1/2 full.
5.2 Closing the Lid
- Place the lid onto the pot body, aligning the lid handle with the pot handle.
- Press the lid down firmly and turn the handle clockwise until it locks into place.
- The locking indicator will show a red mark, and you will hear an audible "Click" when the lid is securely closed.

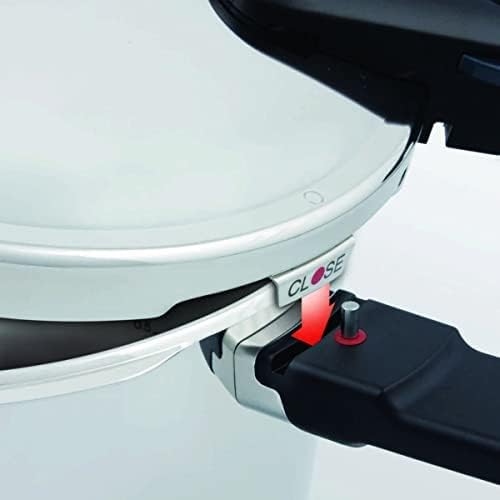

Image 3: The red locking indicator confirms the lid is securely closed.

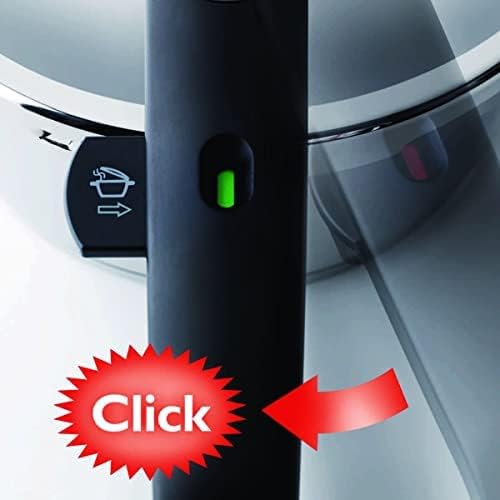

Image 4: Visual representation of the audible 'Click' for secure lid locking.
5.3 Heat Settings and Pressure Control
- Place the pressure cooker on your stove. The Cookstar all-stove base is compatible with all heat sources, including induction.
- Turn the pressure control dial to your desired cooking setting:
- Setting 1 (Gentle): For delicate foods like vegetables or fish.
- Setting 2 (Fast): For meats, stews, and other foods requiring higher pressure.
- Steam Setting: For cooking without pressure, similar to a conventional steamer.
- Set your stove to high heat. As pressure builds, the visual pressure indicator (traffic light system) will rise:
- Yellow Ring: Pressure is building.
- Green Ring: Optimal cooking pressure has been reached. Reduce heat to maintain this level.
- Red Ring: Pressure is too high. Reduce heat immediately.
- Once the green ring is visible, reduce the heat to the lowest setting that maintains the green ring. Begin timing your cooking.
Image 5: The pressure control dial for selecting cooking settings.
Image 6: The traffic light pressure indicator for easy monitoring.
5.4 Steam Cooking (without pressure)
To steam cook without pressure, turn the pressure control dial to the steam setting. This allows for gentle cooking, similar to a conventional steamer, without building high pressure.
Image 7: The pressure control dial set to the steam cooking icon.
5.5 Pressure Release
After cooking, pressure must be released before opening the lid. There are several methods:
- Natural Release: Remove the pressure cooker from the heat source and allow it to cool down naturally. The pressure indicator will drop on its own. This method is suitable for foods that benefit from continued cooking.
- Quick Release (Steam Release Function): Carefully turn the pressure control dial to the steam release position or use the steam release button on the handle. Steam will escape rapidly. Keep hands and face away from the steam.
Image 8: The steam release function on the pressure cooker lid.
5.6 Opening the Lid
Only open the lid when the pressure indicator has completely dropped and the red locking indicator is no longer visible. Turn the handle counter-clockwise and lift the lid.
5.7 Official Product Video
Video 1: Official Fissler video demonstrating the features and operation of the vitavit premium pressure cooker, including lid locking, pressure control, and steam release.
6. Maintenance and Cleaning
- The pot body is dishwasher safe.
- The lid, including the handle and gasket, should be washed by hand with warm soapy water. The handle is removable for thorough cleaning.
- Regularly check and clean the pressure control valve and steam release mechanisms to ensure they are free from food particles.
- Inspect the sealing gasket for any signs of wear or damage. Replace if necessary to maintain a proper seal.
7. Troubleshooting
| Problem | Possible Cause | Solution |
|---|---|---|
| Lid will not close or lock. | Lid not aligned correctly; sealing gasket misplaced; pressure indicator raised. | Ensure lid is aligned with pot handle. Check gasket position. If pressure indicator is up, pressure is still inside; do not force. |
| Pressure does not build. | Lid not properly sealed; insufficient liquid; heat too low; gasket damaged. | Ensure lid is locked. Add more liquid. Increase heat. Inspect and replace gasket if worn. |
| Steam escapes from under the lid. | Lid not properly sealed; gasket dirty or damaged; overfilling. | Check lid seal. Clean or replace gasket. Do not overfill the cooker. |
| Food is undercooked or overcooked. | Incorrect cooking time or pressure setting. | Adjust cooking time and ensure the green pressure indicator ring is maintained throughout cooking. |
8. Specifications
- Brand: Fissler
- Model: 620-700-08-0590
- Capacity: 8.5 Quarts
- Material: High-quality Stainless Steel
- Color: Silver
- Base Type: Cookstar All-Stove Base (Induction Compatible)
- Special Features: Dishwasher Safe (pot body), Locking Lid, Removable Handle, Three Cooking Speeds, Measuring Scale, Optimal Heat Distribution
- Item Weight: 12.03 Pounds
- Operation Mode: Manual
9. Warranty and Support
Your Fissler vitavit premium Pressure Cooker comes with a 3-year warranty, ensuring quality and reliability. For warranty claims, technical support, or spare parts, please contact Fissler customer service. You can find contact information on the official Fissler website or through your retailer.
For more information, visit the official Fissler website: www.fissler.com
