1. Product Overview
This manual provides instructions for the installation and use of the 9.99WORLD MALL 48 Volt Charger Receptacle and Fuse Assembly, designed for Club Car DS electric golf carts manufactured from 2000 onwards.

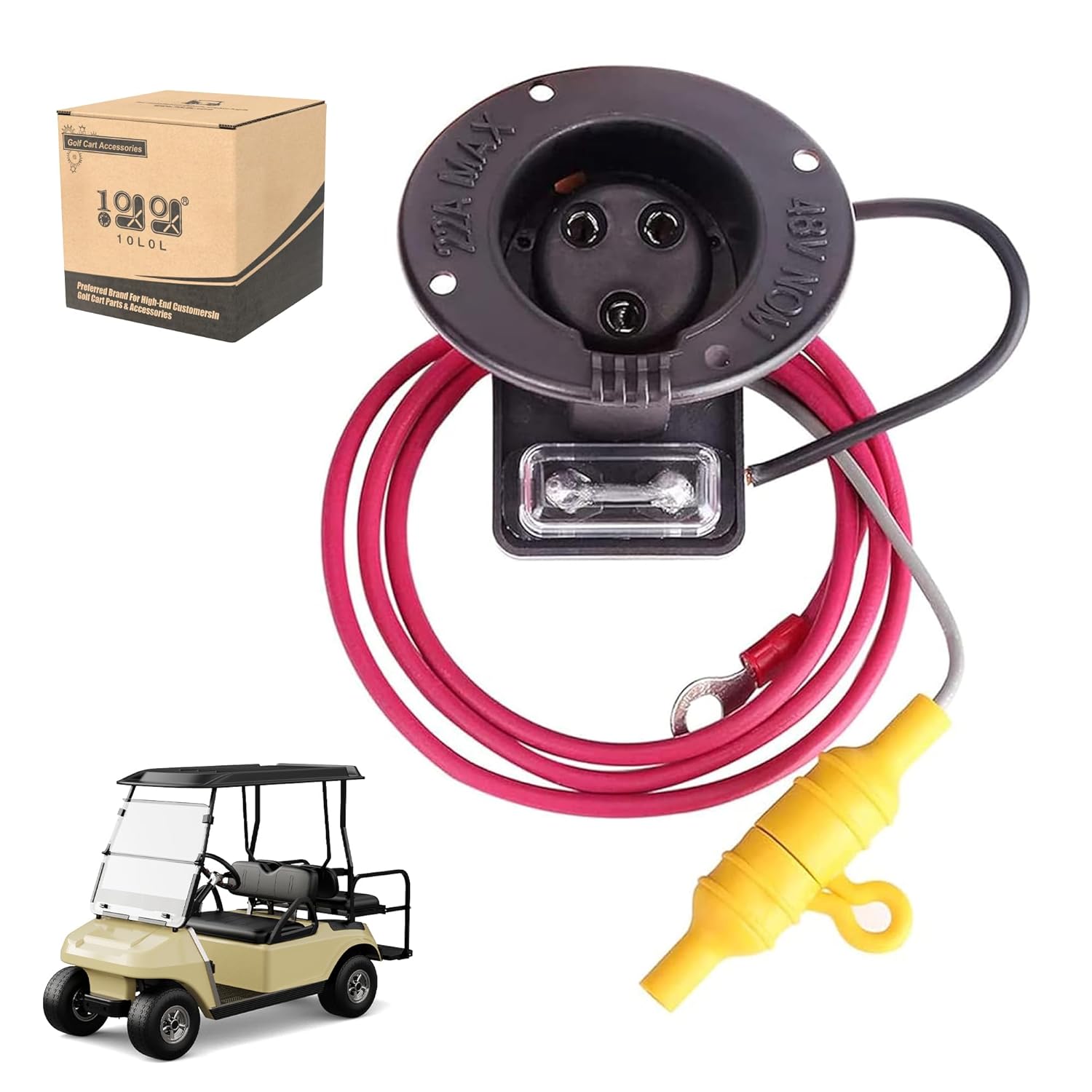

Image 1.1: The 48 Volt Charger Receptacle and Fuse Assembly, including the main receptacle, wiring, and inline fuse holder.
Components Included:
- 48 Volt DC Charger Receptacle (OEM# 1018021-01)
- Bezel Receptacle (OEM# 1017965-01)
- 48V Fuse (OEM# 1017968-01)
- 3/8 AMP Fuse (OEM# 1018949-01)
- Integrated wiring harness
Product Dimensions:
Image 1.2: Detailed dimensions of the charger receptacle. The faceplate measures approximately 2.84 inches in diameter, the body length is 3.7 inches, and the fuse housing width is 1.92 inches.
2. Compatibility
This charger receptacle and fuse assembly is specifically designed for:
- Club Car DS Electric Golf Carts (2000-up models)
It replaces OEM part numbers 1018021-01 and 1018468-01. Ensure your golf cart model matches the specified compatibility before installation.
3. Installation (Setup)
Safety Precaution: Before beginning any installation, ensure the golf cart's main power switch is turned off and the batteries are disconnected to prevent electrical shock or damage to the system.
Required Tools:
- Screwdriver set (Phillips and Flathead)
- Wrench set
- Wire cutters/strippers (if necessary for custom wiring)
Installation Steps:
- Disconnect Power: Turn off the golf cart and disconnect the main battery terminals.
- Access Old Receptacle: Locate the existing charger receptacle on your Club Car DS. Remove any screws or fasteners holding it in place.
- Disconnect Wiring: Carefully disconnect the wiring from the old receptacle. Note the positive and negative connections.
- Remove Old Receptacle: Once wiring is disconnected, remove the old receptacle from its mounting location.
- Prepare New Receptacle: Insert the new 9.99WORLD MALL charger receptacle into the opening. Ensure it fits securely.
- Connect Wiring: Connect the golf cart's wiring to the new receptacle. The red wire from the new assembly typically connects to the positive (+) terminal, and the black wire to the negative (-) terminal. The gray wire with the yellow fuse holder connects to the appropriate fuse terminal as per the original setup. Refer to the wiring diagram below for guidance.
- Secure Receptacle: Fasten the new receptacle using the provided screws or original hardware.
- Reconnect Batteries: Reconnect the golf cart batteries, ensuring proper polarity.
- Test Functionality: Plug in your 48V golf cart charger to verify proper operation.
Image 3.1: Visual guide illustrating the six key steps for installing the charger receptacle, from removing the old unit to securing the new one.
Wiring Diagram and Connection Points:
Image 3.2: Exploded view diagram showing the charger receptacle assembly and its connection points within the golf cart's electrical system. Note the OEM part number 101802101.
Image 3.3: Close-up rear view of the charger receptacle, showing the screw terminals for connecting the main power wires and the smaller wires for the fuse assembly.
Correct vs. Incorrect Installation:
Ensure the fuse is properly seated and the connections are secure to avoid operational issues.
Image 3.4: Visual comparison demonstrating the correct way to install the fuse within its housing (left) versus an incorrect, unsecured installation (right).
4. Operation
Once the 48 Volt Charger Receptacle and Fuse Assembly is correctly installed, operating your golf cart's charging system is straightforward:
- Connect Charger: Plug your compatible 48V golf cart charger into the newly installed receptacle.
- Monitor Charging: Observe the charger's indicator lights to confirm that charging has initiated. Refer to your specific charger's manual for light indications.
- Disconnect Charger: Once charging is complete, unplug the charger from the receptacle.
Always ensure the charger is designed for 48-volt systems and is compatible with the Club Car DS Powerwise charging port.
5. Maintenance
Regular maintenance of your charger receptacle and fuse assembly ensures optimal performance and longevity:
- Inspect Connections: Periodically check all wiring connections to ensure they are tight and free from corrosion. Loose connections can lead to overheating or intermittent charging.
- Examine Fuse: Visually inspect the fuse within its holder for any signs of damage or breakage. Replace if necessary with a fuse of the correct amperage (48V, 3/8 AMP).
- Clean Receptacle: Keep the receptacle free from dirt, debris, and moisture. Use a dry cloth to wipe down the exterior. Avoid using harsh chemicals.
- Check for Damage: Look for any physical damage to the receptacle housing or wiring insulation. Damaged components should be replaced immediately.
6. Troubleshooting
If you encounter issues with your charger receptacle, consider the following troubleshooting steps:
- Charger Not Activating:
- Ensure the charger is properly plugged into both the wall outlet and the golf cart receptacle.
- Check the fuse in the assembly. A blown fuse will prevent charging. Replace with a new 48V, 3/8 AMP fuse if blown.
- Verify that the golf cart batteries are not completely discharged (below minimum voltage), as some chargers require a minimum voltage to initiate.
- Inspect all wiring connections for looseness or corrosion.
- Intermittent Charging:
- Check for loose connections at the receptacle or battery terminals.
- Ensure the charger plug is fully seated in the receptacle.
- Inspect the charger cord for damage.
- Overheating:
- If the receptacle or wiring feels excessively hot during charging, immediately disconnect the charger.
- This could indicate a loose connection, a short circuit, or an overloaded circuit. Inspect all components and wiring thoroughly.
If these steps do not resolve the issue, it is recommended to consult a qualified golf cart technician.
7. Specifications
| Feature | Detail |
|---|---|
| Brand | 9.99WORLD MALL |
| Model Number | 1018468-01 |
| OEM Part Numbers | 1018021-01, 1018468-01 |
| Voltage | 48 Volts |
| Compatible Devices | Club Car DS Electric Golf Carts (2000-up) |
| Material | Plastic |
| Color | Black, Silver |
| Package Dimensions | 4.45 x 4.09 x 3.7 inches |
| Item Weight | 7.04 ounces |
8. Warranty Information
Specific warranty details for this product are not provided in the available information. Please refer to the product packaging or contact the manufacturer, World 9.99 Mall, directly for warranty inquiries.
9. Customer Support
For technical assistance, troubleshooting, or questions regarding this product, please contact the manufacturer:
Manufacturer: World 9.99 Mall
Please have your product model number (1018468-01) and purchase information ready when contacting support.
