Globber One NL 230 Ultimate Scooter Instruction Manual

1. Introduction

This manual provides essential information for the safe and efficient use of your Globber One NL 230 Ultimate Scooter. Please read all instructions carefully before assembly and use. Retain this manual for future reference.

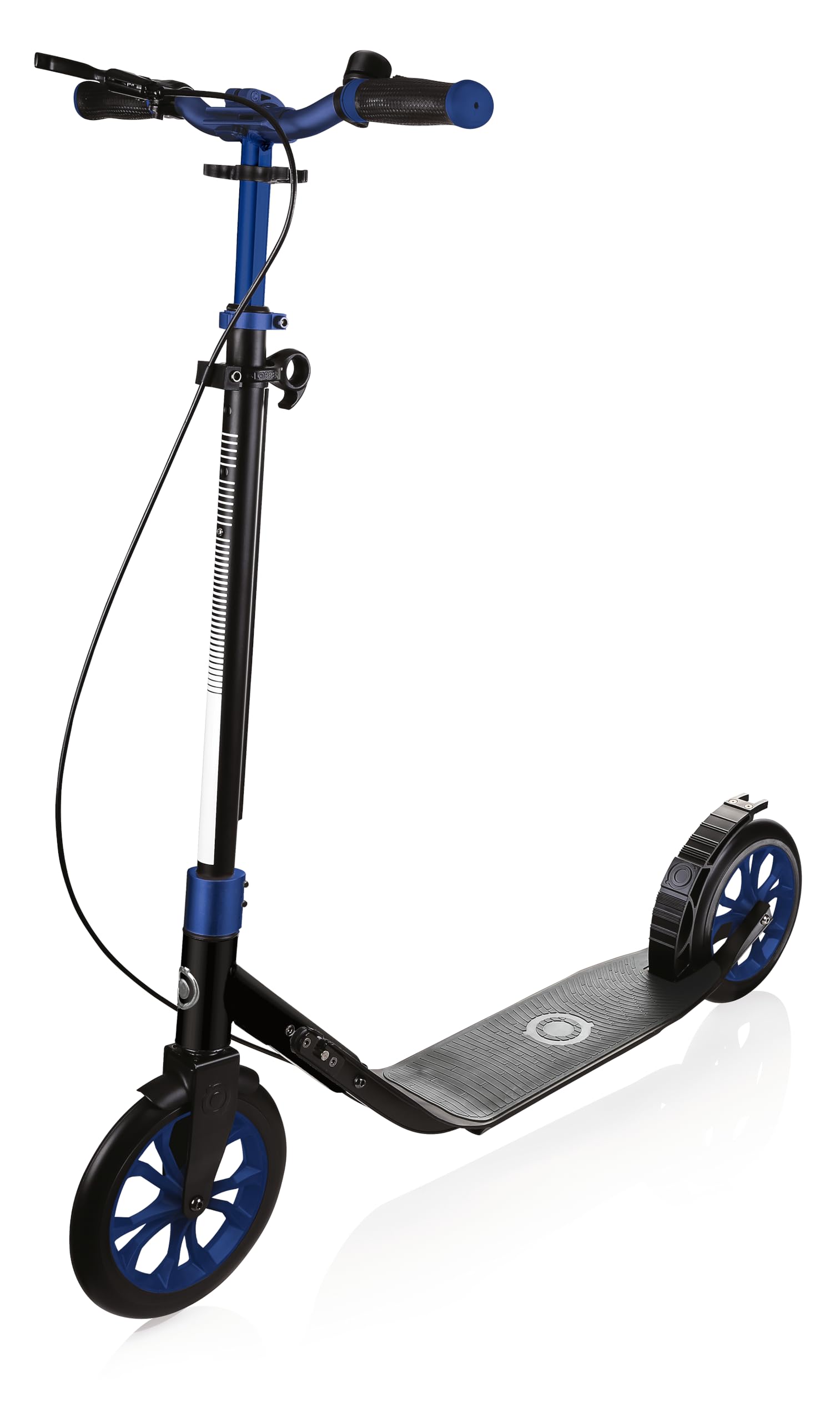

The Globber One NL 230 Ultimate is a foldable adult scooter designed for urban commuting and recreational use, featuring large 230mm wheels, an adjustable handlebar, and a robust aluminum frame.

2. Safety Guidelines

Always prioritize safety when operating the scooter. Failure to follow these guidelines may result in injury or damage.

• Always wear a helmet and appropriate protective gear (knee pads, elbow pads, wrist guards).
• Ensure all locking mechanisms are securely fastened before each ride.
• Do not exceed the maximum weight limit of 100 kg (220 lbs).
• Ride on smooth, paved surfaces away from traffic. Avoid wet, uneven, or slippery surfaces.
• Maintain a safe distance from pedestrians and other vehicles.
• Be aware of your surroundings and potential hazards.
• Do not ride at night or in low visibility conditions without proper lighting.
• Children should only use the scooter under direct adult supervision.
• Regularly inspect the scooter for wear and tear, especially brakes, wheels, and folding mechanisms.

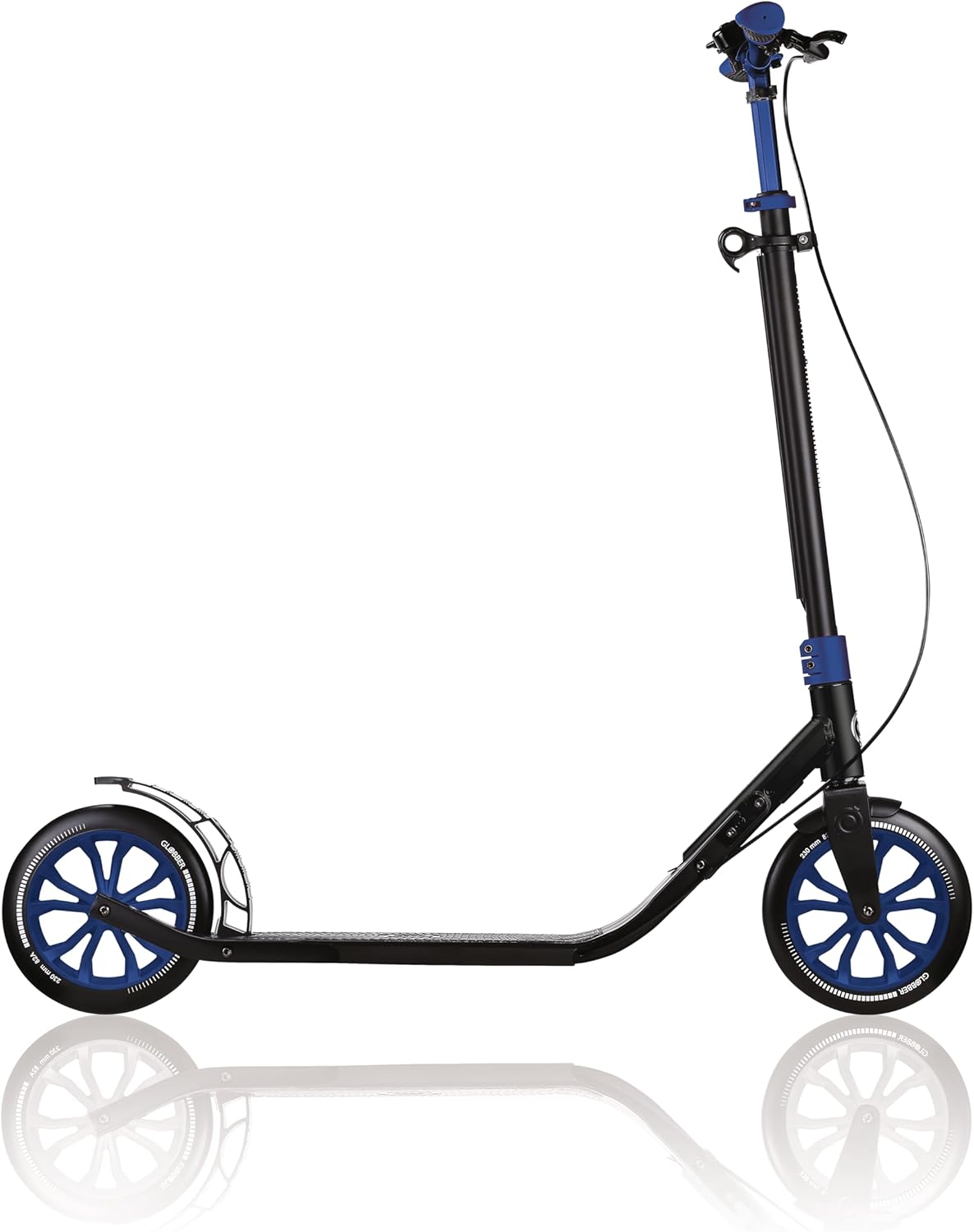

3. Product Components

Familiarize yourself with the main parts of your Globber One NL 230 Ultimate Scooter.

• Handlebar: Adjustable height with ergonomic grips.
• Handbrake: Lever-operated brake located on the handlebar.
• Steering Column: Connects the handlebar to the front wheel.
• Folding Mechanism: Allows for quick and easy folding of the scooter.
• Deck (Footboard): The platform where you stand, featuring a non-slip grip.
• Front Wheel: 230mm polyurethane wheel.
• Rear Wheel: 230mm polyurethane wheel with rear suspension.
• Rear Foot Brake: Located above the rear wheel for additional braking.
• Kickstand: For parking the scooter upright.

4. Setup and Assembly

Your scooter comes partially assembled. Follow these steps to prepare it for use.

4.1 Unfolding the Scooter

1. Place the scooter on a flat, stable surface.
2. Locate the folding mechanism near the base of the steering column.
3. Engage the assisted 1-second folding mechanism to release the steering column from its folded position.
4. Gently pull the steering column upwards until it locks securely into the upright position. Ensure you hear a 'click' indicating it is locked.
5. Verify that the folding mechanism is fully engaged and the steering column is stable.

4.2 Adjusting the Handlebar Height

1. Locate the quick-release clamp on the steering column.
2. Open the quick-release clamp.
3. Adjust the handlebar to a comfortable height. The handlebar should be roughly at hip level when standing on the deck.
4. Close the quick-release clamp firmly to secure the handlebar at the desired height. Ensure there is no vertical movement.

5. Operating Instructions

5.1 Riding the Scooter

1. Place one foot firmly on the deck, slightly forward.
2. Use your other foot to push off the ground, gaining momentum.
3. Once moving, place both feet on the deck, one behind the other, or side-by-side if comfortable.
4. Steer by gently leaning and turning the handlebar in the desired direction.

5.2 Braking

The scooter is equipped with both a handbrake and a rear foot brake.

• Handbrake: Squeeze the lever on the handlebar to engage the front brake. Apply gently to avoid sudden stops.
• Rear Foot Brake: Press your foot down on the fender above the rear wheel. This will apply friction to the wheel, slowing the scooter.
• For optimal braking, use both brakes simultaneously and gradually.

5.3 Folding for Storage/Transport

1. Ensure the scooter is stationary and on a flat surface.
2. Lower the handlebar to its lowest position by opening the quick-release clamp and re-securing it.
3. Engage the assisted 1-second folding mechanism to release the steering column.
4. Fold the steering column downwards until it locks into the folded position.
5. The scooter is now compact for storage or transport.

6. Maintenance

Regular maintenance ensures the longevity and safe operation of your scooter.

• Cleaning: Wipe the scooter with a damp cloth after use. Avoid harsh chemicals.
• Wheels: Check wheels regularly for wear and tear. Replace if significantly worn.
• Bearings: If wheels do not spin freely, bearings may need cleaning or replacement.
• Brakes: Ensure brake cables are taut and brake pads are not excessively worn. Adjust or replace as needed.
• Fasteners: Periodically check all screws, bolts, and quick-release clamps to ensure they are tight and secure.
• Storage: Store the scooter in a dry place, away from direct sunlight and extreme temperatures.

7. Troubleshooting

Refer to this section for common issues and their solutions.

8. Specifications

9. Warranty and Support

Your Globber One NL 230 Ultimate Scooter comes with a Limited Warranty. For specific terms and conditions, please refer to the warranty card included with your purchase or contact Globber customer support.

For technical support, spare parts, or warranty claims, please contact the manufacturer, GLOBBER, through their official website or authorized service centers.
