Pool Cooler Instruction Manual

Introduction

The mistcooling Pool Cooler is designed to effectively lower the water temperature of your in-ground swimming pool, providing a more refreshing swimming experience during hot weather. This device utilizes a simple, energy-efficient method to cool your pool by up to 8-10°F without additional operating costs. It is engineered for easy installation, seamlessly integrating with most existing pool wall fittings without requiring the removal of the pool return jet eye ball seating wall fitting.

Image: The mistcooling Pool Cooler actively spraying water into an in-ground pool, demonstrating its cooling function.

Product Features

• Effective Cooling: Lowers pool water temperature by up to 8-10°F.
• Kid-Friendly Design: Features a mist curtain that enhances fun without interfering with the swimming area.
• Effortless Installation: Easy to set up without the need for glue or complex procedures.
• Versatile Compatibility: Designed specifically for in-ground pools and compatible with most existing pool wall fittings.
• Zero Operating Costs: An energy-efficient solution that requires no additional expenses to maintain a cooler pool.

Package Contents

Your mistcooling Pool Cooler package includes the following components:

• 1 x Header Pipe
• 1 x Sprayer Pipe (2 Feet)

Please note: The pool wall fitting, retainer ring, and eye ball are existing components of your pool and are not included with this product. The Pool Cooler is designed to integrate with your existing fittings.

Image: The main components of the Pool Cooler, including the header pipe and sprayer pipe, highlighting the ease of setup.

Setup and Installation

Follow these steps for a quick and easy installation of your Pool Cooler. No special tools or adhesives are required.

1. Remove Return Jet Pool Fittings:
   Unscrew and remove the existing eye ball and retainer ring from your pool's return jet. It is not necessary to remove your existing threaded pool wall fitting.
2. Attach Pool Cooler Header Pipe:
   Screw the Pool Cooler's header pipe into your existing pool wall fitting. It is suggested to use your existing pool wall and retainer ring to ensure proper sizing and fit. Hand tighten the connection securely.
3. Position Header Pipe:
   Align the top of the header pipe to approximately the 10 o'clock position. Ensure the pipe is straightened to an upright position.
4. Insert Sprayer Pipe:
   Place the sprayer pipe into the top opening of the header pipe. Push it in firmly by hand until it is seated. Ensure the sprayer holes are facing into the pool for optimal water distribution.

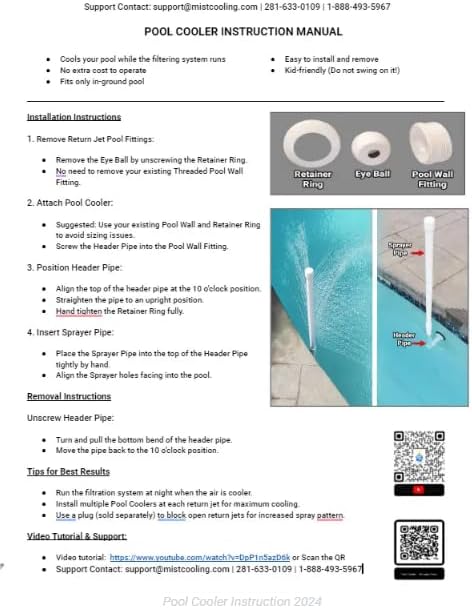

Image: Visual guide detailing the installation process, from removing existing fittings to attaching the Pool Cooler components.

Installation Videos

Operation

The Pool Cooler operates by utilizing your pool's existing filtration system to create a spray of water, which increases surface area exposure to air, facilitating evaporative cooling. This process naturally lowers the water temperature without consuming additional electricity.

Tips for Best Results:

• For optimal cooling, run your pool's filtration system at night when ambient air temperatures are cooler.
• Consider installing multiple Pool Coolers at each return jet for maximum cooling efficiency, especially for larger pools.
• If your pool has multiple return jets and you desire an increased spray pattern from the Pool Cooler, you may use a plug (sold separately) to block other open return jets, directing more flow through the Pool Cooler.

Image: Illustration demonstrating the significant temperature reduction achieved by using the Pool Cooler.

Image: A graph illustrating typical pool water temperature changes over 10 days, comparing temperatures with and without the Pool Cooler. Results are typical for 20,000-30,000 gallon size pools with the filter system running daily from early morning to noon.

Maintenance

The mistcooling Pool Cooler requires minimal maintenance. Periodically inspect the sprayer pipe for any debris or mineral buildup that might obstruct the spray holes. If blockages are present, gently clean the holes using a small brush or a thin, non-abrasive tool. Ensure the connections remain hand-tight to prevent leaks and maintain optimal performance.

Troubleshooting

Common Issues and Solutions:

• Insufficient Water Spray:
  - Ensure your pool pump is running and providing adequate water flow.
  - Check for any blockages in the sprayer pipe holes and clean if necessary.
  - Verify that the header pipe is securely hand-tightened into the pool wall fitting.
  - If you have multiple return jets, consider blocking unused jets with a plug (sold separately) to increase pressure to the Pool Cooler.
• Pool Water Not Cooling:
  - Confirm that the Pool Cooler is installed correctly and the sprayer holes are facing into the pool.
  - Ensure the pool filtration system is running, especially during cooler evening hours, to maximize evaporative cooling.
  - For larger pools or extreme heat, consider installing additional Pool Coolers.
• Difficulty Attaching to Pool Fitting:
  - The Pool Cooler is designed to work with most standard in-ground pool wall fittings without removing the existing threaded fitting. Ensure you are only removing the eye ball and retainer ring, and using your pool's existing retainer ring to secure the Pool Cooler. If you encounter significant difficulty, double-check compatibility with your specific pool return jet type.

Specifications

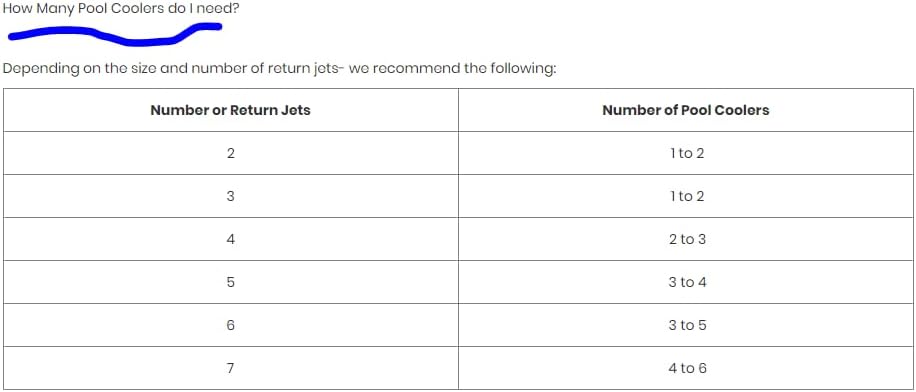

Image: A table providing recommendations on the number of Pool Coolers needed based on the number of return jets in your pool.

Warranty and Support

For any questions, technical assistance, or support regarding your mistcooling Pool Cooler, please contact our dedicated support team. We offer 24/7 support from Texas to assist you.

Support Contact:

• Email: support@mistcooling.com
• Phone: 281-633-0109
• Toll-Free: 1-888-493-5967

Please refer to your purchase documentation for specific warranty details.
