Haier HFR5719EWMP Fridge Freezer User Manual

Introduction

This user manual provides essential information for the safe and efficient operation, installation, and maintenance of your Haier HFR5719EWMP Non-Plumbed Total No Frost American Fridge Freezer. Please read this manual thoroughly before using the appliance and keep it for future reference.

Safety Information

Always follow basic safety precautions when using electrical appliances to reduce the risk of fire, electric shock, and injury. This appliance is intended for household use only.

• Ensure the appliance is properly grounded.
• Do not damage the refrigerant circuit.
• Do not use electrical appliances inside the food storage compartments.
• Unplug the appliance before cleaning or performing maintenance.
• Keep ventilation openings clear of obstruction.
• Do not store explosive substances such as aerosol cans with a flammable propellant in this appliance.

Setup and Installation

Proper installation is crucial for the performance and longevity of your fridge freezer.

Unpacking

Carefully remove all packaging materials. Inspect the appliance for any damage. Report any damage to your retailer immediately.

Placement

This is a freestanding appliance. Place it on a firm, level surface away from direct sunlight, heat sources (like ovens or radiators), and extreme cold. Ensure adequate ventilation around the appliance. Allow sufficient space for the doors to open fully.

Figure 1: Appliance dimensions. The Haier HFR5719EWMP measures approximately 190 cm in height, 70 cm in width, and 67.5 cm in depth. Ensure sufficient clearance for door opening.

Electrical Connection

Connect the appliance to a dedicated, properly grounded electrical outlet. Ensure the voltage matches the rating label on the appliance (230 Volts).

Initial Power-On

After positioning, wait at least 4 hours before plugging in the appliance to allow the refrigerant fluids to settle. Once plugged in, the appliance will begin to cool. Allow several hours for the internal temperature to stabilize before loading with food.

Operating Instructions

Your Haier HFR5719EWMP fridge freezer is designed for optimal food preservation with advanced features.

Figure 2: Front view of the Haier HFR5719EWMP fridge freezer, showcasing its Platinum Inox finish and external water dispenser.

Temperature Control

The appliance features an easy-to-use digital touch screen control panel on the exterior. This allows you to independently set the temperature for both the fridge and freezer compartments without opening the doors. Refer to the display for current temperature settings and adjustment options.

Total No Frost Technology

The Total No Frost system prevents ice build-up in both the fridge and freezer compartments, eliminating the need for manual defrosting. This ensures consistent cooling and better food preservation.

Air Surround Fresher Tech

This technology ensures a gentle and homogeneous distribution of cold air throughout the fridge cavity via special lateral outlets. This prevents direct airflow on food, reducing weight loss and drying, thus maintaining food taste, consistency, and juiciness.

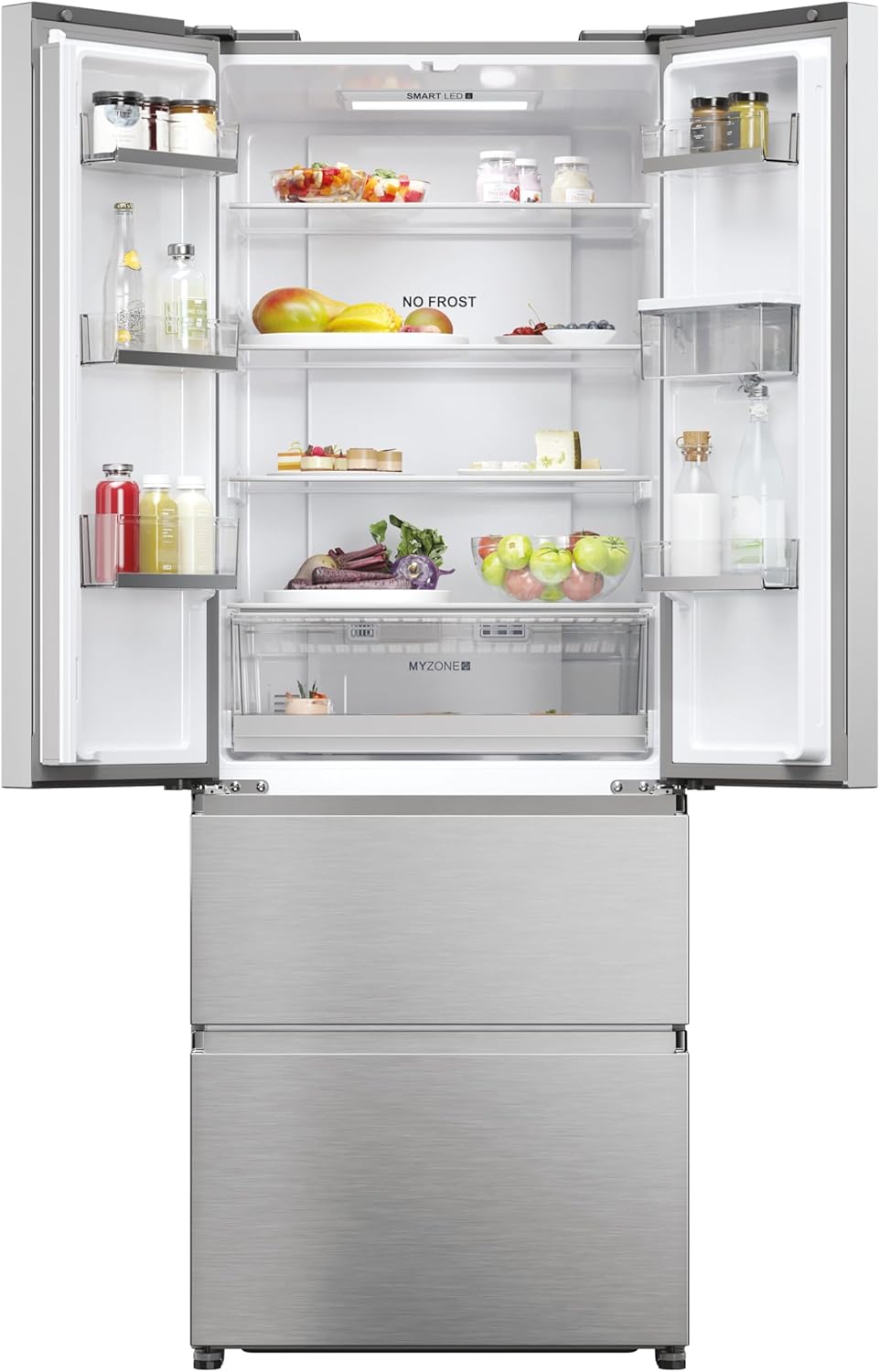

Figure 3: Interior view of the fridge and freezer sections, showing shelves, door bins, and the MyZone compartment.

Direct Access Freezer Drawers

The freezer section features direct access drawers, providing quick and easy access to frozen items. This design also offers a vastly improved view of the contents compared to traditional hinged doors and helps reduce energy wastage by minimizing cold air escape when opened.

Figure 4: A freezer drawer pulled out, showing various frozen food items stored within, highlighting the easy access design.

Non-Plumbed Water Dispenser

The external water dispenser provides chilled water on demand. It is non-plumbed, meaning you simply fill the internal water tank as needed. This offers convenience without the requirement for a direct water connection.

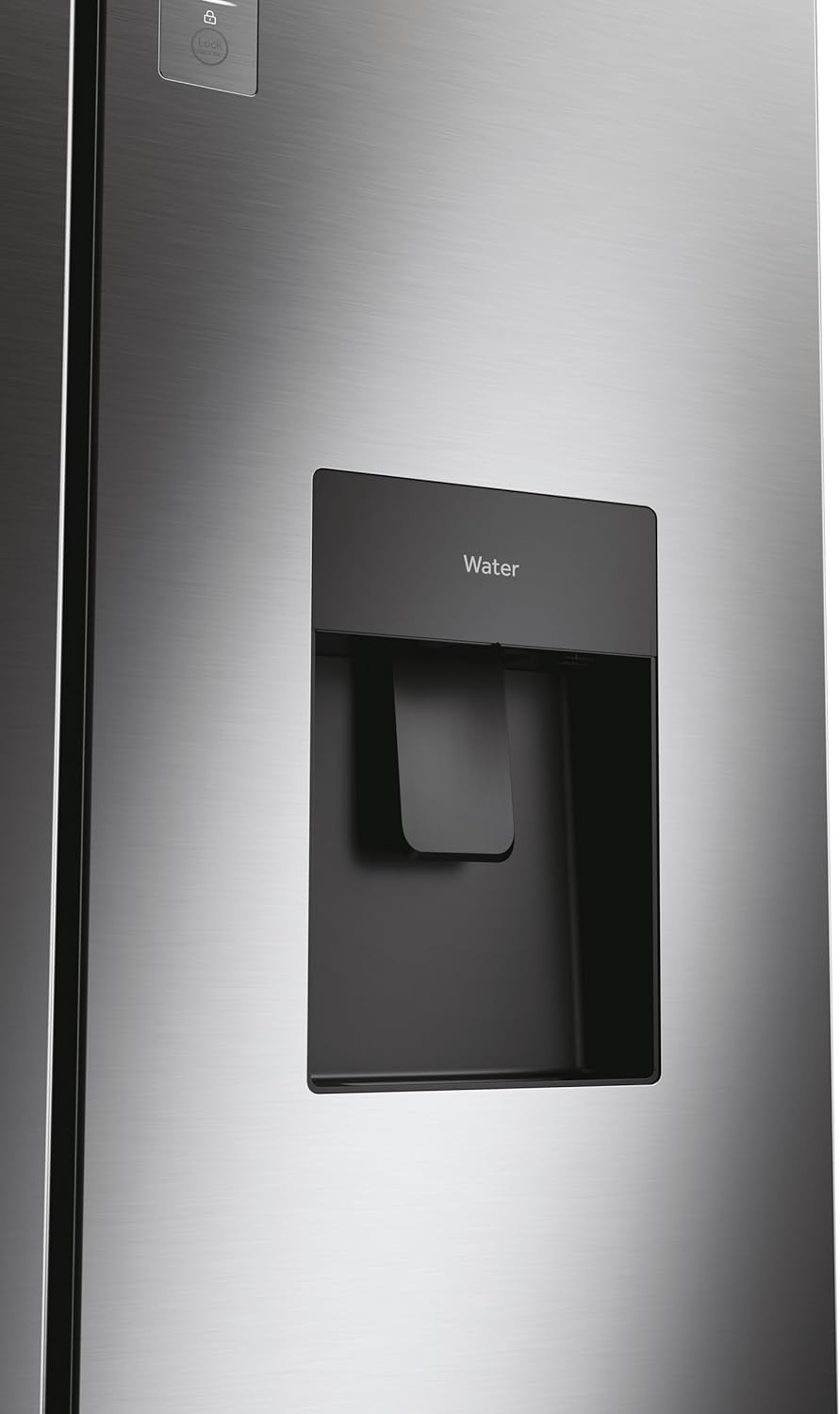

Figure 5: Close-up view of the integrated water dispenser on the fridge door, ready for use.

MyZone Compartment

The MyZone compartment allows you to adjust its temperature independently to suit different food storage needs, such as chilling drinks, preserving delicate foods, or quick freezing. Consult the control panel for MyZone settings.

Figure 6: The MyZone compartment, shown with various food items, demonstrating its versatility for specialized storage.

Wine Rack

A dedicated wine rack is included for convenient and safe storage of bottles within the refrigerator compartment.

Maintenance and Care

Regular cleaning and maintenance will ensure your appliance operates efficiently and extends its lifespan.

Cleaning the Interior

Before cleaning, unplug the appliance. Clean the interior with a soft cloth dampened with a solution of lukewarm water and a mild, non-abrasive detergent. Rinse and dry thoroughly. Do not use harsh chemicals or abrasive cleaners.

Cleaning the Exterior

Wipe the exterior surfaces with a soft, damp cloth. For the Platinum Inox finish, use a specialized stainless steel cleaner if necessary, following the product instructions. Avoid getting water into the control panel area.

Water Dispenser Cleaning

Regularly clean the water tank and dispenser nozzle to prevent bacterial growth. Remove the tank, wash with warm soapy water, rinse thoroughly, and air dry before reassembling.

Power Outage

In case of a power outage, keep the doors closed to maintain the internal temperature for as long as possible. The appliance can typically maintain safe temperatures for several hours.

Troubleshooting

Before contacting service, refer to the following common issues and their solutions:

Specifications

Key technical specifications for the Haier HFR5719EWMP Non-Plumbed Total No Frost American Fridge Freezer:

• Model: HFR5719EWMP
• Brand: Haier
• Type: Freestanding American Fridge Freezer
• Colour: Platinum Inox
• Total Capacity: 444 Litres
• Fridge Capacity: 140 Litres
• Freezer Capacity: 304 Litres
• Dimensions (H x W x D): 190 cm x 70 cm x 67.5 cm
• Weight: 95 kg
• Energy Efficiency Class: E
• Annual Energy Consumption: 298 kWh/annum
• Noise Level: 37 dB
• Defrost System: Automatic (Total No Frost)
• Special Features: Non-Plumbed Water Dispenser, MyZone, Direct Access Drawers, Air Surround Fresher Tech, Digital Touch Control, Wine Rack.

Figure 7: The energy label for the Haier HFR5719EWMP, indicating its E energy efficiency class and annual energy consumption.

Figure 8: Product Information Sheet providing detailed technical data and compliance information for the Haier HFR5719EWMP.

Warranty and Support

Haier offers comprehensive support for your appliance.

Warranty Information

This Haier appliance comes with a 10-year parts warranty and 2 years labour warranty. Please retain your proof of purchase for warranty claims. For full terms and conditions, refer to the warranty card included with your product or visit the official Haier website.

Customer Support

For technical assistance, spare parts, or to schedule a service appointment, please visit the official Haier support website or contact their customer service line. You can find more information and contact details on the Haier Store on Amazon or the main Haier website.
