1. Introduction

This manual provides essential instructions for the safe and efficient operation, maintenance, and troubleshooting of your MCP BX42S 4"x10" PTO Tractor Wood Chipper Shredder. Please read this manual thoroughly before assembly, operation, or maintenance to ensure proper use and to prevent injury or damage.

The MCP BX42S is designed for chipping wood material up to 4 inches in diameter, utilizing your tractor's Power Take-Off (PTO) system. It features an oversized rotor with reversible blades for extended life and efficient performance.

2. Safety Information

WARNING: Failure to follow safety instructions can result in serious injury or death.

• Always wear appropriate personal protective equipment (PPE), including safety glasses, hearing protection, gloves, and sturdy footwear.
• Ensure all guards and safety devices are in place and functioning correctly before operation.
• Keep hands, feet, and clothing away from moving parts, especially the feed chute and discharge chute.
• Never operate the chipper without the tractor's PTO shield and the chipper's PTO shaft guard properly installed.
• Maintain a safe distance from the chipper during operation. Keep bystanders, children, and pets away from the work area.
• Ensure the tractor is securely parked with the engine off and PTO disengaged before performing any adjustments, maintenance, or clearing jams.
• Do not feed material larger than the specified capacity (4 inches).
• Operate the chipper on level ground to prevent tipping.
• Be aware of potential kickback when feeding branches.
• Never attempt to clear a jam with the engine running or PTO engaged.

3. Setup and Assembly

The MCP BX42S chipper is shipped professionally crated. Careful unpacking and assembly are required.

3.1 Unpacking

• Carefully remove the chipper from its wooden crate. Inspect for any shipping damage.
• Identify all components against the packing list (not provided in this manual, refer to your product packaging).

3.2 Attaching to Tractor

1. Ensure your tractor meets the recommended HP range of 18 to 50 HP.
2. Position the chipper behind the tractor.
3. Connect the chipper to the tractor's 3-point hitch system. Securely attach the lower lift arms and the top link.
4. Attach the PTO shaft from the chipper to the tractor's PTO spline. Ensure the shaft is properly lubricated and secured with the locking pin.
5. Verify that the PTO shaft length is correct and does not bind at any point in the hitch's range of motion.

Figure 1: MCP BX42S Wood Chipper securely attached to a tractor via a 3-point hitch and PTO shaft.

Figure 2: Side view illustrating the PTO shaft connection from the chipper to the tractor.

4. Operating Instructions

4.1 Pre-Operation Checklist

• Ensure all safety guards are in place.
• Check that all bolts and fasteners are tight.
• Verify the PTO shaft is securely connected and lubricated.
• Inspect the chipper blades for sharpness and damage.
• Clear the work area of debris and ensure adequate space for discharge.

4.2 Starting the Chipper

1. Start the tractor engine and allow it to warm up.
2. Engage the tractor's PTO at a low RPM.
3. Gradually increase the tractor's engine RPM until the chipper rotor reaches the recommended operating speed (540-1000 RPM).

4.3 Feeding Material

• Feed branches and wood material into the hopper opening.
• Feed material slowly and steadily. Do not force material into the chipper.
• Avoid feeding material with excessive dirt, rocks, or metal, as this can damage the blades.
• The chipper uses a gravity feed system. Allow the rotor to pull the material through.

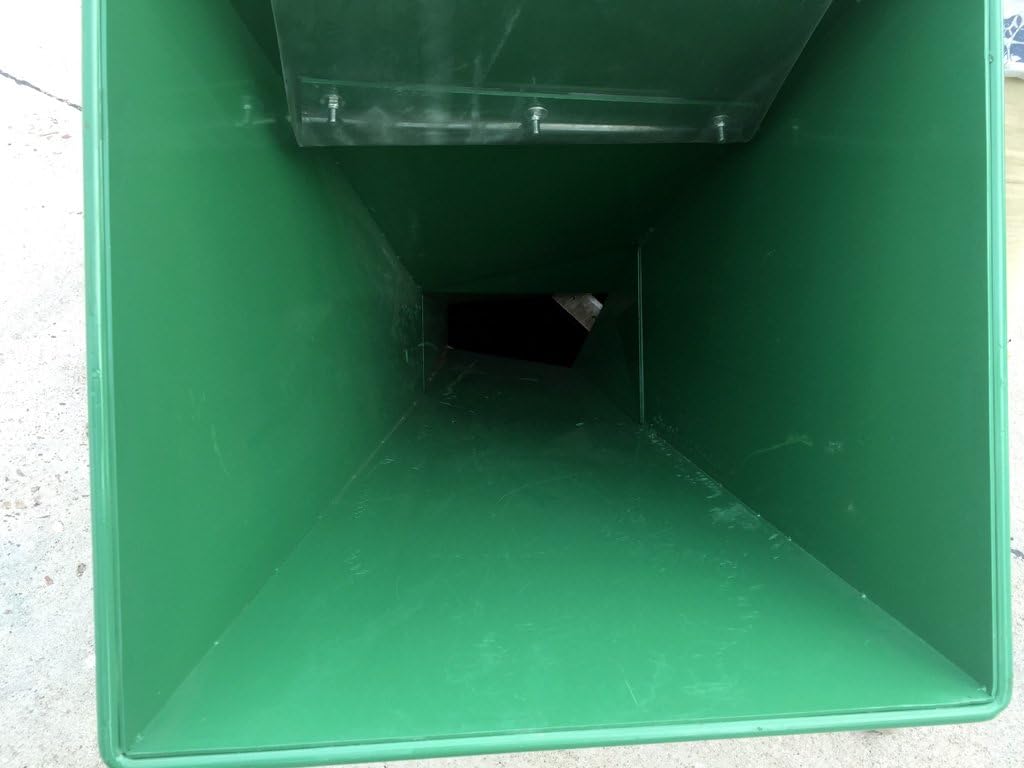

Figure 3: View into the feed hopper, showing the entry point for wood material.

4.4 Shutting Down

1. Stop feeding material into the chipper.
2. Allow the rotor to clear any remaining material.
3. Reduce the tractor's engine RPM to idle.
4. Disengage the PTO.
5. Turn off the tractor engine and remove the key.
6. Allow all moving parts to come to a complete stop before approaching the chipper.

5. Maintenance

Regular maintenance is crucial for the longevity and safe operation of your chipper.

5.1 Blade Inspection and Replacement

• Inspect the reversible hardened steel blades regularly for sharpness, nicks, or damage.
• To access the blades, ensure the chipper is completely shut down and the PTO is disengaged.
• The blades are reversible; when one edge becomes dull, they can be flipped to use the other edge.
• Replace dull or damaged blades promptly. Always replace blades in sets to maintain rotor balance.

Figure 4: Detailed view of the chipper rotor and the reversible blades, highlighting their mounting.

5.2 Lubrication

• Lubricate all grease points, including bearings and the PTO shaft, according to the tractor and chipper manufacturer's recommendations.
• Regular lubrication prevents wear and ensures smooth operation.

5.3 General Inspection

• Check all fasteners for tightness before each use.
• Inspect the discharge chute and hopper for any blockages or damage.
• Ensure the 360-degree rotating discharge hood operates freely.

6. Troubleshooting

For issues not listed here, or if solutions do not resolve the problem, contact customer support.

7. Specifications

8. Warranty Information

The MCP BX42S 4"x10" PTO Tractor Wood Chipper Shredder comes with a 1-Year Warranty from the date of purchase. This warranty covers manufacturing defects in materials and workmanship under normal use and service.

Please retain your proof of purchase for warranty claims. The warranty does not cover damage resulting from misuse, neglect, accidents, improper maintenance, unauthorized modifications, or normal wear and tear.

For specific warranty terms and conditions, please refer to the documentation included with your product or contact customer support.

9. Customer Support

For technical assistance, parts, or warranty inquiries regarding your MCP BX42S Wood Chipper Shredder, please contact your authorized dealer or the manufacturer.

• Brand: MCP BX42S Chipper
• Manufacturer: WP PTO Wood Chipper
• Seller (if applicable): MCP-Distributions

When contacting support, please have your model number (BX42S) and proof of purchase readily available.
