1. Introduction
Welcome to the user manual for the LGB ZF121DX Dishwasher Pump. This document provides essential information for the safe and efficient installation, operation, and maintenance of your new pump. Please read these instructions carefully before use and retain them for future reference.
2. Product Overview
The LGB ZF121DX is a high-quality replacement pump designed for various commercial dishwashers. It ensures efficient water circulation for optimal cleaning performance.

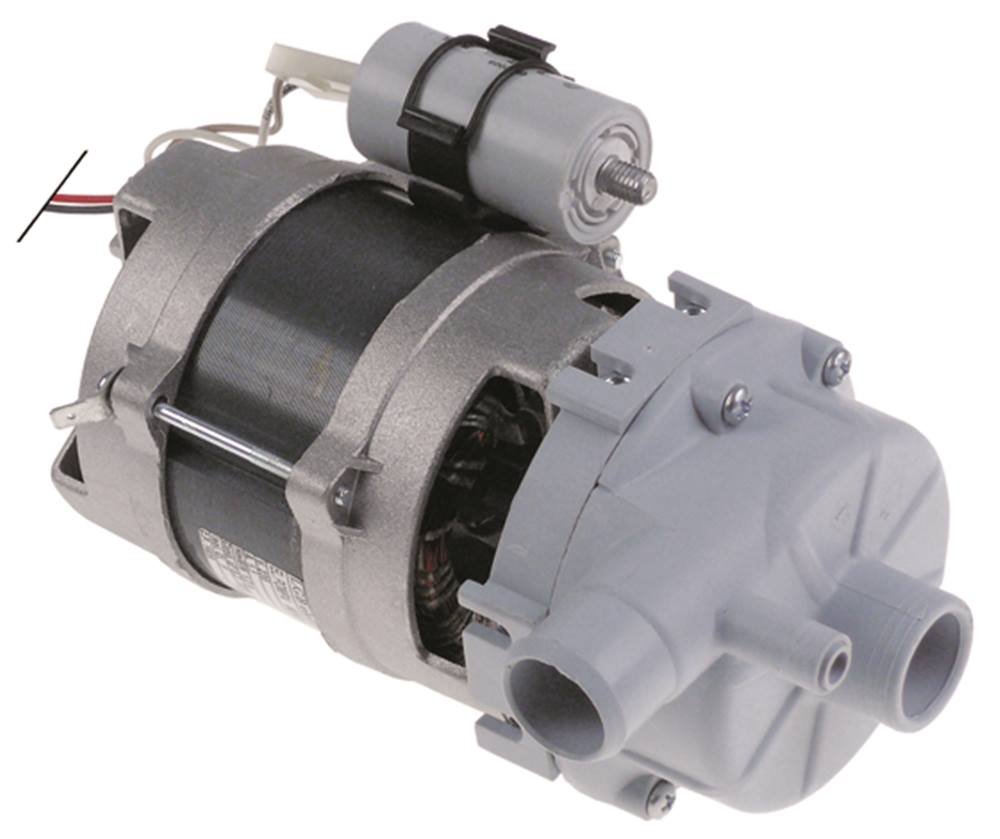

An image showing the LGB ZF121DX dishwasher pump, highlighting its compact design and connection points.
Key Features:
- Compatibility: Designed for dishwashers
- Outlet Diameter: Ø 28 mm
- Inlet Diameter: Ø 28 mm
- Frequency: 50 Hz
- Capacitor: 6.3 µF
3. Technical Specifications
| Manufacturer | LGB |
| Model | ZF121DX |
| Manufacturer Part Number | 4251391378797 |
| Application | Dishwashers |
| Power | 0.25 kW |
| Voltage | 230 V |
| Frequency | 50 Hz |
| Inlet Diameter | Ø 28 mm |
| Outlet Diameter | Ø 28 mm |
| Capacitor | 6.3 µF |
| Direction | Left |
| Length | 195 mm |
| Number of Phases | 1 |
| ASIN | B07433NGB2 |
4. Safety Information
Always prioritize safety when handling electrical components. Failure to follow these safety guidelines may result in injury or damage to equipment.
- Disconnect Power: Always disconnect the dishwasher from the main power supply before attempting any installation, maintenance, or repair.
- Qualified Personnel: Installation and major maintenance should be performed by qualified and experienced personnel.
- Proper Grounding: Ensure proper electrical grounding is maintained according to local electrical codes.
- Inspect for Damage: Do not operate or install the pump if it appears damaged.
- Consult Dishwasher Manual: Refer to your specific dishwasher's original service manual for additional safety guidelines and procedures.
5. Setup and Installation
This section provides general guidelines for installing the LGB ZF121DX pump. Always consult the specific service manual for your dishwasher model for detailed, model-specific installation instructions.
- Disconnect Power: Ensure the dishwasher is completely disconnected from the main power supply at the circuit breaker.
- Drain Water: Drain any remaining water from the dishwasher system to prevent spills.
- Access Pump: Locate and access the existing pump. This may involve carefully removing dishwasher panels or other components.
- Disconnect Hoses and Wiring: Carefully disconnect the inlet and outlet hoses and electrical wiring from the old pump. Make note of their positions and connections for correct reinstallation.
- Remove Old Pump: Unmount and remove the old pump from its housing.
- Install New Pump: Position the LGB ZF121DX pump in the designated location. Secure it firmly using the appropriate fasteners.
- Reconnect Hoses and Wiring: Reconnect the inlet and outlet hoses, ensuring a tight, leak-free seal. Reconnect electrical wiring according to the original configuration, ensuring all connections are secure.
- Test: Before fully reassembling the dishwasher, perform a leak test and functional check by running a short cycle to ensure proper operation and no leaks.
6. Operating Instructions
The LGB ZF121DX pump operates automatically as an integral part of your dishwasher's wash and drain cycles. No direct user interaction is required for pump operation. Ensure your dishwasher is loaded correctly, and detergent is added as per its own operating instructions.
7. Maintenance
Regular maintenance helps prolong the life and ensure the efficient operation of your dishwasher pump.
- Regular Cleaning: Periodically inspect the pump area for debris, food particles, or foreign objects that may obstruct the impeller. Clear any blockages carefully after disconnecting power.
- Check for Leaks: Routinely check hose connections and the pump housing for any signs of water leaks. Tighten connections or replace seals if necessary.
- Inspect Wiring: Ensure electrical connections to the pump are secure and free from corrosion.
- Professional Inspection: For commercial settings, consider scheduling professional inspection and maintenance as part of a regular service plan for your dishwasher.
8. Troubleshooting
If your dishwasher is not functioning correctly, the pump may be a contributing factor. Use the following table for basic troubleshooting.
| Problem | Possible Cause | Solution |
|---|---|---|
| Dishwasher not draining | Clogged pump, faulty pump, blocked drain hose. | Disconnect power. Check for obstructions in the pump and drain hose. If clear, the pump may be faulty and require replacement. |
| Unusual noise from dishwasher | Debris in pump, worn bearings. | Disconnect power. Inspect pump for foreign objects. If noise persists after clearing, professional service may be required to assess worn components. |
| Poor wash performance | Reduced pump efficiency, low water pressure. | Ensure pump is free of obstructions. Check water supply pressure to the dishwasher. |
For complex issues or if troubleshooting steps do not resolve the problem, contact a qualified service technician.
9. Warranty and Support
For warranty information and technical support regarding your LGB ZF121DX dishwasher pump, please refer to the documentation provided with your original purchase or contact your supplier. The manufacturer, LGB, can also be contacted through their official channels for product-specific inquiries.
Manufacturer: LGB
Manufacturer Part Number: 4251391378797
ASIN: B07433NGB2
