Brush Cutter Grass Trimmer 1E34F Cylinder Set Instruction Manual

1. Introduction

This manual provides essential information for the proper installation, usage, and maintenance of the 1E34F Cylinder Set. This component is a critical replacement part for compatible brush cutters and grass trimmers, designed to restore engine performance. Please read this manual thoroughly before attempting any installation or maintenance procedures.

2. Safety Information

WARNING: Always prioritize safety. Improper installation or handling can lead to serious injury or damage to equipment.

• Always disconnect the spark plug wire or battery before performing any work on the engine to prevent accidental starting.
• Wear appropriate personal protective equipment (PPE), including safety glasses, gloves, and sturdy footwear.
• Ensure the work area is well-lit and clear of obstructions.
• If you are unsure about any step, consult a qualified technician or refer to the original equipment manufacturer's service manual for your specific brush cutter/grass trimmer model.
• Keep all parts and tools away from children and pets.

3. Package Contents

Verify that all components listed below are present and undamaged upon opening the package:

• 1 x Cylinder Block (Dia 34mm)
• 1 x Piston
• 2 x Piston Rings
• 1 x Piston Pin
• 2 x Circlips
• 1 x Gasket Set (typically includes cylinder base gasket and exhaust gasket)

Figure 3.1: Complete 1E34F Cylinder Set components as typically supplied.

4. Installation Guide

This cylinder set is a precision engine component. Installation should ideally be performed by individuals with mechanical experience or a qualified technician. Refer to your specific brush cutter/grass trimmer service manual for detailed disassembly and reassembly procedures.

General Installation Steps (Consult your specific engine manual for details):

1. Preparation: Ensure the engine is clean and free of debris. Disconnect the spark plug wire.
2. Disassembly: Carefully remove the old cylinder, piston, and associated gaskets. Note the orientation of all parts.
3. Crankcase Inspection: Inspect the crankcase and crankshaft for any damage or wear. Clean the gasket mating surfaces thoroughly.
4. Piston Assembly: Install the piston rings onto the new piston, ensuring correct orientation (if applicable). Install the circlips and piston pin, securing the piston to the connecting rod.
5. Gasket Placement: Place the new cylinder base gasket onto the crankcase, ensuring proper alignment.
6. Cylinder Installation: Carefully slide the new cylinder over the piston, compressing the piston rings as it slides down. Ensure the cylinder is seated correctly on the gasket.
7. Fastening: Secure the cylinder to the crankcase using the appropriate bolts, tightening them to the manufacturer's specified torque settings in the correct sequence.
8. Reassembly: Reinstall other engine components (e.g., carburetor, exhaust, spark plug) that were removed during disassembly.
9. Initial Start-up: After reassembly, add fresh fuel/oil mixture (if 2-stroke) and perform a careful initial start-up, checking for leaks or unusual noises.

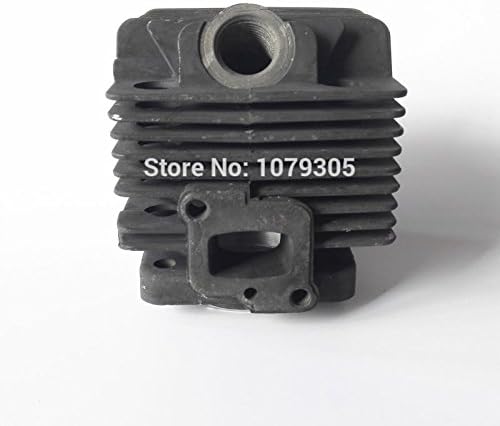

Figure 4.1: Detailed view of the 1E34F cylinder block.

5. Usage Considerations

The 1E34F Cylinder Set is a replacement part designed to restore the compression and combustion efficiency of brush cutter and grass trimmer engines that utilize the 1E34F engine platform. It is not a standalone operating device. Proper function of the engine depends on the correct installation of this cylinder set along with all other engine components (carburetor, ignition, exhaust, etc.).

Ensure that your existing engine is indeed a 1E34F model with a 34mm cylinder diameter to ensure compatibility before installation.

6. Maintenance

Once installed, the cylinder set itself requires no specific ongoing maintenance beyond what is recommended for the overall engine. Adhere to the following general maintenance practices for your brush cutter/grass trimmer:

• Use the correct fuel/oil mixture (for 2-stroke engines) as specified by the original equipment manufacturer.
• Regularly clean or replace the air filter to prevent dirt from entering the engine.
• Inspect the spark plug periodically and replace it if fouled or worn.
• Keep the engine's cooling fins clean to ensure proper heat dissipation.
• Store the equipment properly when not in use, following manufacturer guidelines.

7. Troubleshooting

If you experience issues after installing the new cylinder set, consider the following common troubleshooting steps:

• No Start/Hard Start:
  • Check spark plug for proper gap and condition.
  • Verify fuel supply and carburetor settings.
  • Ensure all electrical connections are secure.
  • Confirm correct piston and ring orientation.
• Loss of Power/Poor Performance:
  • Check for air leaks around the cylinder base gasket or intake manifold.
  • Ensure exhaust port is not clogged.
  • Verify correct carburetor tuning.
• Unusual Noises:
  • Recheck all fasteners for proper torque.
  • Ensure piston pin circlips are properly seated.
  • Inspect for any loose components.

If problems persist, it is recommended to seek assistance from a professional small engine mechanic.

8. Specifications

9. Warranty and Support

Specific warranty information for this Generic 1E34F Cylinder Set is not provided within this manual. For details regarding warranty coverage, returns, or technical support, please refer to the product listing where you purchased this item or contact the seller directly. Keep your proof of purchase for any warranty claims.
