Warehouse of Tiffany CFL-8213AB Havorand 52" 5-Blade Ceiling Fan Crystal Chandelier Instruction Manual
Model: CFL-8213AB | Brand: Warehouse of Tiffany
Introduction
This manual provides comprehensive instructions for the safe installation, operation, and maintenance of your Warehouse of Tiffany CFL-8213AB Havorand 52-inch 5-Blade Ceiling Fan with Crystal Chandelier. Please read all instructions carefully before beginning installation and retain this manual for future reference. Professional installation is highly recommended for this product.
Safety Information
- Always disconnect power at the main circuit breaker before installation or servicing.
- Ensure all electrical connections comply with local codes and ordinances, as well as the National Electrical Code (NEC).
- This product is designed for indoor use only.
- The fan is heavy (approximately 23 pounds); ensure the ceiling support structure can safely hold the weight.
- Do not bend the blade holders during installation, balancing, or cleaning.
- Keep hands clear of the fan blades when the fan is operating.
- Requires (6) E12 @ 40-watt bulbs (not included). Do not exceed the maximum wattage.
- Proposition 65 Warning: This product may contain chemicals known to the State of California to cause cancer and birth defects or other reproductive harm.
Package Contents
Verify that all components are present and undamaged before beginning assembly.
- Ceiling Fan Motor Housing
- 5 Wooden Fan Blades
- Blade Holders
- Crystal Chandelier Assembly (including various high-quality crystal glass shapes)
- Light Kit
- Down Rod (4.9 inches)
- Mounting Bracket
- Hardware Pack (screws, wire nuts, washers)
- Pull Chains (for fan speed and light control)
- Wiring (pre-attached to components)
Setup and Installation
Assembly is required. Professional installation is highly recommended due to the complexity of wiring and crystal assembly.
- Preparation: Turn off power at the circuit breaker. Ensure the mounting location is suitable and can support the fan's weight.
- Mounting Bracket Installation: Secure the mounting bracket to the ceiling junction box. Ensure it is firmly attached to a structural beam or a fan-rated outlet box.
- Wiring: Connect the fan's electrical wires to the household wiring according to the provided wiring diagram (if available) or standard electrical practices. This typically involves connecting live, neutral, and ground wires. Note that the light sockets are not pre-wired and must be manually connected. All black wires should be tied together, and all white wires should be tied together.
- Fan Assembly: Attach the fan motor housing to the mounting bracket. Carefully lift and secure the fan body.
- Blade Attachment: Attach the five wooden blades to the blade holders, then secure the blade holders to the motor housing.
- Chandelier Assembly: This is a multi-step process. Individually attach each crystal piece to the chandelier frame using the provided hooks or nylon wire. Ensure all crystals are securely fastened.
- Light Kit Installation: Connect the light kit wiring to the fan's internal wiring. Install the six E12 @ 40-watt bulbs (not included).
- Final Checks: Double-check all connections and ensure no wires are pinched. Restore power at the circuit breaker.
Image: The Warehouse of Tiffany Havorand 52-inch 5-Blade Ceiling Fan with Crystal Chandelier in brown finish. This image shows the assembled fan with its five wooden blades and the ornate crystal light fixture.
Operating Instructions
The fan features a reversible motor and three selectable speeds, controlled via hand-pull chains or an optional remote (not included).
- Fan Speed Control: Use the pull chain designated for fan speed to cycle through the three available speeds: High (170 RPM), Medium (130 RPM), and Low (100 RPM). Pulling the chain again will turn the fan off.
- Light Control: Use the pull chain designated for the light kit to turn the lights on or off.
- Reversible Motor: A switch on the fan motor housing allows you to reverse the direction of the blades. In warm weather, set the fan to rotate counter-clockwise to create a downdraft cooling effect. In cool weather, set the fan to rotate clockwise to create an updraft, circulating warm air trapped near the ceiling.
Maintenance
Regular maintenance ensures optimal performance and longevity of your ceiling fan.
- Cleaning: To clean the fan, wipe with a soft, damp cloth. Do not use abrasive cleaners or solvents, as they may damage the finish or crystals. For crystals, a mild glass cleaner can be used sparingly on a cloth, avoiding direct spray onto electrical components.
- Blade Cleaning: Dust the fan blades regularly to prevent dust buildup, which can affect balance and airflow.
- Tightening Screws: Periodically check all screws on the fan and light kit to ensure they are tight. Vibration from normal operation can cause them to loosen over time.
- Bulb Replacement: Ensure power is off before replacing any of the six E12 bulbs. Allow bulbs to cool before handling.
Troubleshooting
If you experience issues with your fan, consult the following common problems and solutions.
| Problem | Possible Cause | Solution |
|---|---|---|
| Fan does not start | No power to the fan; Loose wire connections; Incorrect wiring | Check circuit breaker and wall switch. Ensure all wire connections are secure. Verify wiring against diagram. |
| Lights do not work | Bulbs are faulty or loose; Loose wire connections; Incorrect wiring | Replace bulbs. Tighten bulbs. Check light kit wiring connections. |
| Fan is noisy (grinding, rattling) | Loose screws; Unbalanced blades; Obstruction; Crystal pieces hitting each other | Tighten all screws. Check blade balance. Ensure nothing is obstructing the fan's rotation. Adjust crystal pieces to prevent contact. |
| Excessive wobbling | Loose mounting bracket; Unbalanced blades; Incorrect blade installation | Ensure mounting bracket is securely fastened. Check that all blades are installed correctly and are balanced. |
Specifications
| Feature | Detail |
|---|---|
| Model Name | CFL-8213AB |
| Overall Dimensions | 52 inches (Diameter) x 15.75 inches (Height) |
| Blade Length | 20.25 inches |
| Blade Width | 6 inches |
| Blade Pitch | 12 degrees |
| Motor House Size | 4.7 inches (Height) x 11.8 inches (Diameter) |
| Down Rod Length | 4.9 inches |
| Motor Speeds | Level 1: 170 RPM, Level 2: 130 RPM, Level 3: 100 RPM |
| Number of Blades | 5 |
| Light Source | 6 x E12 @ 40W bulbs (not included) |
| Voltage | 120 Volts |
| Material | Metal, Wood, Crystal |
| Finish | Antique Bronze |
| Control Method | Hand-Pull Chain (Remote optional, not included) |
| Certifications | ETL Listed, Energy Star |
| Item Weight | 23 Pounds |

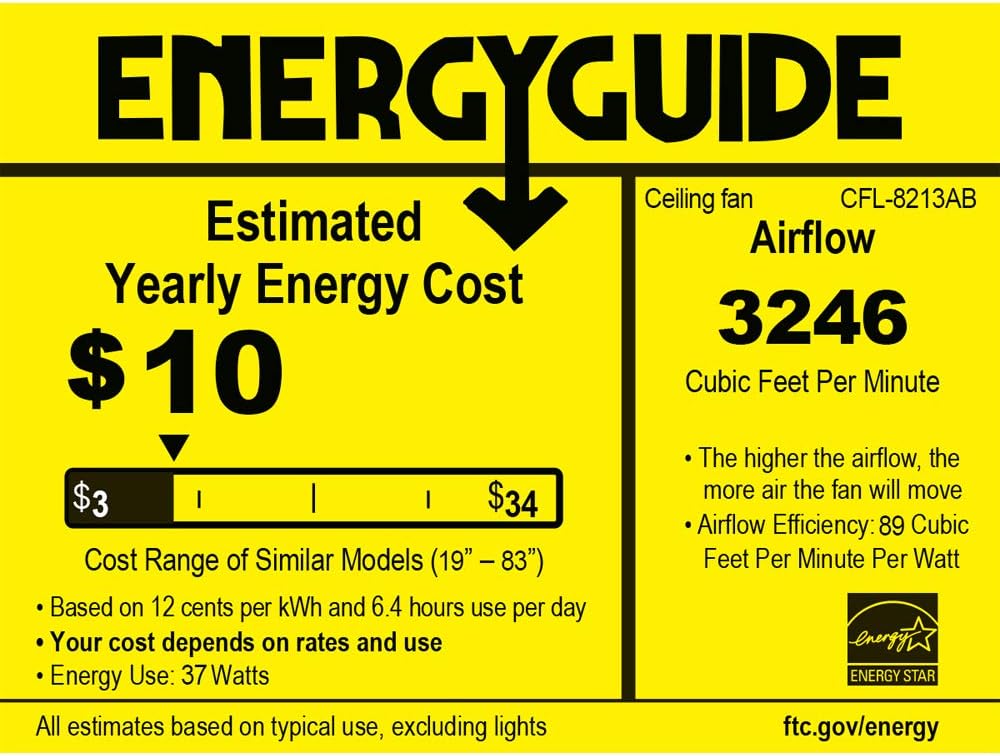

Image: Energy Guide label for the CFL-8213AB ceiling fan. It indicates an estimated yearly energy cost of $10, airflow of 3246 Cubic Feet Per Minute, and airflow efficiency of 89 Cubic Feet Per Minute Per Watt.
Image: Detailed energy information for the CFL-8213AB ceiling fan at high speed. It shows Airflow at 3,246 Cubic Feet Per Minute, Electricity Use at 37 Watts (excluding lights), and Airflow Efficiency at 89 Cubic Feet Per Minute Per Watt. A money-saving tip advises turning off the fan when leaving the room.
Warranty
This product comes with no warranty.
Customer Support
For further assistance or inquiries, please refer to the contact information provided at the point of purchase or visit the official Warehouse of Tiffany website.
Note: This manual is for informational purposes only. Specifications and features are subject to change without notice.
