1. Introduction
This manual provides essential information for the safe and effective assembly, operation, and maintenance of your AmStaff Fitness TR057D Multi-Functional Squat Rack. Please read all instructions carefully before use to ensure proper function and user safety. This equipment is designed for home gym use, supporting various strength training exercises including squats, bench presses, and pull-ups.
Image 1.1: The AmStaff Fitness TR057D Multi-Functional Squat Rack, showcasing its black and red design with adjustable uprights and base.
2. Safety Information
Your safety is paramount. Adhere to the following guidelines to prevent injury and equipment damage:
- Maximum Weight Capacity: The J-hooks and spotter arms are rated for a maximum load of 400 lbs (approximately 181 kg). Do not exceed this weight limit.
- Proper Assembly: Ensure all components are correctly assembled and all bolts are securely tightened before each use. Refer to the assembly section for detailed instructions.
- Stable Placement: Place the squat rack on a flat, stable, and non-slip surface. Using weight plates in the integrated storage can enhance stability, especially when re-racking heavy barbells.
- Floor Protection: The rack features rubber contact points to prevent sliding and protect your floor. Ensure these are intact and properly positioned.
- Regular Inspection: Periodically inspect the rack for any signs of wear, damage, or loose components. Do not use the equipment if any part is damaged or appears unstable.
- Do Not Overtighten Bolts: Overtightening bolts can deform the steel frame. Tighten firmly but avoid excessive force.
- Spotter Use: Always utilize the spotter arms when performing exercises that could result in injury if the weight is dropped. Adjust them to the appropriate height for your exercise.
- Children and Pets: Keep children and pets away from the equipment during use and when unattended.
3. Package Contents
Upon unpacking, verify that all components are present and undamaged. The package includes:
- AmStaff Fitness TR057D Multi-Functional Squat Rack frame components
- J-hooks (barbell holders)
- Spotter arms
- Weight plate storage pegs
- All necessary hardware (bolts, nuts, washers)
Note: Assembly tools (e.g., socket wrench, adjustable wrenches) are not included and must be provided by the user.
4. Assembly Instructions
The AmStaff Fitness TR057D Squat Rack is designed for straightforward assembly. Follow these general steps:
- Unpack Components: Carefully remove all parts from the packaging and lay them out. Check against the package contents list.
- Assemble Base: Connect the base frame components using the provided hardware. Ensure the deep angled rear base is correctly oriented for optimal squat and bench positioning.
- Attach Uprights: Secure the vertical uprights to the assembled base.
- Install J-Hooks and Spotter Arms: Insert the J-hooks and spotter arms into the desired height positions on the uprights. Secure them using the spring-loaded pull pin mechanism.
- Install Weight Plate Storage: Attach the weight plate storage pegs to the designated points on the rear of the rack.
- Final Tightening: Once all components are in place, systematically tighten all bolts. Do not overtighten.
- Stability Check: Gently shake the assembled rack to ensure it is stable and all connections are secure.
Image 4.1: Diagram illustrating key features such as max load for J-hooks and spotters, adjustable height mechanism, plate holders, ergonomic U-shape base, and deep angled rear base.

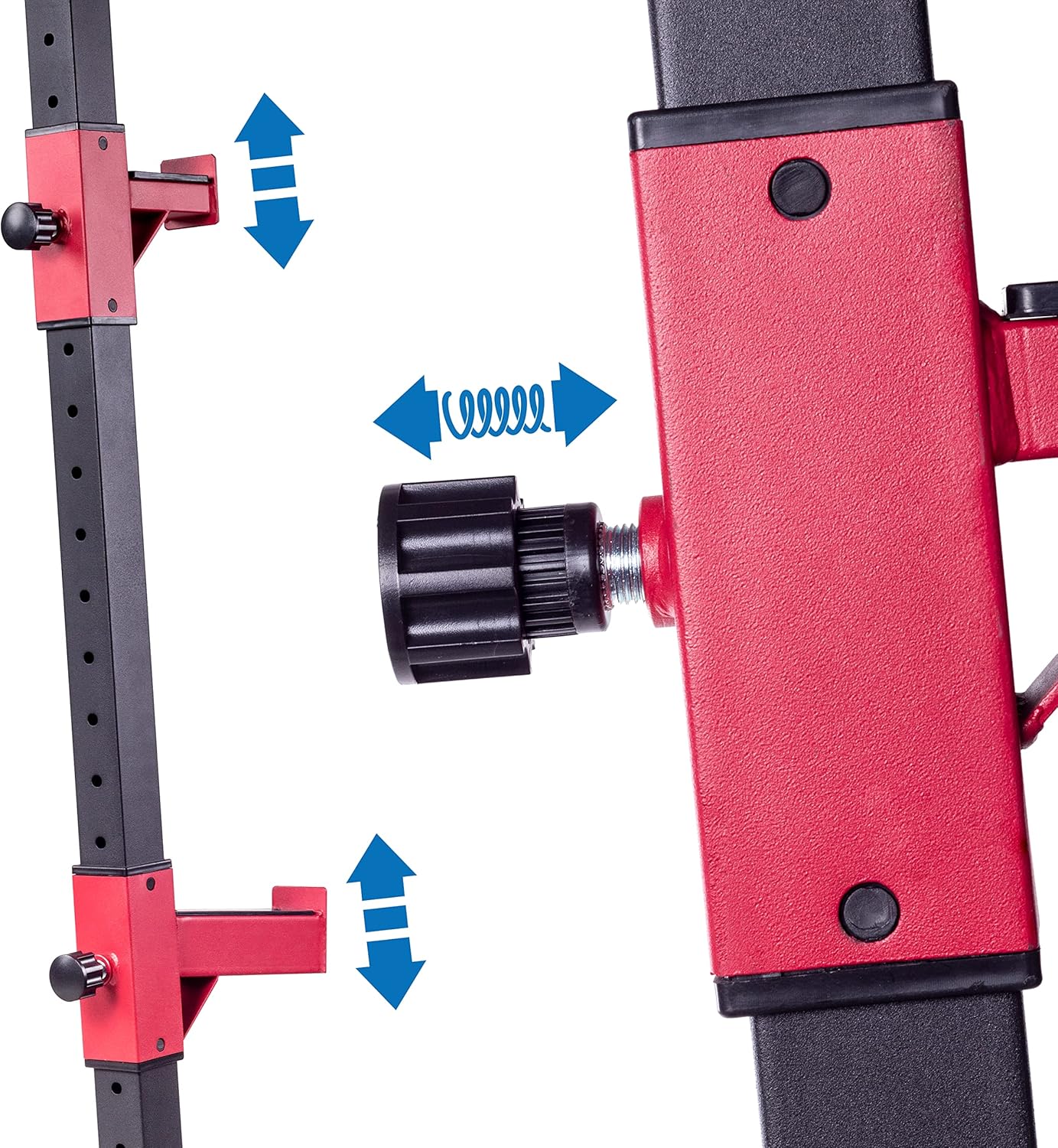

Image 4.2: Close-up view of the spring-loaded pull pin mechanism for easy and quick height adjustment of J-hooks and spotter arms.
5. Operating Instructions
The AmStaff Fitness TR057D Squat Rack offers versatility for various exercises:
- Adjusting Height: To adjust the height of the J-hooks or spotter arms, pull the spring-loaded pin, slide the component to the desired position, and release the pin, ensuring it fully engages in a hole.
- Squats: Position the J-hooks at a height that allows you to unrack the barbell comfortably from your upper back. Ensure spotter arms are set slightly below your lowest squat depth for safety.
- Bench Press: Place a weight bench between the uprights. Adjust the J-hooks to a height that allows you to unrack the barbell with arms extended. Set the spotter arms just above your chest level when lying on the bench.
- Weight Plate Storage: Utilize the integrated weight plate storage pegs at the rear of the rack to keep your workout area organized and to add stability to the rack.
Image 5.1: A barbell resting securely on the J-hooks, which feature anti-slip rubber for grip and protection.
Image 5.2: Close-up of weight plates stored on the integrated storage peg at the rear of the squat rack.
Image 5.3: A collage showing a user performing various exercises, including squats and bench presses, utilizing the AmStaff Fitness squat rack.
6. Maintenance
Regular maintenance ensures the longevity and safe operation of your squat rack:
- Clean Regularly: Wipe down the frame with a damp cloth to remove dust and sweat. Avoid abrasive cleaners.
- Check Bolt Tightness: Periodically check all bolts and nuts for tightness. Retighten as necessary to maintain structural integrity.
- Inspect Rubber Components: Examine the anti-slip rubber on J-hooks, spotter arms, and feet for wear or damage. Replace if necessary to protect your barbell and floor.
- Lubricate Moving Parts: If adjustment pins become stiff, apply a small amount of silicone-based lubricant to ensure smooth operation.
- Address Surface Issues: If paint flaking occurs on J-hooks, consider applying protective tape to prevent damage to your barbell's knurling.
7. Troubleshooting
| Problem | Possible Cause | Solution |
|---|---|---|
| Rack shifts or feels unstable during use. | Loose bolts; uneven floor; insufficient weight on base. | Ensure all bolts are tightened. Place rack on a level surface. Utilize the weight plate storage at the rear with plates to increase stability. |
| Barbell rolls on J-hooks. | J-hooks are perpendicular to angled uprights; anti-slip rubber worn. | Ensure barbell is centered. Inspect and replace anti-slip rubber if worn. Consider adding protective tape to J-hooks if needed. |
| Difficulty adjusting height. | Adjustment pin sticking; debris in holes. | Clean adjustment holes and pin. Apply a small amount of silicone lubricant to the pin mechanism. |
8. Specifications
- Model Number: TR057D
- Material: Alloy Steel
- Color: Black and Red
- Dimensions (H x W x D): 71" x 44" x 40" (180.3 cm x 111.8 cm x 101.6 cm)
- Item Weight: Approximately 27.2 kg (60 lbs)
- Max Load (J-hooks & Spotters): 400 lbs (181 kg)
- Frame Type: Rectangular Frame
- Included Components: Power Rack
- UPC: 680031579111
Image 8.1: The AmStaff Fitness TR057D Squat Rack with its key dimensions (71" H x 44" W x 40" D) indicated.
Image 8.2: Close-up details of the squat rack's construction, highlighting the anti-slip rubber, reinforced triangular design, 2-inch quality steel, and protective rubber feet.
9. Warranty and Support
For warranty information or technical support, please refer to the AmStaff Fitness official website or contact their customer service directly. Keep your purchase receipt as proof of purchase for any warranty claims.
Manufacturer: AmStaff Fitness
Place of Business: Toronto, Ontario M3J 2C6, CA
