Yosoo Mini Portable Handheld Sewing Machine Instruction Manual

1. Important Safety Instructions

Please read all instructions carefully before using the Yosoo Handheld Sewing Machine. Retain this manual for future reference.

• Always keep the machine away from water or damp environments to prevent electric shock.
• Ensure hands are dry before handling the machine, especially when inserting batteries or connecting power.
• The needle is sharp. Exercise extreme caution when handling the needle area to avoid injury.
• Keep the machine out of reach of children. This is not a toy.
• Turn off the machine and remove batteries or disconnect power before cleaning, changing the needle, or performing any maintenance.
• Use only the recommended power source (4 AA batteries or compatible power adapter, not included).
• Do not attempt to sew materials thicker than 1.8mm to prevent damage to the machine.

2. Product Overview

The Yosoo Mini Portable Handheld Sewing Machine is designed for quick repairs and small sewing projects. Its compact size makes it ideal for travel and on-the-go use.

2.1 Package Contents

Verify that all items are present in your package:

• Yosoo Handheld Sewing Machine
• Thread Spindle
• Needle Threader
• Extra Bobbins (quantity may vary)
• Extra Needle

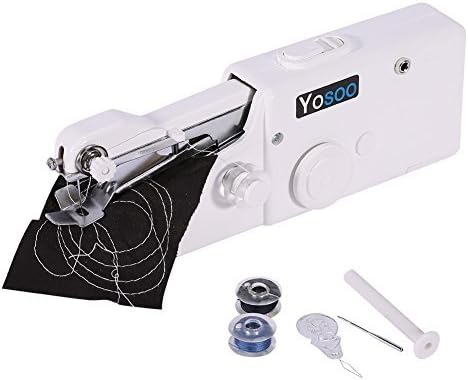

Image: Yosoo Handheld Sewing Machine shown with its standard accessories, including extra bobbins, a needle threader, and a thread spindle.

2.2 Parts Identification

Familiarize yourself with the main components of your sewing machine:

Image: A side view of the Yosoo Handheld Sewing Machine, highlighting its overall structure and compact form factor.

• Power Switch: Located on the top, slides to turn the machine on/off.
• Battery Compartment: On the underside, holds 4 AA batteries.
• Thread Spool Pin: For holding the main thread spool.
• Tension Control: Adjusts thread tension.
• Needle: The sewing component that pierces the fabric.
• Presser Foot: Holds the fabric firmly in place while sewing.
• Feed Dog: Moves the fabric forward during stitching.

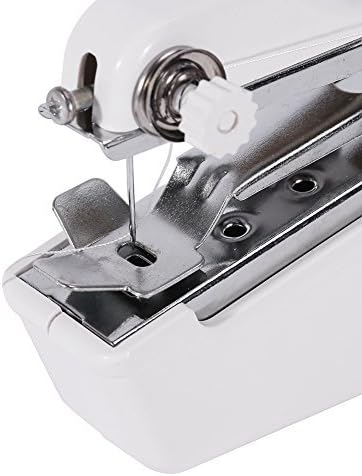

Image: A detailed close-up of the needle and presser foot assembly, showing the critical components for stitching.

3. Setup

3.1 Battery Installation

The machine requires 4 AA batteries (not included) or can be powered by a compatible DC 6V power adapter (not included).

1. Locate the battery compartment on the underside of the machine.
2. Slide the battery compartment cover open.
3. Insert 4 AA batteries, ensuring correct polarity (+/-) as indicated inside the compartment.
4. Close the battery compartment cover securely.

Image: The battery compartment on the underside of the sewing machine is shown open, ready for battery insertion.

3.2 Threading the Machine

Correct threading is crucial for proper operation.

1. Place a spool of thread onto the thread spool pin.
2. Guide the thread through the first thread guide (usually a small metal loop or hook).
3. Pass the thread through the tension control disc. Ensure the thread is seated correctly within the discs.
4. Continue guiding the thread through the remaining thread guides towards the needle.
5. Use the needle threader to pass the thread through the eye of the needle from front to back. Pull about 10-15 cm of thread through the needle eye.

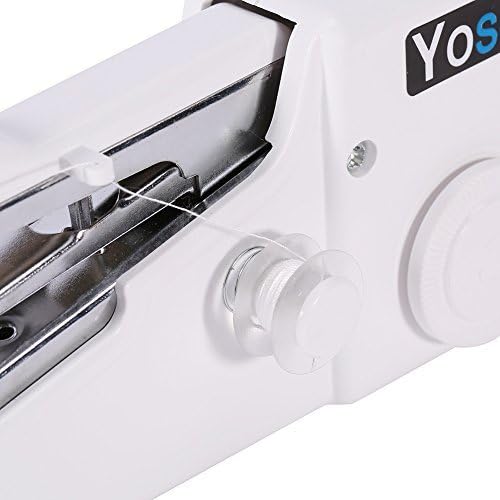

Image: A close-up view of the thread spool correctly placed on its pin, ready for threading.

4. Operating Instructions

4.1 Preparing to Sew

1. Ensure the machine is threaded correctly and batteries are installed.
2. Lift the presser foot using the lever.
3. Place the fabric under the presser foot, aligning the seam line with the needle.
4. Lower the presser foot onto the fabric.

4.2 Starting to Sew

1. Hold the fabric gently with one hand, guiding it straight.
2. Slide the power switch to the 'ON' position. The machine will begin to stitch.
3. Guide the fabric slowly and steadily. Do not pull or push the fabric forcefully, as this can bend the needle or cause skipped stitches.

Image: The handheld sewing machine in operation, demonstrating how it stitches fabric.

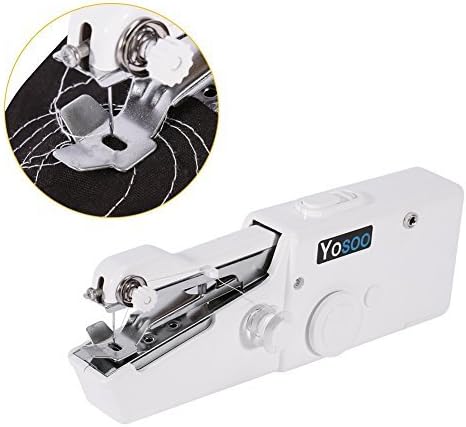

Image: A detailed view of the needle and presser foot as the machine performs a stitch on fabric.

4.3 Finishing a Stitch

1. When you reach the end of your seam, slide the power switch to the 'OFF' position.
2. Lift the presser foot.
3. Gently pull the fabric away from the machine, leaving a few inches of thread.
4. Cut the thread, leaving a tail of about 10-15 cm.
5. Tie off the ends of the thread to secure the stitch.

5. Maintenance

5.1 Cleaning

Regular cleaning helps maintain the machine's performance.

• Always turn off the machine and remove batteries before cleaning.
• Use a soft brush or cloth to remove lint and dust from the needle area and feed dogs.
• Do not use liquid cleaners or solvents, as they may damage the machine's components.

5.2 Needle Replacement

Replace the needle if it becomes bent, dull, or broken.

1. Turn off the machine and remove batteries.
2. Loosen the needle clamp screw (usually located above the needle).
3. Carefully pull out the old needle. Dispose of it safely.
4. Insert a new needle with the flat side facing the back of the machine, pushing it up as far as it will go.
5. Tighten the needle clamp screw securely.

6. Troubleshooting

If you encounter issues, refer to the following common problems and solutions:

7. Specifications

• Brand: Yosoo
• Model: Mini Portable Stitch Sewing Machine
• Color: White
• Material: Plastic
• Power Source: 4 x AA Batteries (not included) or DC 6V Power Adapter (not included)
• Maximum Seam Thickness: 1.8mm
• Product Dimensions (approximate): 20.7cm (Length) x 7.3cm (Height) x 3.4cm (Width)
• ASIN: B073JGFZ5Y
• GTIN/UPC: 736691278618

Image: The Yosoo Handheld Sewing Machine with its approximate dimensions clearly marked for reference.
