Product Overview
The Manfrotto Element Traveller Small Black tripod is designed for enthusiast photographers seeking a compact, reliable, and lightweight travel tripod. Constructed from a sturdy aluminum alloy, this versatile tripod kit extends up to 134 cm and folds down to a mere 32 cm for easy portability. Its telescopic column and independent leg-angle stops allow for flexible positioning on various terrains. The aluminum ball head features smooth movements for framing and a separate 360-degree pan lock for precise panoramic shots. It includes an Arca-type quick release plate with a 1/4-inch-20 camera screw for secure equipment mounting.
Key Features
- Designed for easy transport in backpacks and suitcases.
- Three independent leg angles for versatile positioning on uneven surfaces.
- Telescopic center column for increased maximum height.
- Aluminum ball head with an independent 360-degree pan for panoramic photography.
- Includes an Arca-type quick release plate.
Setup Guide
1. Unfolding the Tripod
Gently pull the legs outwards from the folded position until they lock into place. The legs can be set at three different angles to adapt to various ground conditions. To adjust the leg angle, press the leg angle selector tab at the top of each leg and move the leg to the desired position.
Image: Tripod in a partially folded state, showing the leg structure.
2. Extending the Legs and Center Column
Twist the leg locks counter-clockwise to release each section of the tripod legs. Extend the legs to the desired height and then twist the locks clockwise to secure them. For additional height, loosen the center column locking knob and extend the center column upwards. Tighten the knob to secure the column.

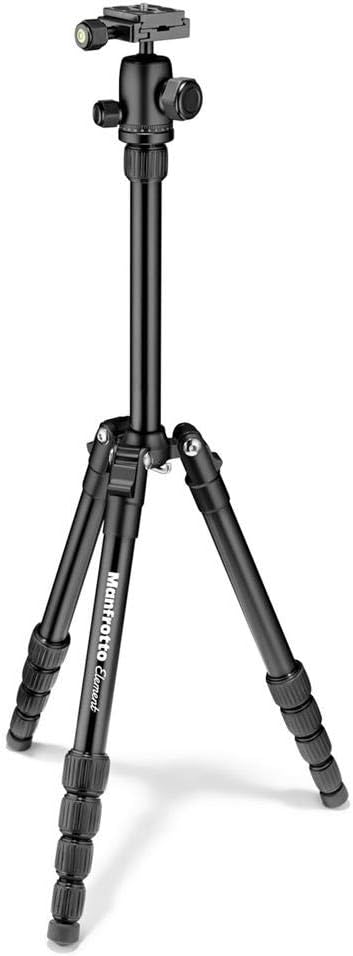

Image: The Manfrotto Element Small Traveller Tripod fully extended, demonstrating its maximum height.
3. Attaching Your Camera
Ensure the quick release plate is securely attached to your camera's 1/4-inch-20 tripod socket. Open the quick release clamp on the ball head by turning the locking knob. Slide the quick release plate with your camera into the clamp until it clicks into place. Tighten the locking knob to secure the camera firmly.
Image: A detailed view of the tripod's ball head and quick release plate mechanism.
Operating Instructions
1. Adjusting the Ball Head
To adjust the camera's angle, loosen the main locking knob on the ball head. Position your camera as desired, then tighten the knob to lock it securely. The ball head allows for smooth, precise adjustments in any direction.
2. Using the Pan Lock
For panoramic photography, the ball head features a separate pan lock. Loosen the small knob located at the base of the ball head to allow 360-degree rotation. Once the desired pan angle is achieved, tighten the knob to secure the head in place.

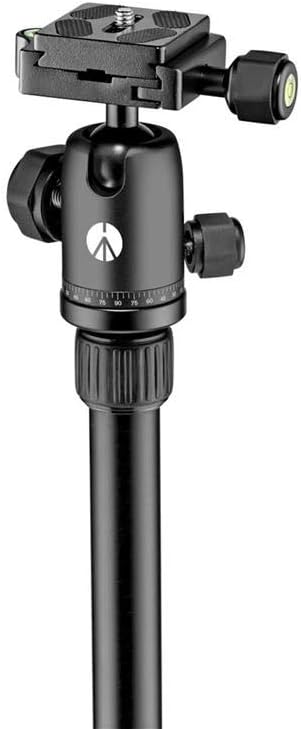

Image: The ball head of the tripod, highlighting the main locking knob and the pan lock.
3. Adjusting Leg Angles
Each leg can be independently adjusted to three different angles. This feature is useful for shooting on uneven terrain or for achieving low-angle shots. Press the leg angle selector tab at the top of each leg to change its angle.
Image: The tripod with its legs spread wide, demonstrating the adjustable leg angles for stability or low-angle shots.
4. Using the Stability Hook
For enhanced stability, especially in windy conditions or with heavier camera setups, a spring-loaded hook is located at the bottom of the center column. You can attach additional weight, such as a camera bag, to this hook.
Maintenance
To ensure the longevity and optimal performance of your Manfrotto Element Small Traveller Tripod, follow these maintenance guidelines:
- Cleaning: Wipe down the tripod with a soft, damp cloth after each use, especially if used in dusty, sandy, or wet environments. Avoid abrasive cleaners or solvents.
- Lubrication: Periodically check the leg locks and ball head for smooth operation. If necessary, apply a small amount of silicone-based lubricant to moving parts, avoiding excessive application.
- Storage: Store the tripod in its padded bag in a dry, cool place away from direct sunlight and extreme temperatures.
- Inspection: Regularly inspect all screws, knobs, and leg locks to ensure they are tight and functioning correctly. Do not overtighten.
Troubleshooting
If you encounter issues with your tripod, refer to the following common problems and solutions:
- Tripod is unstable:
- Ensure all leg sections are fully extended and their twist locks are securely tightened.
- Verify that the leg angle selectors are properly engaged.
- Consider attaching additional weight to the stability hook at the bottom of the center column.
- Camera is not secure on the ball head:
- Check that the quick release plate is correctly seated in the ball head clamp.
- Ensure the quick release plate locking knob is fully tightened.
- Verify that the quick release plate is securely attached to your camera.
- Leg sections are difficult to extend or retract:
- Clean the leg sections to remove any dirt or debris that may be causing friction.
- Apply a small amount of silicone lubricant to the moving parts of the twist locks.
Technical Specifications
| Brand | Manfrotto |
| Model Number | MKELES5BK-BH |
| Material | Aluminum |
| Item Weight | 2.64 pounds (1.2 Kilograms) |
| Weight Limit | 4 Kilograms |
| Maximum Height | 143 Centimeters |
| Minimum Height | 36 Centimeters |
| Folded Dimensions | 32 Centimeters (approx. 12.6 inches) |
| Tripod Head Type | Ball Heads |
| Compatible Devices | Digital Film/Cameras |
Warranty and Support
Manfrotto products are manufactured to high quality standards and are covered by a limited warranty. For detailed warranty information, product registration, or technical support, please visit the official Manfrotto website or contact their customer service. Keep your purchase receipt as proof of purchase.
