Mettler Toledo S7 pH Electrode User Manual

1. Introduction

The Mettler Toledo S7 pH Electrode is an advanced sensor designed for precise pH measurements in various laboratory and industrial applications. This electrode features Intelligent Sensor Management (ISM) technology, which allows it to store calibration data and automatically transfer it to compatible meters, simplifying operation and ensuring data integrity. The S7 electrode is available in open junction versions, specifically suited for challenging samples such as those that are dirty or complex, minimizing clogging and ensuring stable readings. This manual provides essential information for the proper setup, operation, and maintenance of your S7 pH electrode.

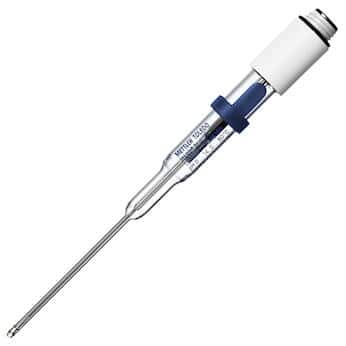

Figure 1: Mettler Toledo S7 pH Electrode. This image displays the physical appearance of the S7 pH electrode, highlighting its robust design and connector.

2. Setup

2.1 Unpacking and Inspection

Carefully remove the S7 pH electrode from its packaging. Inspect the electrode for any visible damage that may have occurred during transit. Ensure the glass bulb and the reference junction are intact. If any damage is observed, do not proceed with setup and contact your supplier.

2.2 Connecting the Electrode

The S7 pH electrode requires a separate cable for connection to your pH meter. Select a compatible cable that matches both the S7 connector on the electrode and the input port on your specific pH meter. Gently attach the cable to the electrode's S7 connector, ensuring a secure fit. Then, connect the other end of the cable to the appropriate input on your Mettler Toledo pH meter or other compatible instrument.

2.3 Initial Conditioning

Before first use or after prolonged dry storage, the electrode requires conditioning. Remove the protective cap and rinse the electrode tip with distilled water. Immerse the electrode tip in a 3 M KCl solution for at least 2 hours, or preferably overnight. This process rehydrates the glass membrane and ensures optimal performance. After conditioning, rinse the electrode again with distilled water before calibration.

3. Operating Instructions

3.1 Calibration

Calibration is crucial for accurate pH measurements. The S7 electrode's ISM technology automatically stores and transfers calibration data to compatible Mettler Toledo meters. Follow your meter's specific instructions for calibration. Typically, this involves:

1. Prepare fresh pH buffer solutions (e.g., pH 4.01, 7.00, 10.00).
2. Rinse the electrode with distilled water and blot dry with a lint-free tissue.
3. Immerse the electrode in the first buffer solution (e.g., pH 7.00) and initiate calibration on the meter.
4. Once stable, rinse the electrode and immerse it in the second buffer solution (e.g., pH 4.01 or 10.00).
5. Repeat for additional buffer points as required by your application or meter.
6. Ensure the temperature compensation is correctly set on your meter, either manually or automatically if an integrated temperature sensor is used.

3.2 Measurement Procedure

After successful calibration:

1. Rinse the electrode thoroughly with distilled water.
2. Immerse the electrode into the sample solution, ensuring the glass bulb and reference junction are fully submerged.
3. Stir the sample gently to ensure homogeneity and allow the reading to stabilize.
4. Record the stable pH value displayed on your meter.
5. For open junction versions, the design helps prevent clogging in dirty or complex samples, allowing for more reliable measurements in such matrices.
6. Between samples, rinse the electrode with distilled water to prevent cross-contamination.

4. Maintenance

4.1 Cleaning the Electrode

Regular cleaning is essential for maintaining electrode performance:

• General Cleaning: Rinse the electrode with distilled water after each use.
• Protein Deposits: Immerse the electrode in a pepsin/HCl solution for several hours or overnight.
• Inorganic Deposits: Immerse the electrode in a 0.1 M HCl or 0.1 M HNO₃ solution for 15-30 minutes.
• Grease/Oil Films: Clean with a mild detergent solution or ethanol, followed by thorough rinsing with distilled water.

Always recondition the electrode in 3 M KCl solution for at least 1 hour after cleaning with specialized solutions.

4.2 Storage

Proper storage extends the life of your electrode:

• For short-term storage (up to a few days), keep the electrode tip immersed in 3 M KCl solution or a dedicated electrode storage solution.
• For long-term storage, ensure the protective cap is filled with 3 M KCl solution and securely placed over the electrode tip. Store the electrode upright in a cool, dark place.
• Never store the electrode in distilled water, as this can deplete the reference electrolyte and damage the glass membrane.

5. Troubleshooting

6. Specifications

• Model: S7 pH Electrode
• Brand: Mettler Toledo
• Connector Type: S7 (requires separate cable)
• Junction Type: Open junction (suitable for dirty/complex samples)
• Technology: Intelligent Sensor Management (ISM)
• Item Weight: 4.8 ounces
• Manufacturer: COLE-PARMER (as listed on product page, though Mettler Toledo is the brand)
• ASIN: B072XFFSVP
• Date First Available: October 13, 2023
• Typical pH Range: 0-14 pH
• Typical Temperature Range: 0-100 °C

7. Warranty Information

Specific warranty terms for the Mettler Toledo S7 pH Electrode are provided by the manufacturer or the authorized seller at the time of purchase. Please refer to the documentation included with your product or contact your point of purchase for detailed warranty information. Keep your proof of purchase for any warranty claims.

8. Customer Support

For technical assistance, service, or further inquiries regarding your Mettler Toledo S7 pH Electrode, please contact Mettler Toledo customer support directly or your authorized distributor. You can typically find contact information on the official Mettler Toledo website or through the seller from whom you purchased the product.

• Mettler Toledo Official Website: www.mt.com
• Seller Support: Refer to your purchase documentation for seller-specific support contacts.
