Introduction
This manual provides essential information for the safe and effective use, installation, and maintenance of your Philips 12454RAC1 H1 Automotive Fog Lamp. Please read these instructions carefully before installation and retain them for future reference. This product is designed for automotive lighting applications, specifically as a fog lamp.
Safety Information
Always observe the following safety precautions to prevent injury or damage:
- Disconnect Power: Ensure the vehicle's ignition is off and the battery is disconnected before attempting any installation or maintenance.
- Wear Protective Gear: Always wear safety glasses and gloves when handling automotive lamps to protect against broken glass or electrical hazards.
- Avoid Touching Glass: Do not touch the glass bulb with bare hands. Oils from your skin can create hot spots, reducing the lamp's lifespan. Use a clean cloth or gloves if handling is necessary.
- Proper Disposal: Dispose of old lamps according to local regulations.
- Professional Installation: If you are unsure about the installation process, consult a qualified automotive technician.
Product Overview
The Philips 12454RAC1 is a high-quality H1 incandescent fog lamp designed for reliable performance in automotive applications. It provides clear illumination to enhance visibility in adverse weather conditions such as fog, rain, or snow.

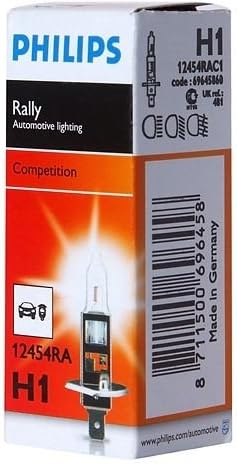

Image: The Philips 12454RAC1 H1 Automotive Fog Lamp shown in its retail packaging. The packaging displays the Philips brand, 'Rally Automotive lighting', 'Competition', and the H1 12454RAC1 model number, along with a barcode and 'Made in Germany' text. The lamp itself is visible through a cutout in the box.
Installation Guide
The installation process for an H1 fog lamp can vary significantly depending on the vehicle make and model. The following steps are general guidelines. Always refer to your vehicle's specific service manual for detailed instructions.
- Preparation: Park your vehicle on a level surface, engage the parking brake, and turn off the engine. Disconnect the negative terminal of the vehicle's battery.
- Access the Fog Lamp Assembly: Locate the fog lamp assembly. This may require removing fender liners, bumper covers, or accessing from under the hood.
- Remove Old Lamp: Disconnect the electrical connector from the old lamp. Carefully unclip or twist to remove the old H1 bulb from its housing.
- Install New Lamp: Insert the new Philips 12454RAC1 H1 lamp into the housing, ensuring it is seated correctly. Do not force it. Reconnect the electrical connector. Remember to avoid touching the glass bulb directly.
- Test Functionality: Reconnect the vehicle's battery. Turn on the vehicle's fog lights to ensure the new lamp is functioning correctly before reassembling any removed parts.
- Reassemble: Securely reattach any components removed during the access phase.
Operation
The Philips 12454RAC1 H1 Fog Lamp operates as an integral part of your vehicle's electrical system. Once installed, it will illuminate when the vehicle's fog light function is activated, typically via a switch on the dashboard or steering column. Refer to your vehicle's owner's manual for specific instructions on operating your fog lights.
Maintenance
The Philips 12454RAC1 H1 Fog Lamp is designed for durability. Regular maintenance is generally limited to periodic inspection and replacement when the lamp reaches the end of its service life.
- Regular Inspection: Periodically check your fog lights for proper operation. If one lamp is out, it is often recommended to replace both lamps on the same axle to ensure balanced illumination and consistent light output.
- Cleaning: Keep the exterior of your fog light lenses clean to maximize light output. Avoid using abrasive cleaners that could scratch the lens.
- Replacement: Replace the lamp when it burns out or if you notice a significant decrease in light intensity. Follow the installation guide for replacement.
Troubleshooting
If your Philips 12454RAC1 H1 Fog Lamp is not functioning as expected, consider the following common issues and solutions:
| Problem | Possible Cause | Solution |
|---|---|---|
| Lamp does not light up | Blown fuse, faulty wiring, incorrect installation, or burnt-out lamp. | Check vehicle's fuse box for a blown fuse and replace if necessary. Inspect wiring for damage. Re-check lamp installation. Replace lamp if burnt out. |
| Lamp flickers or is dim | Loose connection, corrosion on terminals, or low voltage. | Ensure electrical connector is securely attached. Clean any corrosion from terminals. Check vehicle's electrical system for voltage issues. |
| Lamp burns out quickly | Voltage spikes, vibration, or touching the glass during installation. | Have vehicle's electrical system checked for voltage regulation. Ensure lamp is securely mounted to minimize vibration. Always use gloves during installation. |
Technical Specifications
| Specification | Detail |
|---|---|
| Brand | Philips |
| Model Number | 12454RAC1 |
| Lamp Type | H1 Incandescent |
| Voltage | 12 Volts |
| Wattage | 100 Watts |
| Product Dimensions | 10 x 10 x 10 cm |
| Item Weight | 250 g |
| Fit Type | Universal Fit |
| Intended Auto Part Position | Right (for vehicle's fog light assembly) |
| GTIN (EAN) | 08727900370713 |
| Manufacturer | Philips |
Warranty Information
Philips automotive lighting products are manufactured to high quality standards. For specific warranty terms and conditions applicable to your Philips 12454RAC1 H1 Fog Lamp, please refer to the warranty documentation provided with your purchase or visit the official Philips Automotive website. Keep your proof of purchase for any warranty claims.
Support
For further assistance, technical support, or to explore other Philips automotive lighting products, please visit the official Philips Automotive website:
