1. Introduction
Thank you for choosing the ProsKit PM-746 Electronic and Precision Needle Nose Pliers. This tool is designed for intricate tasks requiring precision gripping, bending, and cutting in electronic and fine mechanical applications. Constructed from durable carbon steel with comfortable alloy steel handles, these pliers offer reliability and control for various DIY and professional metalworking projects.
2. Safety Information
Always prioritize safety when using hand tools. Read and understand all instructions before operation.
- Eye Protection: Always wear safety glasses or goggles to protect your eyes from flying debris.
- Proper Grip: Maintain a firm grip on the tool handles to prevent slipping.
- Intended Use: Use the pliers only for their intended purpose. Do not use them as a hammer or pry bar.
- Electrical Safety: These pliers are not insulated against electrical current. Do not use on live electrical circuits.
- Sharp Edges: The cutting edges are sharp. Handle with care to avoid injury.
- Storage: Store the tool in a dry, safe place, out of reach of children.
3. Product Features
The ProsKit PM-746 pliers are engineered for precision and durability:
- Precision Jaws: Fine, tapered jaws for accessing tight spaces and handling small components.
- Cutting Edges: Integrated cutting edges for clean cuts on soft wires.
- Durable Construction: Made from high-quality carbon steel for strength and longevity.
- Comfortable Handles: Ergonomically designed alloy steel handles provide a secure and comfortable grip, reducing hand fatigue.
- Multi-functional: Suitable for gripping, bending, and cutting tasks in electronics, jewelry making, and other precision crafts.

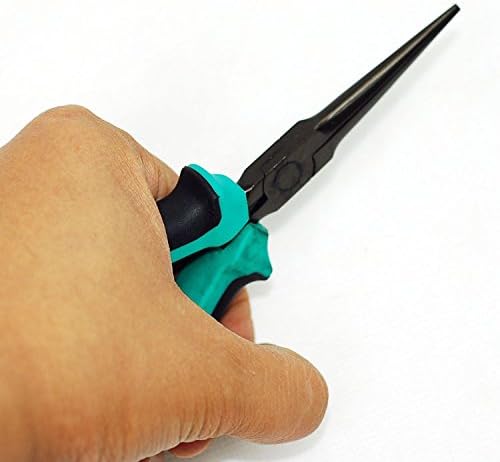

Figure 1: The ProsKit PM-746 Needle Nose Pliers, demonstrating the ergonomic handle design and precision jaws.

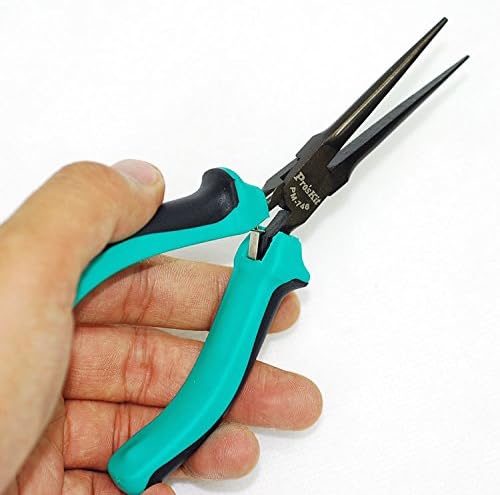

Figure 2: Side view of the ProsKit PM-746 Pliers, highlighting the slender, tapered nose for detailed work.
4. Setup
The ProsKit PM-746 pliers require minimal setup before use.
- Unpacking: Carefully remove the pliers from their packaging.
- Initial Inspection: Inspect the pliers for any signs of damage or manufacturing defects. Ensure the jaws open and close smoothly without excessive play.
- Cleaning: Wipe down the pliers with a clean, dry cloth to remove any protective oils or debris from manufacturing.
5. Operating Instructions
These pliers are versatile for various precision tasks:
- Gripping: Use the tapered jaws to hold small components, wires, or delicate parts securely. Apply gentle, even pressure to avoid damaging the workpiece.
- Bending: The fine tips are ideal for bending small wires or leads into specific shapes. Position the wire at the desired bend point and apply controlled pressure.
- Cutting: The integrated cutting edges are suitable for cutting soft copper or aluminum wires. Position the wire between the cutting edges and squeeze the handles firmly. Do not attempt to cut hardened steel wire or thick cables, as this can damage the cutting edges.
- Reaching Tight Spaces: The long, slender nose allows access to confined areas where larger tools cannot reach.
6. Maintenance
Proper maintenance ensures the longevity and performance of your pliers.
- Cleaning: After each use, wipe the pliers clean with a dry cloth to remove dirt, dust, or residue. For stubborn grime, a mild solvent on a cloth can be used, followed by thorough drying.
- Lubrication: Periodically apply a small drop of light machine oil to the pivot point to ensure smooth operation and prevent rust. Wipe off any excess oil.
- Storage: Store the pliers in a dry environment to prevent corrosion. Keep them away from excessive moisture or corrosive chemicals.
- Inspection: Regularly inspect the jaws and cutting edges for wear or damage. If the cutting edges become dull or chipped, consider professional sharpening or replacement if performance is significantly affected.
7. Troubleshooting
Most issues with hand tools are related to improper use or lack of maintenance.
| Problem | Possible Cause | Solution |
|---|---|---|
| Jaws stiff or squeaky | Lack of lubrication, dirt in pivot | Clean pivot point and apply light machine oil. |
| Cutting edges dull or damaged | Used on hard materials, excessive force | Avoid cutting hard materials. Consider professional sharpening or replacement. |
| Rust formation | Exposure to moisture, improper storage | Clean off rust with fine abrasive, apply protective oil, store in dry conditions. |
8. Specifications
| Feature | Detail |
|---|---|
| Model Number | PM-746 |
| Overall Length | 150mm (approx. 6 inches) |
| Material (Body) | Carbon Steel |
| Handle Material | Alloy Steel |
| Application | Electronic, Precision, Multi-functional |
| Type | Long Nose / Needle Nose |
9. Warranty and Support
For warranty information or technical support regarding your ProsKit PM-746 pliers, please refer to the documentation provided at the point of purchase or contact the retailer/manufacturer directly. Keep your purchase receipt as proof of purchase.
