Whitehaus Collection WHFH-HC1010-C Forever Hot Point of Use Instant Hot and Cold Faucet User Manual

Introduction

This manual provides detailed instructions for the installation, operation, and maintenance of your Whitehaus Collection WHFH-HC1010-C Forever Hot Point of Use Instant Hot and Cold Faucet. Please read this manual thoroughly before installation and use to ensure proper function and safety. Retain this manual for future reference.

Important Safety Information

WARNING: Failure to follow these safety instructions could result in fire, electric shock, serious injury, or property damage.

• Always turn off the main water supply before beginning any installation or maintenance.
• Ensure all plumbing connections are secure and leak-free.
• This faucet is designed for use with a compatible instant hot water tank (e.g., Whitehaus Forever Hot Tank WH-TANK2). Refer to the hot water tank's manual for its specific safety and installation requirements.
• Do not operate the hot water function without a properly installed and filled hot water tank.
• Hot water can cause scalding. Exercise caution when dispensing hot water.
• Installation should be performed by a qualified plumber or technician if you are unsure about any steps.
• Comply with all local plumbing and electrical codes.

Package Contents

Verify that all components are present before beginning installation:

• Whitehaus Collection WHFH-HC1010-C Faucet Assembly
• Mounting Hardware
• Connection Hoses
• Instruction Manual (this document)

Note: The instant hot water tank (e.g., Whitehaus Forever Hot Tank WH-TANK2) is sold separately and is required for the hot water function.

Installation Instructions

Before you begin, ensure you have the necessary tools (e.g., adjustable wrench, screwdriver, plumber's putty or thread sealant, bucket, flashlight) and that the main water supply is turned off.

1. Prepare the Mounting Surface

The faucet requires a single hole for installation. Ensure the mounting surface is clean and free of debris. Refer to the dimensional drawing for precise measurements.

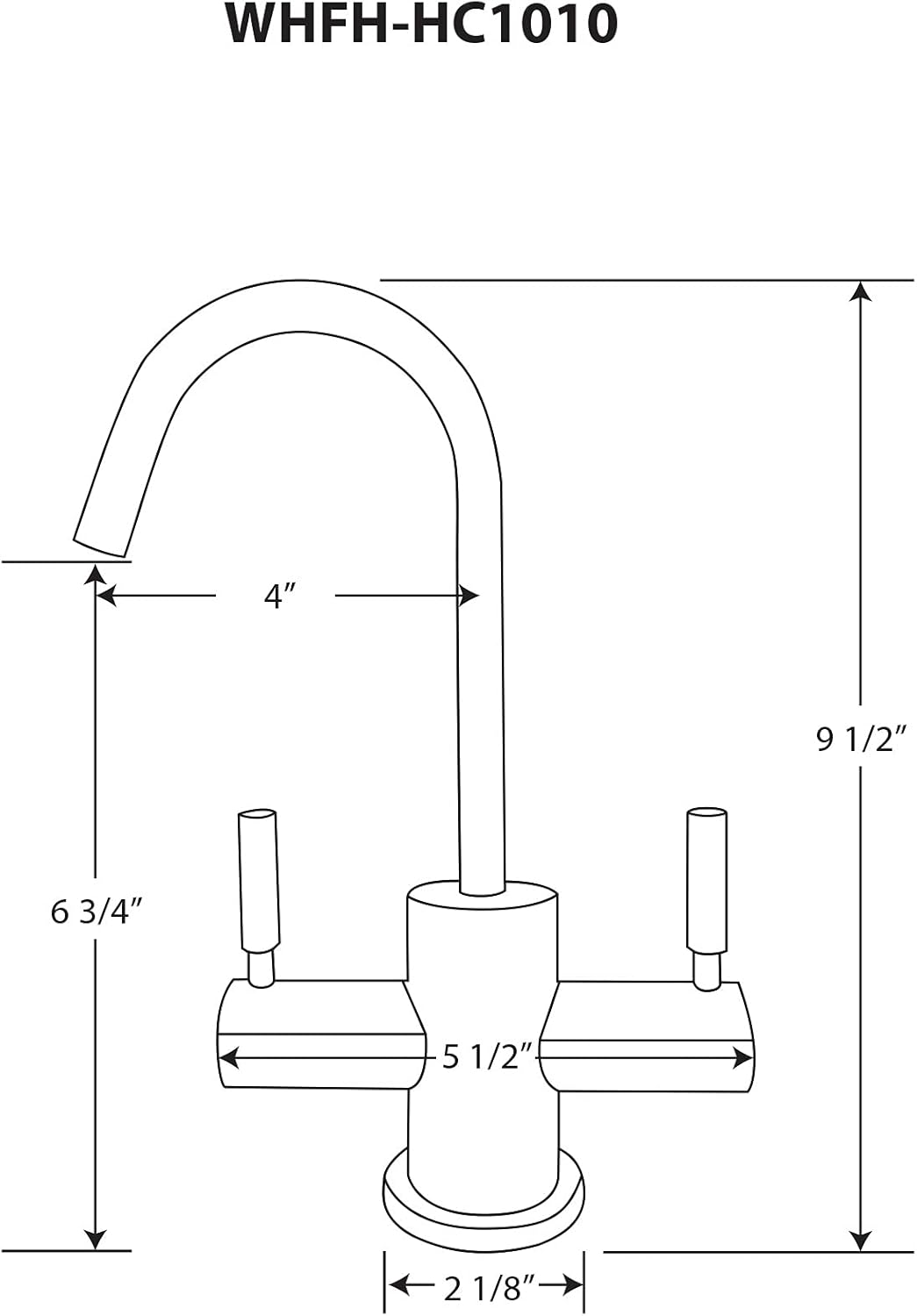

Figure 1: Dimensional drawing of the Whitehaus WHFH-HC1010-C faucet, showing key measurements such as overall height (9 1/2 inches), spout reach (4 inches), and base diameter (2 1/8 inches). This diagram is crucial for ensuring proper fit and clearance during installation.

2. Install the Faucet

1. Insert the faucet body through the mounting hole in the countertop or sink.
2. From underneath the sink, place the rubber washer and then the metal washer over the threaded shank.
3. Thread the mounting nut onto the shank and tighten it securely with a wrench. Do not overtighten.

3. Connect Water Lines

1. Connect the cold water supply line from the faucet to your cold water shut-off valve. Use plumber's tape or thread sealant as needed.
2. Connect the hot water supply line from the faucet to the outlet of your instant hot water tank. Refer to your hot water tank's manual for specific connection instructions.
3. Ensure all connections are hand-tight, then use a wrench to tighten an additional quarter to half turn. Avoid overtightening.

4. Check for Leaks

1. Slowly turn on the main water supply.
2. Inspect all connections for leaks. Tighten any leaking connections as necessary.
3. Run both hot and cold water through the faucet for a few minutes to flush out any debris and check for proper flow.

Figure 2: The Whitehaus Collection WHFH-HC1010-C Instant Hot and Cold Faucet in Polished Chrome. This image displays the contemporary spout design and the two lever handles for hot and cold water dispensing.

Operating Instructions

This faucet features two lever handles for dispensing water.

• Cold Water: To dispense cold water, push the designated cold water lever handle (typically on the right) backward or forward, depending on the specific handle orientation.
• Hot Water: To dispense instant hot water, push the designated hot water lever handle (typically on the left) backward or forward. This handle is spring-loaded and self-closing for safety. Release the handle to stop the flow of hot water.

CAUTION: Instant hot water is very hot and can cause burns. Always use caution when operating the hot water dispenser.

Maintenance and Care

Proper care will ensure the longevity and appearance of your faucet.

• Cleaning: Clean the faucet regularly with a soft, damp cloth. Avoid abrasive cleaners, harsh chemicals, or scouring pads, as these can damage the polished chrome finish.
• Hard Water Spots: For hard water spots, use a solution of equal parts white vinegar and water. Apply with a soft cloth, let it sit for a few minutes, then rinse thoroughly and dry.
• Aerator Maintenance: If water flow decreases, the aerator may be clogged. Unscrew the aerator from the spout, clean any debris, and rinse before reattaching.
• Leak Prevention: Periodically check under the sink for any signs of leaks around the connections. Address any leaks promptly.

Troubleshooting

If you encounter issues not listed here or if solutions do not resolve the problem, contact Whitehaus Collection customer support or a qualified plumber.

Specifications

Warranty and Support

For warranty information and customer support, please refer to the official Whitehaus Collection website or contact their customer service directly. Keep your purchase receipt as proof of purchase.
