Introduction
The smarTrike Smartfold 600 is a versatile 7-in-1 folding baby tricycle designed to adapt to your child's growth from 9 months to 3 years. This manual provides essential information for safe assembly, operation, and maintenance of your tricycle.
Safety Information
- Age Recommendation: Suitable for children aged 9 months to 3 years. Always ensure the child is within the recommended age and weight limits for each stage.
- Adult Supervision: Constant adult supervision is required when the child is using the tricycle. Never leave a child unattended.
- Harness System: Always secure your child with the 3-point Y-shaped safety harness to prevent falls and ensure stability.
- Footrests and Pedals: Ensure footrests are properly engaged or pedals are locked/unlocked according to the child's stage and ability.
- Brakes: This tricycle does not feature a brake system. Exercise caution, especially on inclines or uneven surfaces.
- Assembly: Ensure all parts are correctly assembled and securely fastened before each use. Refer to the assembly section for detailed instructions.
- Maintenance: Regularly inspect the tricycle for loose parts, damage, or wear. Do not use if any part is damaged.
Assembly Instructions
The smarTrike Smartfold 600 is designed for tool-free assembly with a few clicks. Follow these general steps:
- Unpack all components and verify against the parts list (not provided in this document, refer to packaging).
- Attach the front wheel assembly, ensuring it clicks securely into place.
- Connect the rear wheel assembly to the main frame.
- Insert the parent handle into its designated slot until it locks.
- Attach the seat unit, canopy, and safety bar as required for the initial stage of use.
- Ensure all connections are firm and secure before placing a child in the tricycle.

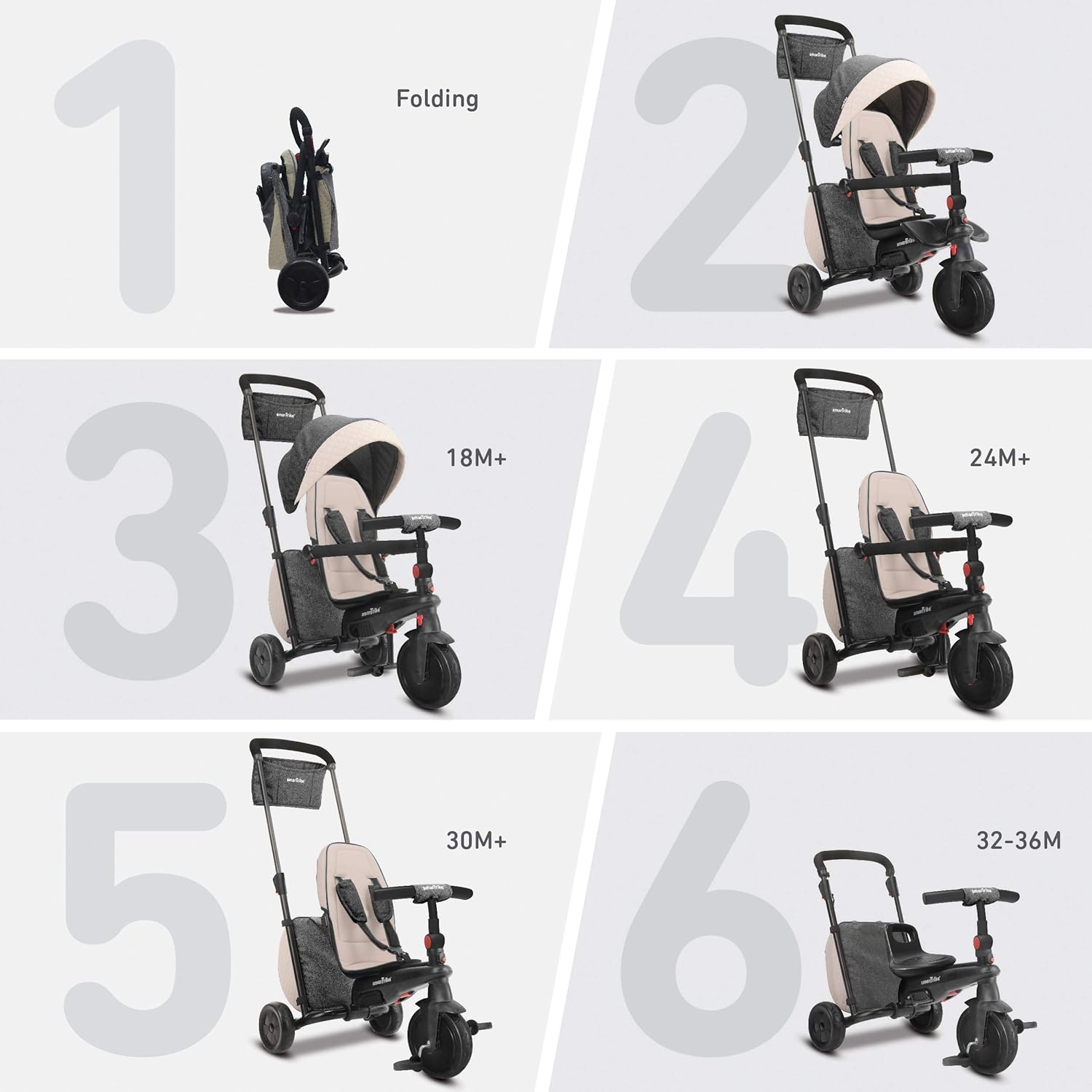

Image: Visual representation of the smarTrike Smartfold 600's evolution through its 7 stages.
Operating Instructions: 7 Stages of Use
The smarTrike Smartfold 600 adapts to your child's development. Adjust the tricycle according to the child's age and capabilities.
- Stage 1: Compact Folding (Storage/Transport)
The tricycle folds compactly for easy storage and transport. No dismantling is required. This stage is for parents to carry or store the trike.
Image: The smarTrike Smartfold 600 in its fully folded, compact configuration.
- Stage 2: Parent-Controlled with Early Stage Footrest (9 Months Old)
For infants, the early stage footrest is used. The parent steers the tricycle using the Touch Steering technology. The child is secured in the padded seat with the safety harness.
- Stage 3: Parent-Controlled with Fold-Down Footrest (12 Months Old)
Switch to the fold-down footrest. The child sits comfortably in the padded seat, secured by the high-back seat and soft-padded safety bar. Parent maintains full control.
- Stage 4: Parent-Controlled with 3-Point Harness (18 Months Old)
Remove the canopy. The child is secured with the 3-point Y-shaped safety harness. Parent continues to steer and push.
- Stage 5: Training Trike with Pedals (23 Months Old)
Attach the non-slip pedals. The tricycle functions as a training trike, allowing the child to learn how to pedal while the parent still assists with steering and pushing.
Image: Child riding the tricycle in a more independent stage, utilizing the pedals.
- Stage 6: Independent Tricycle with Parent Handle (30 Months Old)
Close the telescopic parent handle. The child can now pedal and steer independently. The parent handle can still be used for guidance if needed.
- Stage 7: Fully Independent Tricycle (32 Months Old and up)
Remove the high-back support. The child can fully explore and ride the tricycle independently, similar to a traditional tricycle.
Features and Controls
- Touch Steering Technology: Allows parents to steer the tricycle with minimal effort, guiding it with a light touch on the parent handle.
Image: Detail of the front wheel showing Touch Steering and integrated shock absorber.
- Dual Control: A red button on the front wheel mudguard allows switching control between parent and child. Twist the wheel 180° to engage or disengage child steering.
Image: Key control features including the dual control button, removable pedals, and footrest.
- Removable Pedals: Non-slip pedals can be snapped in for older children learning to ride or removed for younger children using footrests.
- Young Baby Footrest: Provides a comfortable resting place for a baby's feet before they are ready for the foldable toddler footrest or pedals.
- Safety Belt: A 3-point Y-harness ensures the child remains securely seated.
- Telescopic Parent Handle: Adjustable height parent handle for comfortable pushing and steering. Pull up the handle and secure with red levers.
Image: Safety belt, adjustable parent handle, and storage bag details.
- Storage Bag: A convenient bag for carrying essentials.
- Canopy: Provides shade and protection from sun rays. (Removable in later stages).
- EVA Wheels: Designed for quiet operation.
- Shock Absorber: Integrated for a smoother ride.
Folding and Storage
The Smartfold 600 features a compact folding mechanism for easy storage and transport. To fold the tricycle:
- Ensure the parent handle is fully retracted.
- Follow the specific folding steps outlined in the product's quick-start guide or on-product labels.
- Once folded, the tricycle can be stored upright or transported in a vehicle trunk.
Image: The folded smarTrike Smartfold 600 fitting compactly into a car trunk.
Maintenance
- Cleaning: Wipe down plastic and metal parts with a damp cloth and mild soap. Do not use abrasive cleaners. Fabric parts can be spot cleaned or removed for gentle washing if specified by manufacturer.
- Inspection: Regularly check all screws, bolts, and fasteners to ensure they are tight. Inspect wheels, pedals, and steering mechanisms for wear or damage.
- Storage: Store the tricycle in a dry, cool place away from direct sunlight when not in use to prevent material degradation.
Troubleshooting
| Problem | Possible Cause | Solution |
|---|---|---|
| Parent handle slides down or is wobbly. | Locking mechanism not fully engaged or worn. | Ensure the red levers on the telescopic handle are securely fastened. If the issue persists, contact customer support. |
| Difficulty steering. | Dual control switch incorrectly set; debris in steering mechanism. | Check the red button on the front wheel mudguard to ensure it's in the desired parent or child control mode. Clean any visible debris from the steering components. |
| Pedals not engaging or spinning freely. | Pedals not fully snapped in; child control mode not engaged. | Ensure pedals are firmly attached. Verify the dual control switch is set to allow child pedal engagement. |
Specifications
- Model Number: 5100100
- Product Dimensions: 38.2 x 18.9 x 39.4 inches (L x W x H)
- Item Weight: 17 pounds
- Recommended Age: 9 months - 3 years
- Manufacturer: Smart Trike
- Release Date: January 1, 2018
Warranty and Support
For detailed warranty information, please refer to the documentation included with your purchase or visit the official smarTrike website. For product support, spare parts, or further assistance, please contact smarTrike customer service.
Contact information typically found on the manufacturer's website or product packaging.
