VTR 5075 Absorption Refrigerator User Manual

1. Introduction

This manual provides essential information for the safe and efficient operation, installation, and maintenance of your Vitrifrigo VTR 5075 Absorption Refrigerator. Please read this manual thoroughly before using the appliance to ensure proper function and longevity.

The VTR 5075 is a high-performance absorption refrigerator designed for demanding conditions, offering excellent value. Its compact dimensions allow for easy replacement of various refrigerator types on the market. It is less sensitive to leveling issues (up to 6% incline) and is specifically built for challenging environments. The electronic control panel allows for visualization of the energy source and thermostatic adjustment. It also includes a specific switch for installing a rear fan without modifications. Energy source selection is manual, with automatic electronic re-ignition.

2. Safety Information

Always adhere to the following safety precautions to prevent injury or damage to the appliance:

• Ensure the refrigerator is installed in a well-ventilated area, especially when operating on gas.
• Do not store explosive substances such as aerosol cans with a flammable propellant in this appliance.
• Keep ventilation openings, in the appliance enclosure or in the built-in structure, clear of obstruction.
• Do not use mechanical devices or other means to accelerate the defrosting process, other than those recommended by the manufacturer.
• Do not damage the refrigerant circuit.
• This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
• Children should be supervised to ensure that they do not play with the appliance.
• Disconnect the appliance from the power supply before cleaning or maintenance.

3. Setup and Installation

The VTR 5075 refrigerator is designed for built-in installation. Its dimensions are optimized for easy integration into various setups.

3.1 Unpacking

Carefully unpack the refrigerator and check for any signs of transport damage. Report any damage to your supplier immediately.

3.2 Placement and Ventilation

For optimal performance and safety, ensure adequate ventilation around the refrigerator. The absorption cooling system requires good airflow to dissipate heat. Avoid placing the unit in direct sunlight or near heat sources.

The refrigerator is designed to function effectively even with a slight incline (up to 6%).

3.3 Dimensions

Refer to the diagram below for precise installation dimensions.

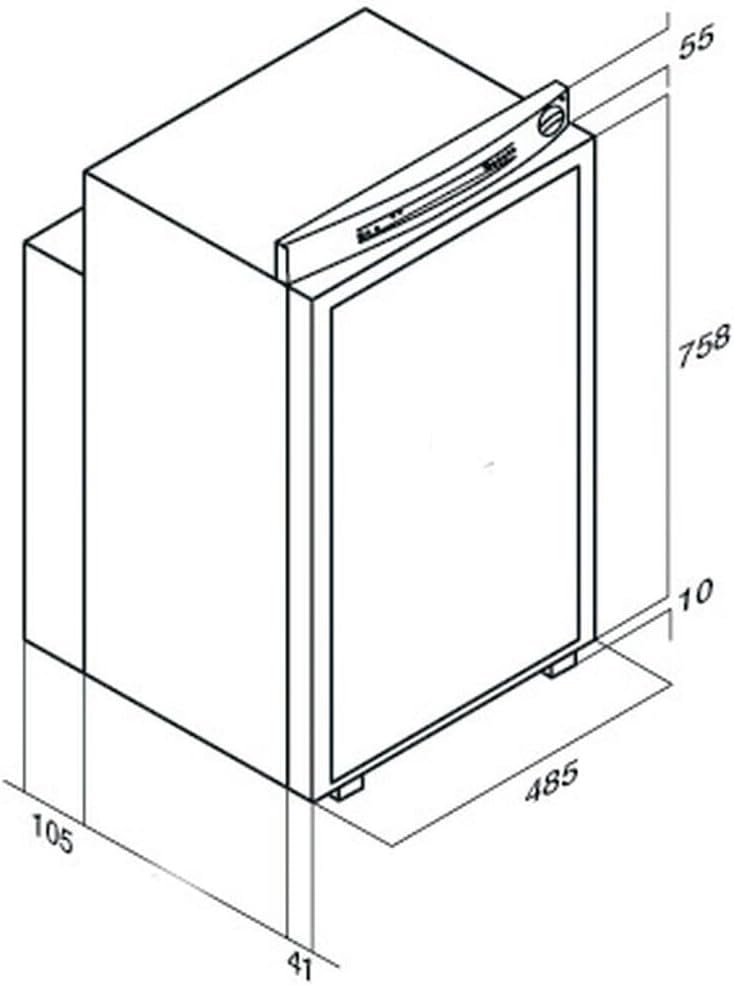

Figure 1: Refrigerator Dimensions (LxHxP: 485 x 823 x 491 mm). This diagram illustrates the external measurements of the refrigerator, crucial for proper installation and fit within a cabinet or vehicle.

3.4 Door Reversibility

The refrigerator features reversible doors, allowing you to change the door swing direction to suit your installation needs. Consult a qualified technician for door reversal if you are unsure.

4. Operating Instructions

The VTR 5075 offers trimix operation, allowing it to run on 12V DC, 220V AC, or Gas.

4.1 Power Source Selection

The electronic control panel allows for manual selection of the desired energy source (12V, 220V, or Gas). Ensure the correct power source is connected and selected before operation.

• 12V DC Operation: Ideal for mobile applications (e.g., RVs, boats) when connected to a vehicle's battery.
• 220V AC Operation: For use when connected to a standard household or campsite electrical outlet.
• Gas Operation: For use when electrical power is unavailable. Ensure proper gas supply and ventilation. The electronic re-ignition system will automatically attempt to re-ignite the flame if it goes out.

4.2 Temperature Control

The electronic control panel includes a thermostatic adjustment feature. Use this to set the desired cooling temperature inside the refrigerator compartment. Allow several hours for the refrigerator to reach the set temperature after initial startup or significant temperature changes.

4.3 Freezer Compartment

The refrigerator includes a 2-star freezer compartment with a capacity of 8.2 liters, suitable for short-term storage of frozen goods.

Figure 2: Refrigerator Interior. This image displays the internal layout, including the main refrigeration area with adjustable shelves and door storage, and the integrated freezer compartment at the top.

5. Maintenance and Care

Regular maintenance ensures the longevity and efficient operation of your refrigerator.

5.1 Cleaning

• Always disconnect the refrigerator from all power sources (12V, 220V, and gas) before cleaning.
• Clean the interior and exterior with a soft cloth and a mild detergent solution. Do not use abrasive cleaners or solvents.
• Wipe down door seals regularly to ensure a tight seal.
• Clean the rear ventilation grilles periodically to ensure proper airflow for the absorption unit.

5.2 Defrosting

The freezer compartment will accumulate frost over time. Defrost the unit when the frost layer becomes approximately 5mm thick. To defrost:

1. Turn off the refrigerator and disconnect all power sources.
2. Remove all food items and place them in a cool place.
3. Leave the refrigerator door open to allow frost to melt naturally. You can place a towel at the bottom to absorb water.
4. Once defrosted, clean and dry the interior thoroughly before restarting the unit.

5.3 Winterization (for mobile applications)

If the refrigerator will not be used for an extended period, especially in cold temperatures, ensure all water lines (if applicable) are drained and the unit is clean and dry to prevent damage from freezing.

6. Troubleshooting

Before contacting service, check the following common issues:

• Refrigerator not cooling:
  • Check if the power source (12V, 220V, or Gas) is properly connected and selected.
  • Ensure the gas bottle is not empty and the gas valve is open.
  • Verify the temperature setting is appropriate.
  • Check for obstructions in the ventilation grilles.
• Excessive frost in freezer:
  • The door may not be sealing properly. Check door seals for damage or debris.
  • Frequent opening of the door.
  • High humidity in the environment.
• Gas flame not igniting:
  • Check gas supply.
  • Ensure the electronic re-ignition system is functioning. If not, professional service may be required.

If problems persist after checking these points, contact a qualified service technician.

7. Specifications

8. Warranty and Support

For warranty information and technical support, please refer to the documentation provided with your purchase or contact your authorized Vitrifrigo dealer. Keep your proof of purchase for warranty claims.

For general inquiries or to locate a service center, you may visit the official Vitrifrigo website or contact their customer service department.
