VHT SP117 FlameProof Coating Flat Aluminum Paint User Manual

Introduction

The VHT SP117 FlameProof Coating is a high-temperature paint designed for use on exhaust systems, headers, and other components exposed to extreme heat. This flat aluminum finish provides protection and a refreshed appearance, capable of withstanding temperatures up to 2000°F (1093°C). Proper application and curing are essential for optimal performance and durability.

Safety Information

WARNING: This product contains chemicals known to the State of California to cause cancer and birth defects or other reproductive harm. Always read and follow all warnings and instructions on the product label before use.

• Use in a well-ventilated area. Avoid breathing vapors.
• Wear appropriate personal protective equipment, including gloves, eye protection, and a respirator.
• Keep away from heat, sparks, open flames, and hot surfaces. No smoking.
• Pressurized container: Do not pierce or burn, even after use.
• Do not expose to temperatures exceeding 120°F (49°C).
• Keep out of reach of children.
• In case of contact with eyes, rinse immediately with plenty of water and seek medical advice.
• In case of skin contact, wash immediately with soap and water.

Setup and Surface Preparation

Proper surface preparation is critical for the adhesion and performance of VHT FlameProof Coating.

1. Clean the Surface: The surface must be completely free of oil, grease, rust, dirt, and loose paint. Use a degreaser or wax and grease remover. For new parts, ensure all manufacturing oils are removed.
2. Remove Rust: For rusted surfaces, use a wire brush, sandpaper, or a rust remover to achieve a clean, bare metal surface.
3. Sand (Optional): For optimal adhesion on smooth surfaces, lightly sand with 320-400 grit sandpaper.
4. Wipe Down: After cleaning and sanding, wipe the surface with a clean, lint-free cloth and a suitable solvent (e.g., rubbing alcohol or paint prep solvent) to remove any residue. Allow to dry completely.
5. Masking: Mask off any areas not intended for painting using painter's tape and masking paper.
6. Ventilation: Ensure the work area is well-ventilated.
7. Shake Can: Shake the aerosol can vigorously for at least one minute after the mixing ball begins to rattle. Continue to shake occasionally during application.

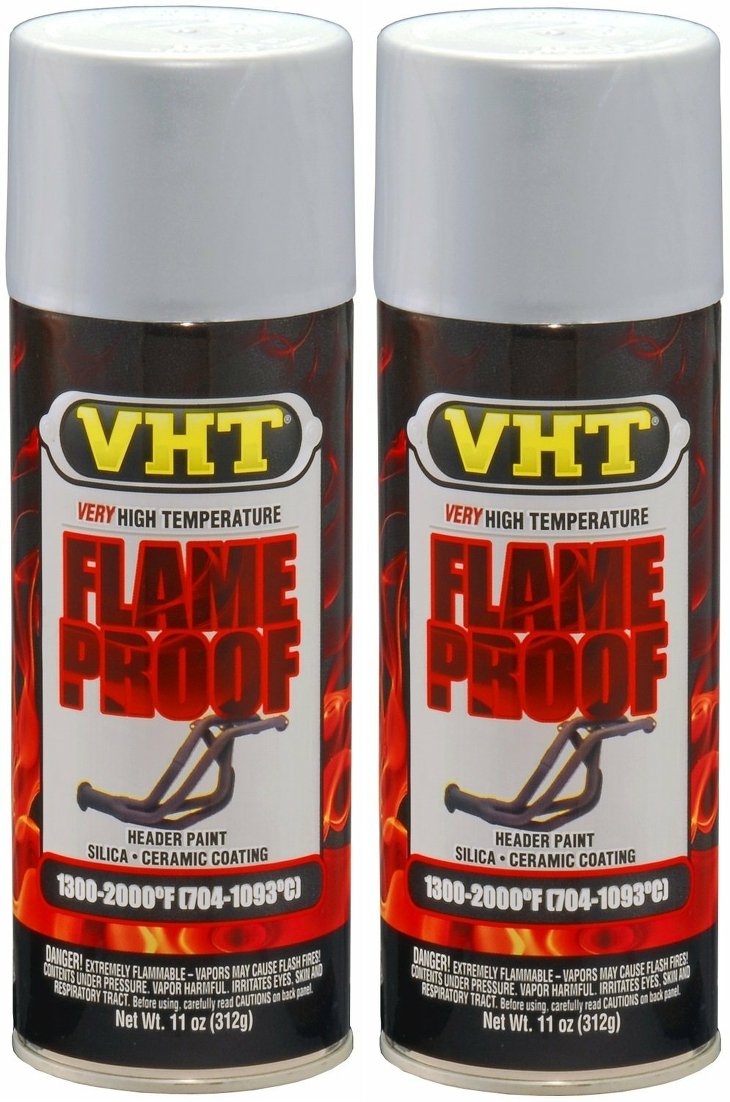

Image: VHT SP117 FlameProof Coating Flat Aluminum Paint Can. This image shows the product in its aerosol can form, ready for use after proper shaking and surface preparation.

Operating and Application Instructions

Apply VHT FlameProof Coating in light, even coats for best results.

1. Test Spray: Before applying to the actual surface, test spray on a piece of scrap material to check spray pattern and color.
2. Application Distance: Hold the can 10-12 inches (25-30 cm) from the surface.
3. Apply Light Coats: Apply several light coats rather than one heavy coat. This helps prevent runs and ensures even coverage.
4. Drying Time Between Coats: Allow 10 minutes of drying time between coats.
5. Total Coats: Apply 3-4 light coats for optimal coverage and durability.
6. Invert Can: After each use, invert the can and spray for a few seconds to clear the nozzle.

Curing Process

VHT FlameProof Coating requires a specific curing process to achieve its maximum heat resistance and hardness. This can be done on the vehicle or in an oven.

On-Vehicle Curing:

1. Allow paint to air dry for at least 1 hour before starting the engine.
2. Idle: Run engine at idle for 10 minutes.
3. 1500-2000 RPM: Run engine at 1500-2000 RPM for 20 minutes.
4. Normal Operation: Run engine under normal operating conditions for 30 minutes.

Note: During the curing process, some smoke and odor may be emitted. Ensure adequate ventilation.

Off-Vehicle (Oven) Curing:

1. Allow paint to air dry for at least 1 hour.
2. Bake at 250°F (121°C) for 30 minutes.
3. Bake at 400°F (204°C) for 30 minutes.
4. Bake at 600°F (316°C) for 30 minutes.

Maintenance

Once properly cured, VHT FlameProof Coating is durable and requires minimal maintenance. Clean the painted surface with mild soap and water as needed. Avoid abrasive cleaners or harsh chemicals that could damage the finish.

Troubleshooting

Specifications

• Product Name: VHT FlameProof Coating
• Model Number: SP117
• Color: Flat Aluminum
• Finish Type: Matte
• Item Volume: 11 Fluid Ounces per can
• Container Type: Aerosol Can
• Special Feature: Flame Resistant, High Heat
• Temperature Resistance: Up to 2000°F (1093°C)
• Specific Uses: Interior/Exterior (exhaust systems, headers, engine components)
• UPC: 010155001173

Warranty and Support

For specific warranty information or technical support, please refer to the manufacturer's official website or contact VHT customer service directly. Product performance is dependent on proper application and curing as outlined in this manual.

VHT Official Website: www.vhtpaint.com
