1. Introduction
This manual provides essential information for the proper installation, maintenance, and troubleshooting of your Buildalot Specialty Carbon Brushes, model 0179_Bosch_PSB 400-2. These carbon brushes are designed as direct replacements for Bosch PSB 400-2 Powertools, specifically replacing Bosch part number 2.604.321.915. Carbon brushes are critical components in electric motors, facilitating the transfer of electrical current to the rotating armature. Regular inspection and timely replacement ensure optimal performance and longevity of your power tool.
2. Product Overview
The Buildalot Specialty Carbon Brushes are manufactured from high-quality carbon steel, ensuring durability and efficient electrical conductivity. Each brush assembly includes a carbon block, a coiled spring, and a connector, designed to fit precisely into compatible Bosch power tools.
Figure 2.1: Two Buildalot carbon brushes, showing the carbon block, spring, and connector assembly.

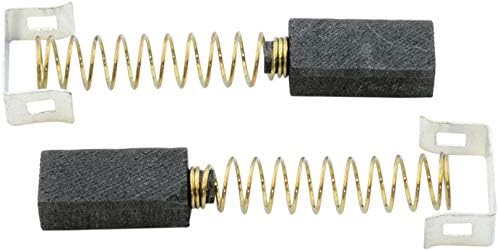

Figure 2.2: Horizontal view of two carbon brushes, highlighting the spring and connector.
3. Safety Information
WARNING: Always disconnect the power tool from the electrical supply before attempting any maintenance, inspection, or replacement of parts. Failure to do so can result in serious injury or electric shock.
- Wear appropriate personal protective equipment (PPE), including safety glasses and gloves, during installation.
- Ensure the work area is well-lit and clear of obstructions.
- If you are unsure about any step of the installation process, consult a qualified technician or refer to your power tool's original service manual.
- Keep replacement parts out of reach of children.
4. Installation (Setup)
Replacing carbon brushes is a common maintenance task for power tools. Follow these steps carefully:
- Disconnect Power: Unplug the power tool from the electrical outlet. For battery-powered tools, remove the battery pack.
- Locate Brush Caps: Identify the brush caps on your Bosch PSB 400-2 power tool. These are typically small, round or rectangular caps located on the sides of the motor housing. They may require a flathead screwdriver or a specific tool to remove.
- Remove Old Brushes: Carefully unscrew or unclip the brush caps. The old carbon brush, spring, and connector assembly will likely come out with the cap, or can be gently pulled out. Note the orientation of the old brush for correct installation of the new one.
- Inspect Commutator: While the brushes are out, inspect the commutator (the copper segments on the motor's armature). It should be clean and smooth. If it's excessively grooved, pitted, or discolored, professional servicing may be required.
- Insert New Brushes: Insert the new Buildalot carbon brushes into the brush holders. Ensure the carbon block slides smoothly and the spring provides adequate pressure against the commutator. The connector should be properly seated.
- Secure Brush Caps: Replace and secure the brush caps. Do not overtighten, but ensure they are snug to maintain proper brush contact.
- Test Tool: Reconnect the power tool to the electrical supply or reinsert the battery. Briefly run the tool at a low speed to allow the new brushes to seat properly. Initial sparking is normal but should reduce quickly.
Figure 4.1: Diagram illustrating the carbon brush and spring assembly.
For best results, allow new brushes a short "break-in" period (e.g., running the tool lightly for a few minutes) to conform to the commutator's shape.
5. Operating Considerations
After installing new carbon brushes, the power tool should operate as expected. If you notice excessive sparking, unusual noises, or a significant drop in performance, immediately discontinue use and refer to the troubleshooting section.
New carbon brushes may produce slightly more sparking than old ones during the initial break-in period as they conform to the commutator. This is normal and should subside within a few minutes of light use.
6. Maintenance
Carbon brushes are wear items and require periodic inspection and replacement. The lifespan of carbon brushes varies depending on tool usage and operating conditions.
- Regular Inspection: Periodically inspect the carbon brushes (e.g., every 50-100 hours of operation, or if performance issues arise).
- Replacement: Replace brushes when they are worn down to approximately 1/4 inch (6mm) or less, or if they show signs of chipping, cracking, or uneven wear.
- Cleanliness: Keep the motor's ventilation slots clear of dust and debris to ensure proper cooling and brush performance.
7. Troubleshooting
If your power tool exhibits issues after carbon brush replacement, consider the following:
| Symptom | Possible Cause | Solution |
|---|---|---|
| Tool not starting or intermittent operation | Brushes not seated correctly, worn brushes (if not replaced), faulty switch, motor issue. | Re-check brush seating. Ensure brushes are new and properly installed. Check power supply. If issues persist, seek professional repair. |
| Excessive sparking at the commutator | Brushes not seated, commutator dirty/damaged, incorrect brush type, motor overload. | Allow break-in period. Clean commutator. Ensure correct brush model. Reduce load on tool. If sparking persists, inspect commutator for damage. |
| Reduced power or speed | Worn brushes (if not replaced), motor issues, power supply problems. | Ensure new brushes are installed. Check power supply. If problem continues, motor may require servicing. |
| Burning smell | Overheating motor, excessive sparking, short circuit. | Immediately discontinue use. Unplug tool. Allow to cool. Inspect brushes and commutator. Seek professional repair if smell persists. |
For issues not resolved by these steps, it is recommended to consult a qualified power tool repair technician.
8. Specifications
The following specifications apply to the Buildalot Specialty Carbon Brushes 0179_Bosch_PSB 400-2:
- Brand: Buildalot
- Model Number: 0179_Bosch_PSB 400-2
- Compatible Tool: Bosch PSB 400-2 Powertools
- Replaces Part Number: 2.604.321.915
- Material: Carbon Steel
- Item Weight: 0.64 ounces (approx. 18 grams)
- Product Dimensions: 0.2 x 0.31 x 0.61 inches (approx. 5.08 x 7.87 x 15.49 mm)
- Number of Pieces: 2 (per package)
- Grit Type: Coarse (referring to the carbon material properties)
Figure 8.1: Product packaging with manufacturer and EU representative information.
9. Warranty Information
Buildalot products are manufactured to high standards. For specific warranty terms and conditions, please refer to the information provided with your purchase or contact Buildalot customer support directly. Typically, replacement parts are covered against manufacturing defects for a limited period from the date of purchase.
10. Support
For technical assistance, product inquiries, or warranty claims, please contact Buildalot customer support:
- Manufacturer: Buildalot BV
- Address: Franciscusweg 10-A8, 1216 SK HILVERSUM, Netherlands
- Email: info@buildalot.nl
- Website: www.buildalot.nl (Please note: website link is an example based on email domain, verify official website if available)
When contacting support, please have your product model number (0179_Bosch_PSB 400-2) and purchase details ready.
