Ultrasport Drafter 700 Rowing Machine User Manual

1. Introduction

Thank you for choosing the Ultrasport Drafter 700 Rowing Machine. This manual provides essential information for the safe assembly, operation, and maintenance of your new fitness equipment. Please read this manual thoroughly before using the device and keep it for future reference.

The Ultrasport Drafter 700 is designed for effective full-body training, combining a smooth rowing motion with upper body exercises. It features a quiet magnetic resistance system and a compact, foldable design for convenient storage.

Image 1.1: The Ultrasport Drafter 700 Rowing Machine in its assembled state, showcasing its red and black design and sturdy construction.

2. Safety Information

• Consult a physician before starting any new exercise program.
• Ensure all parts are correctly assembled and tightened before each use.
• Place the rowing machine on a flat, stable surface.
• Keep children and pets away from the equipment during operation.
• Do not exceed the maximum user weight of 120 kg.
• Wear appropriate athletic footwear and clothing.
• Stop exercising immediately if you feel pain, dizziness, or shortness of breath.
• Regularly inspect the equipment for wear and tear. Do not use if damaged.

3. Package Contents

The Ultrasport Drafter 700 Rowing Machine package includes:

• Main rowing machine components
• Assembly hardware
• User manual
• 2 AA batteries (for the training computer)

4. Setup and Assembly

Assembly of the Ultrasport Drafter 700 is designed to be straightforward. Follow the included assembly instructions carefully. Ensure all bolts and nuts are securely fastened before first use.

Image 4.1: An illustrative diagram showing the simple assembly process of the Ultrasport Drafter 700 Rowing Machine, detailing how the main rail connects to the base unit.

The rowing machine also features a foldable design for space-saving storage. To fold, lift the rail until it locks into an upright position. To unfold, release the locking mechanism and lower the rail until it is flat.

Image 4.2: A visual representation of the Ultrasport Drafter 700 Rowing Machine, showing its dimensions both in the unfolded operational state and in the folded, upright storage position.

5. Operating Instructions

5.1. Getting Started with Rowing

1. Sit on the seat with your feet securely strapped into the footrests.
2. Grasp the handle with both hands.
3. Push off with your legs, lean back slightly, and pull the handle towards your abdomen.
4. Return to the starting position by extending your arms, leaning forward, and bending your knees.

5.2. Resistance Adjustment

The Ultrasport Drafter 700 features 8 different magnetic resistance levels. To adjust the resistance, turn the tension control knob located on the main unit. Turn clockwise for higher resistance and counter-clockwise for lower resistance.

Image 5.1: A close-up view of a hand adjusting the resistance knob on the Ultrasport Drafter 700 Rowing Machine, showing the numbered settings from 1 to 8 for tension control.

5.3. LCD Training Computer

The integrated LCD training computer tracks your workout progress. It displays various metrics to help you monitor your performance:

• TIME: Duration of your workout.
• DISTANCE: Estimated distance covered.
• SPM (Strokes Per Minute): Your current rowing pace.
• CALORIES: Estimated calories burned.
• PULSE: Heart rate (requires an external pulse sensor, not included).
• TOTAL STROKES: Cumulative number of strokes.
• SCAN: Automatically cycles through all display functions.

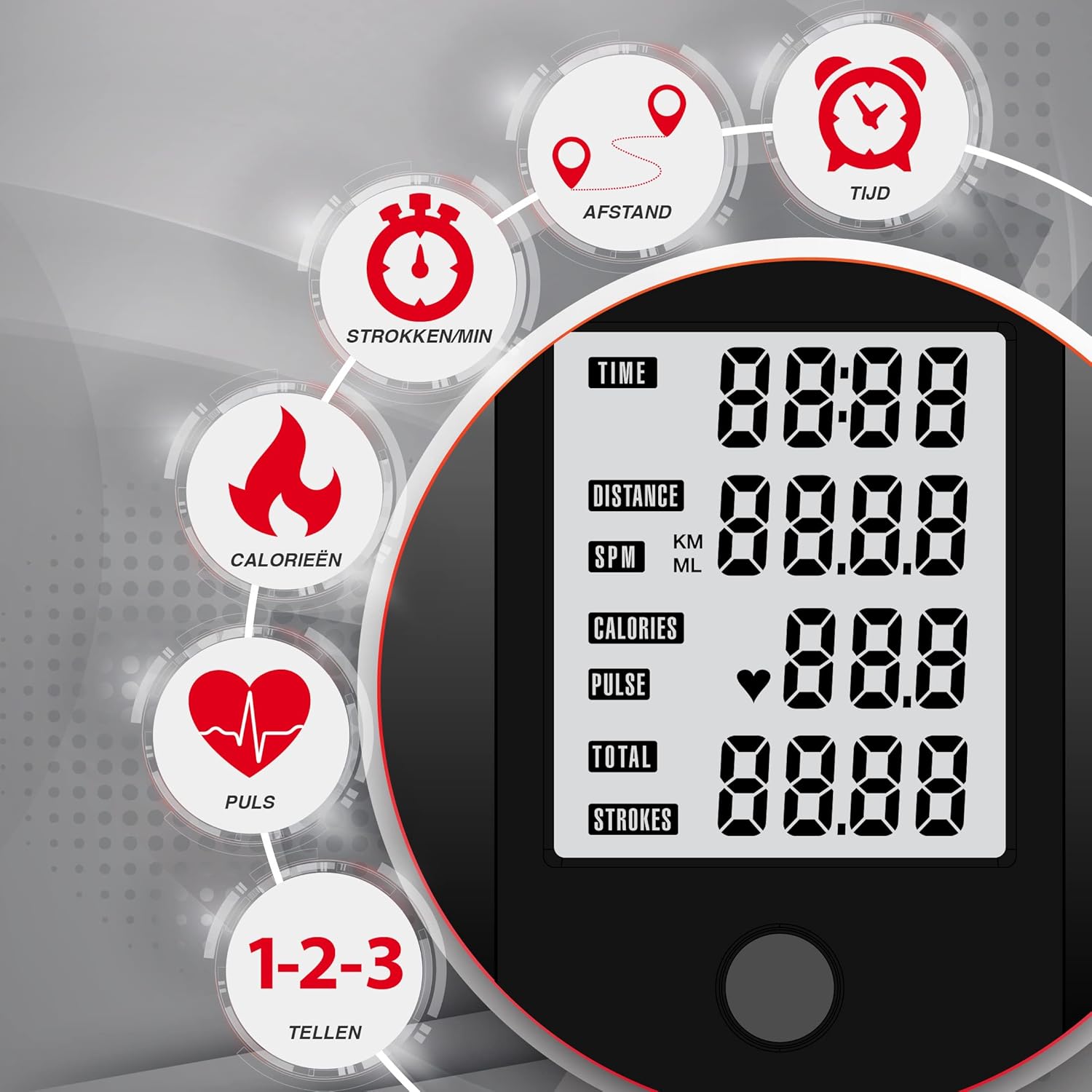

Image 5.2: A detailed view of the LCD training computer display on the Ultrasport Drafter 700, showing various metrics such as Time, Distance, SPM, Calories, Pulse, and Total Strokes.

5.4. 2-in-1 Upper Body Training

Beyond traditional rowing, the Drafter 700 allows for effective upper body exercises. Stand facing the machine, grasp the handle, and perform various pulling and resistance exercises to target different muscle groups.

Image 5.3: A user demonstrating the 2-in-1 functionality of the Ultrasport Drafter 700, performing an upper body exercise by pulling the resistance cord while standing.

6. Maintenance

• Cleaning: Wipe down the machine with a damp cloth after each use to remove sweat and dust. Avoid abrasive cleaners.
• Lubrication: Periodically check the seat rollers and rail for smooth operation. Apply a silicone-based lubricant if necessary.
• Inspections: Regularly check all nuts, bolts, and moving parts for tightness and wear. Tighten any loose fasteners.
• Storage: Store the rowing machine in a dry, cool place, away from direct sunlight and extreme temperatures. Utilize its foldable design for compact storage.
• Battery Replacement: Replace the AA batteries in the training computer when the display becomes dim or unresponsive.

7. Troubleshooting

• No display on training computer: Check if batteries are correctly inserted or need replacement.
• Resistance feels inconsistent: Ensure the resistance knob is properly engaged and the magnetic system is free from obstructions.
• Squeaking or grinding noises: Inspect moving parts, especially the seat rollers and rail. Clean and lubricate as needed. Check for loose components.
• Seat does not slide smoothly: Clean the rail and seat rollers. Ensure no debris is obstructing the path.

8. Specifications

Image 8.1: An overview of key features for the Ultrasport Drafter 700, highlighting maximum user weight (120 kg), ideal user height (180 cm), quiet operation, 8 resistance levels, and a 4 kg flywheel.

9. Warranty and Support

For warranty information or technical support, please refer to the documentation provided with your purchase or contact Ultrasport customer service directly. Keep your proof of purchase for any warranty claims.
