Product Instruction Manual

Introduction

This manual provides detailed instructions for the installation, maintenance, and troubleshooting of your new Air Filter, Primer Bulb, Spark Plug, Fuel Filter, and Fuel Line Hose Tube kit. This kit is designed for compatibility with various Craftsman chainsaw models, including 260, 2150, 2375, 1950, 1975, 2075, 2025, 1900, and specific Craftsman models 358.350460, 358.360280, 358.791050. Please read this manual thoroughly before attempting any installation or maintenance.

Important Compatibility Note

Image: Special Attention notice regarding product compatibility. It states that Amazon compatibility is not 100% accurate and is for search purposes only. Users should compare pictures, models, and OEM part numbers before purchase. It also suggests emailing for verification with old parts photos or model numbers.

While this kit is broadly compatible, it is crucial to verify fitment with your specific chainsaw model. Always compare the provided images, model numbers, and OEM part numbers with your existing components before installation. If unsure, consult a qualified technician or the product manufacturer for assistance.

Kit Contents

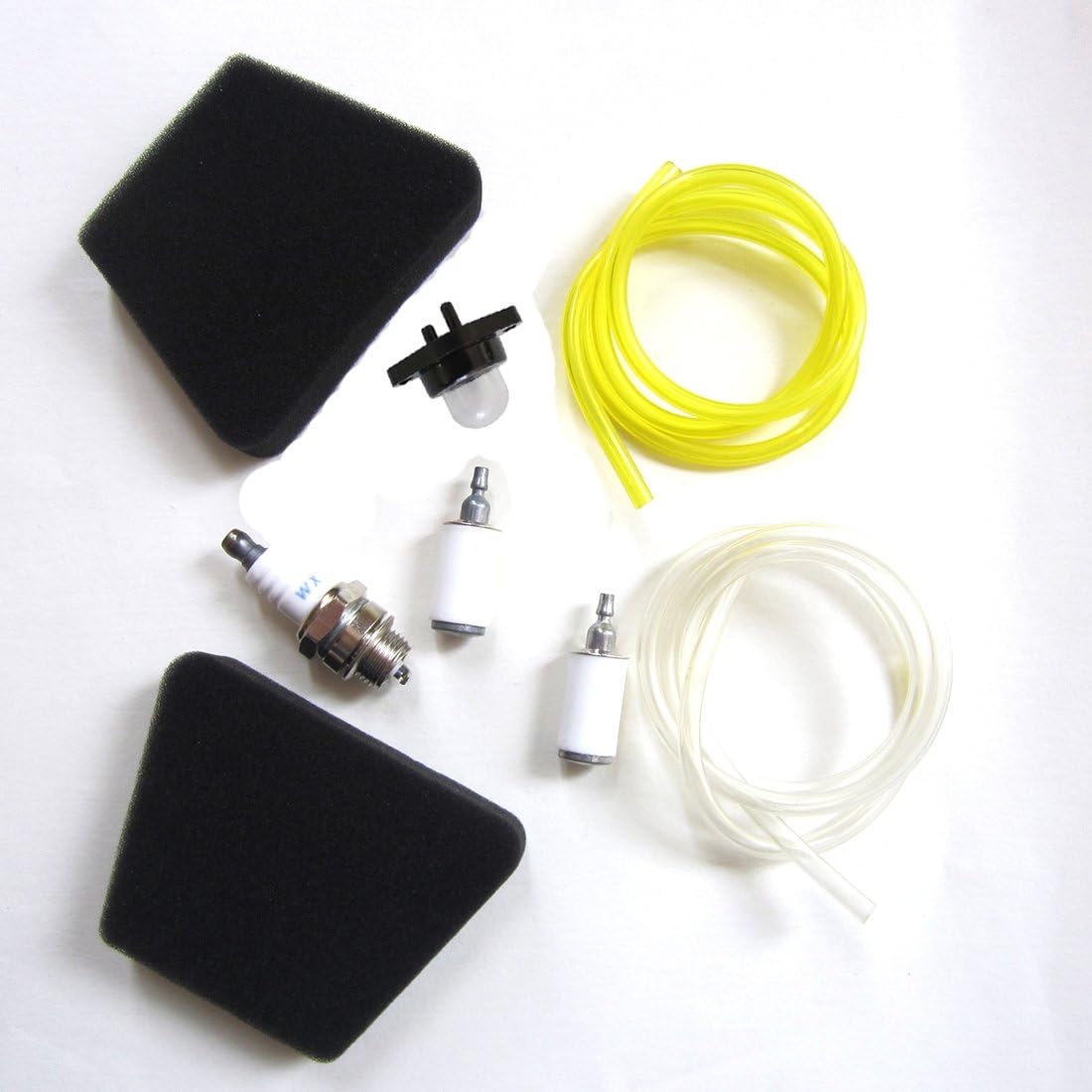

Image: A top-down view of the complete kit contents. It shows two black foam air filters, one clear primer bulb, one spark plug, two white fuel filters, one coiled yellow fuel line, and one coiled clear fuel line.

Your kit includes the following components:

• Air Filter (2x)
• Primer Bulb (1x)
• Spark Plug (1x)
• Fuel Filter (2x)
• Fuel Line Hose Tube (2x - yellow and clear)

Setup and Installation

Before beginning any installation, ensure your chainsaw is turned off, cooled down, and the spark plug wire is disconnected to prevent accidental starting. Always wear appropriate safety gear, including gloves and eye protection.

1. Air Filter Replacement

1. Locate the air filter cover on your chainsaw, typically secured by clips or screws.
2. Remove the cover and carefully take out the old air filter. Note its orientation.
3. Clean any debris from the air filter housing.
4. Insert the new air filter, ensuring it fits snugly and is oriented correctly.
5. Replace the air filter cover and secure it.

2. Primer Bulb Replacement

1. Identify the primer bulb on your chainsaw's carburetor.
2. Carefully disconnect any fuel lines attached to the primer bulb. Be prepared for minor fuel spills.
3. Remove the old primer bulb. It may be held in place by a retaining ring or simply pressed into a housing.
4. Install the new primer bulb, ensuring a tight seal.
5. Reconnect the fuel lines to the new primer bulb in their original configuration.

3. Spark Plug Replacement

1. Locate the spark plug boot and pull it off the spark plug.
2. Use a spark plug wrench to loosen and remove the old spark plug.
3. Inspect the new spark plug for any damage and ensure the gap is correct (refer to your chainsaw's specific manual for gap specifications).
4. Thread the new spark plug into the engine by hand to avoid cross-threading.
5. Tighten the spark plug with the wrench, but do not overtighten.
6. Reattach the spark plug boot firmly.

4. Fuel Filter and Fuel Line Replacement

This process can be messy. Work in a well-ventilated area and have rags ready to catch fuel spills. It is recommended to drain the fuel tank before starting.

1. Remove the fuel cap and carefully extract the fuel lines and fuel filter from the fuel tank using a hooked tool or pliers.
2. Note the routing of the fuel lines and which line connects to the fuel filter. Typically, one line goes to the carburetor and the other to the primer bulb.
3. Disconnect the old fuel filter from its line and remove the old fuel lines from the tank and carburetor/primer bulb connections.
4. Cut the new fuel lines to the appropriate length, matching the old lines.
5. Attach the new fuel filter to the correct fuel line (usually the one that goes to the carburetor).
6. Feed the new fuel lines into the tank and connect them to their respective ports on the carburetor and primer bulb. Ensure all connections are secure and free of kinks.
7. Replace the fuel cap.

Operating (Post-Installation Check)

After replacing components, perform the following checks before operating your chainsaw:

• Visual Inspection: Ensure all covers are securely fastened, and no tools or loose parts are left on the chainsaw.
• Fuel System Check: Verify that all fuel lines are properly connected and there are no leaks. Prime the carburetor several times using the new primer bulb until fuel is visible.
• Air Filter Seal: Confirm the air filter is seated correctly and the air filter cover forms a tight seal to prevent unfiltered air from entering the engine.
• Spark Plug Connection: Ensure the spark plug boot is firmly seated on the spark plug.

Once these checks are complete, you may attempt to start your chainsaw according to its original manufacturer's instructions.

Maintenance

Regular maintenance of these components is crucial for the longevity and optimal performance of your chainsaw.

• Air Filter: Clean or replace the air filter regularly, especially after heavy use or in dusty conditions. A clogged air filter can lead to poor engine performance and increased fuel consumption.
• Spark Plug: Inspect the spark plug periodically for wear, carbon buildup, or damage. Replace it if the electrode is worn or fouled.
• Fuel Filter: Replace the fuel filter annually or more frequently if you notice fuel delivery issues or if the filter appears clogged with debris.
• Fuel Lines: Inspect fuel lines for cracks, hardening, or leaks. Replace them immediately if any damage is observed to prevent fuel leaks and potential fire hazards.
• Primer Bulb: Check the primer bulb for cracks or hardening. A damaged primer bulb can prevent proper fuel priming.

Troubleshooting

If your chainsaw experiences issues after component replacement, consider the following common problems and solutions:

If problems persist after attempting these solutions, it is recommended to consult a qualified chainsaw technician.

Specifications

Warranty and Support

Specific warranty details for this product kit are not provided in this manual. For information regarding warranty coverage, returns, or technical support, please refer to the seller's policy on the platform where the product was purchased or contact the seller directly. Always retain your proof of purchase for any warranty claims.

For general inquiries or further assistance, you may also refer to the official Craftsman chainsaw manual for your specific model, as these parts are designed to be compatible with their systems.
