Introduction
This manual provides essential information for the safe and efficient operation of your Emerson Quiet Kool 10,000 BTU 115V Window Air Conditioner, model EARC10RE1. This unit is designed to provide optimal cooling for rooms up to 450 square feet. It features electronic controls, three fan speeds, flexible cooling options, a 24-hour on/off timer, low voltage startup for energy conservation, and an auto-restart function in case of power failure. Please read this manual thoroughly before installation and use, and retain it for future reference.
Important Safety Information
Always follow basic safety precautions when using electrical appliances to reduce the risk of fire, electric shock, or injury to persons.
- Electrical Safety: Ensure the unit is connected to a properly grounded 115V, 15 Amp circuit. Do not use extension cords or adapter plugs.
- Placement: Install the unit securely in a window according to the installation instructions. Ensure the window is structurally sound to support the unit's weight.
- Clearance: Maintain adequate clearance around the unit for proper airflow and to prevent overheating.
- Maintenance: Disconnect power before cleaning or performing any maintenance.
- Supervision: This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
- Damage: Do not operate the unit if the power cord or plug is damaged. Contact qualified service personnel for repair.
Package Contents
Before beginning installation, check that all parts are included:
- Window Air Conditioner Unit
- Window Mounting Kit
- Remote Control (2 AAA batteries included)
- User Manual (this document)
- Warranty Card
Installation Instructions
Follow these steps for proper installation of your window air conditioner. It is recommended to have two people for installation due to the unit's weight.
1. Prepare the Window
Ensure your window is suitable for installation. The unit is designed for standard double-hung windows. Clear the window sill and surrounding area.
Image: Example of the air conditioner installed in a window.
2. Attach Top Rail and Side Panels
Secure the top rail to the unit using the provided screws. Then, attach the accordion-style side panels to the unit. These panels will extend to fill the window opening.
Image: Front view of the air conditioner with the side panels extended, ready for installation.
3. Place Unit in Window
Carefully lift the air conditioner and place it into the window opening, ensuring the bottom rail rests securely on the window sill. Extend the side panels to fit snugly against the window frames.
4. Secure the Unit
Use the provided screws and sealing foam to secure the unit to the window frame, ensuring a tight seal to prevent air leakage. Follow the detailed instructions in the included window mounting kit.
Installation Video Guide
For a visual step-by-step guide on installation, please watch the official product video below. Note: The video may feature a slightly different model (EARC12RE1), but the installation process is largely similar.
Video: Official installation guide for Emerson Quiet Kool window air conditioners. This video demonstrates the general installation process, which is applicable to model EARC10RE1.
Operating Instructions
Control Panel Overview
Your air conditioner features an intuitive control panel with an LED display and various buttons for easy operation.

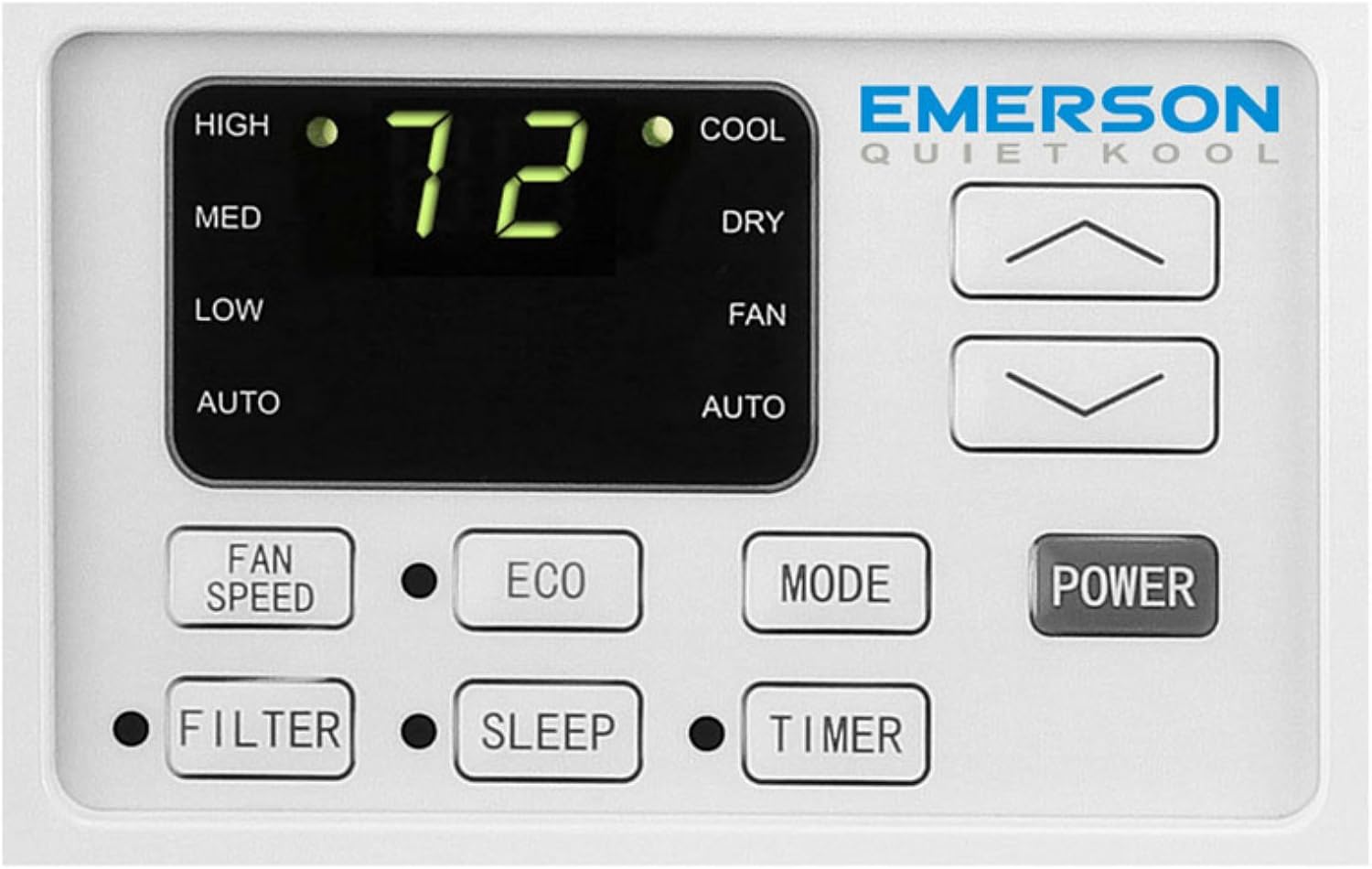

Image: Detailed view of the control panel, showing the LED display and function buttons.
- Power Button: Turns the unit ON or OFF.
- Mode Button: Cycles through operating modes: Cool, Dry (dehumidify), Fan, Auto.
- Fan Speed Button: Adjusts fan speed: High, Medium, Low, Auto.
- Temperature Up/Down Arrows: Adjusts the desired temperature setting.
- ECO Button: Activates Eco mode for energy saving.
- Sleep Button: Engages Sleep mode for quiet, energy-efficient overnight operation.
- Timer Button: Sets the 24-hour on/off timer.
- Filter Light: Illuminates to remind you to clean the air filter (after approximately 500 hours of operation).
Remote Control
The included remote control allows you to conveniently operate the air conditioner from a distance. It replicates most functions available on the control panel.
Image: The remote control for the air conditioner, showing its various buttons.
- Insert the two AAA batteries (included) into the remote control.
- Point the remote control directly at the air conditioner's control panel for optimal response.
Air Louvers
The unit features two independent air louvers with 8-way adjustability, allowing you to direct the airflow for maximum comfort.
Image: Close-up view of the adjustable air louvers on the front of the unit.
Maintenance
Regular maintenance ensures optimal performance and longevity of your air conditioner.
Cleaning the Air Filter
The air filter should be cleaned regularly, especially when the "Filter" light illuminates on the control panel (after approximately 500 hours of operation). A dirty filter can reduce cooling efficiency and airflow.
- Disconnect the power to the unit before cleaning.
- Access the air filter by sliding it out from the side or front panel (depending on your model).
- Wash the filter with warm, soapy water. Rinse thoroughly.
- Allow the filter to air dry completely before reinserting it into the unit.
- Reconnect power to the unit.

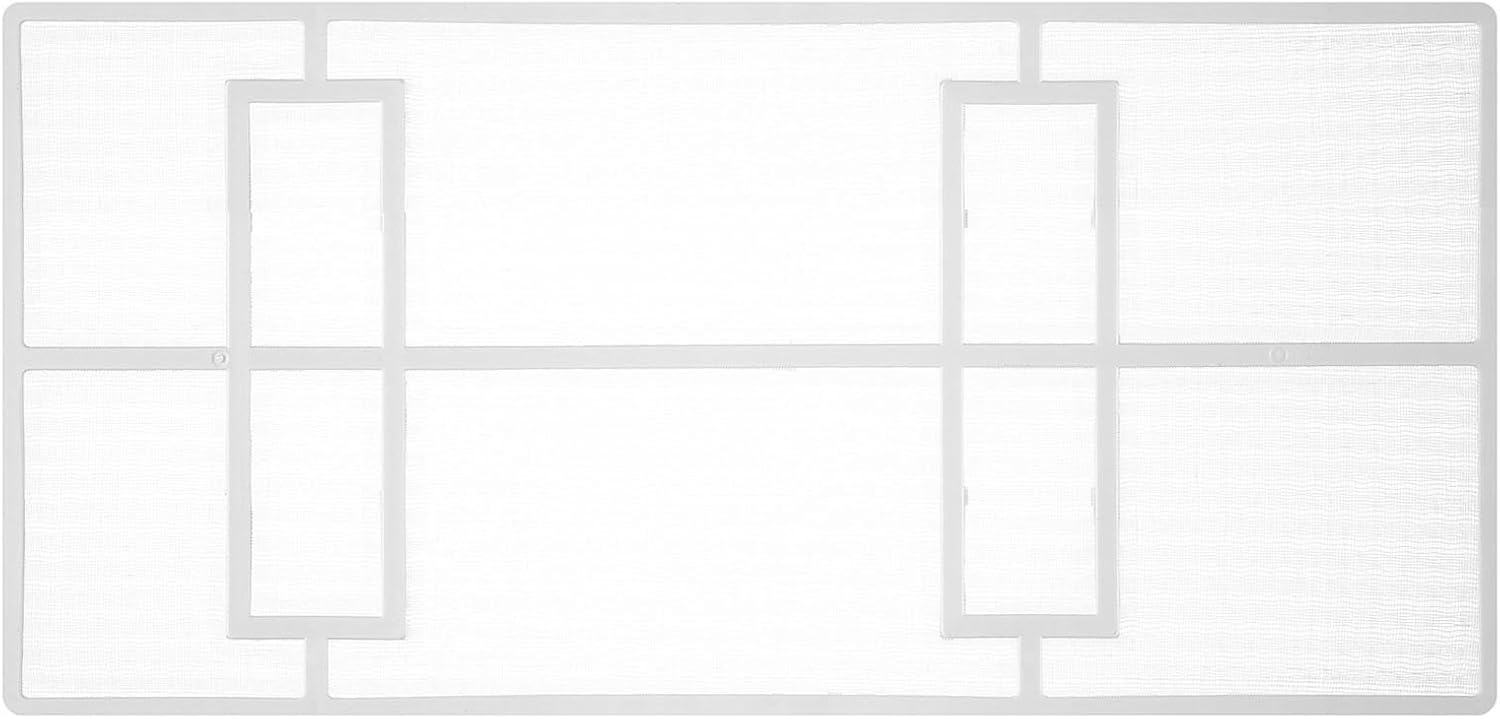

Image: The removable air filter of the air conditioner.
For a visual demonstration of filter access and cleaning, refer to the Maintenance section in the official product video provided in the Installation section.
General Cleaning
- Wipe the cabinet with a soft, damp cloth.
- Do not use harsh chemicals, abrasives, or solvents.
- Ensure the drainage area at the back of the unit is clear of debris.
Troubleshooting
If your air conditioner is not operating correctly, check the following common issues before contacting customer support:
| Problem | Possible Cause | Solution |
|---|---|---|
| Unit does not turn on. | No power, tripped circuit breaker, power outage. | Check power connection, reset circuit breaker, wait for power to restore. |
| Unit not cooling effectively. | Dirty air filter, blocked air intake/exhaust, room too large, open doors/windows. | Clean filter, ensure clear airflow, close doors/windows, verify room size is within unit's capacity. |
| Noisy operation. | Loose installation, foreign object in fan, normal operating sounds. | Check installation for tightness, inspect for obstructions (unplug first!), some sounds (fan, refrigerant) are normal. |
| Water dripping outside. | Normal condensation during high humidity. | This is normal. Ensure unit is slightly tilted outwards for proper drainage. |
For more detailed troubleshooting, please refer to the complete troubleshooting section in the full user manual.
Specifications
Image: Product dimensions for the Emerson Quiet Kool window air conditioner.
| Feature | Detail |
|---|---|
| Brand | Emerson Quiet Kool |
| Model Number | EARC10RE1 |
| Cooling Power | 10,000 BTU |
| Voltage | 115 Volts |
| Floor Area Coverage | Up to 450 Square Feet |
| Noise Level | 52 dB |
| Product Dimensions (D x W x H) | 21.5"D x 19.8"W x 14.6"H |
| Item Weight | 63.9 pounds |
| Form Factor | Window |
| Special Features | Remote Controlled, Dehumidifier, Auto-Restart, 24H-Timer, Quiet Operation |
| Included Components | Window air conditioner, window mounting kit, manual, warranty card |
| Batteries Required | Yes (2 AAA batteries included) |
| Color | White |
| Seasonal Energy Efficiency Ratio (SEER) | 12.1 |
Warranty and Support
Your Emerson Quiet Kool window air conditioner comes with an industry-exclusive warranty:
- 1 Year: Labor
- 2 Years: Parts
- 5 Years: Compressor
For warranty claims, technical support, or any inquiries, please refer to the contact information provided on your warranty card or visit the official Emerson Quiet Kool website. You can also find customer support information on the product's Amazon page.
For additional assistance, please visit the Emerson Quiet Kool Store on Amazon.
