Introduction
This instruction manual provides essential information for the safe and correct installation, operation, and maintenance of your SQlab 3OX 12deg Alloy MTB Bicycle Handlebar. Please read this manual thoroughly before installation and keep it for future reference. Proper installation and maintenance are crucial for your safety and the longevity of the product.
Safety Information
Always prioritize safety when working on your bicycle. Incorrect installation or maintenance can lead to serious injury or product failure.
- Ensure all bolts are tightened to the manufacturer's recommended torque specifications. Over-tightening or under-tightening can cause damage or failure.
- If you are unsure about any installation step, consult a professional bicycle mechanic.
- Regularly inspect your handlebar for any signs of damage, cracks, or excessive wear. Replace immediately if damage is found.
- Wear appropriate safety gear, including gloves and eye protection, during installation.
Setup and Installation
This section guides you through the process of installing your new SQlab 3OX handlebar.
Tools Required:
- Torque wrench with appropriate hex/Torx bits
- Grease (for stem clamp bolts)
- Clean rags
Installation Steps:
- Remove Existing Handlebar: Carefully remove all accessories (grips, shifters, brake levers) from your old handlebar. Loosen the stem faceplate bolts and remove the old handlebar.
- Prepare New Handlebar: Clean the clamping area of the new SQlab 3OX handlebar. Apply a thin layer of grease to the stem clamp bolts if recommended by your stem manufacturer.
- Position Handlebar in Stem: Place the SQlab 3OX handlebar into the stem clamp. Ensure the handlebar is centered and the logo or markings are aligned as desired.
- Tighten Stem Faceplate Bolts: Gradually tighten the stem faceplate bolts in a cross pattern to the manufacturer's specified torque. Refer to your stem manufacturer's instructions for exact torque values. Typically, this is between 5-8 Nm. Ensure even gap between the stem faceplate and the stem body.
- Install Controls: Reinstall your grips, shifters, and brake levers onto the new handlebar. Position them for comfortable and efficient access. Tighten their clamps to their respective manufacturer's torque specifications.
- Final Check: Before riding, ensure all components are securely fastened and the handlebar does not rotate in the stem clamp. Test brake and shifter functionality.

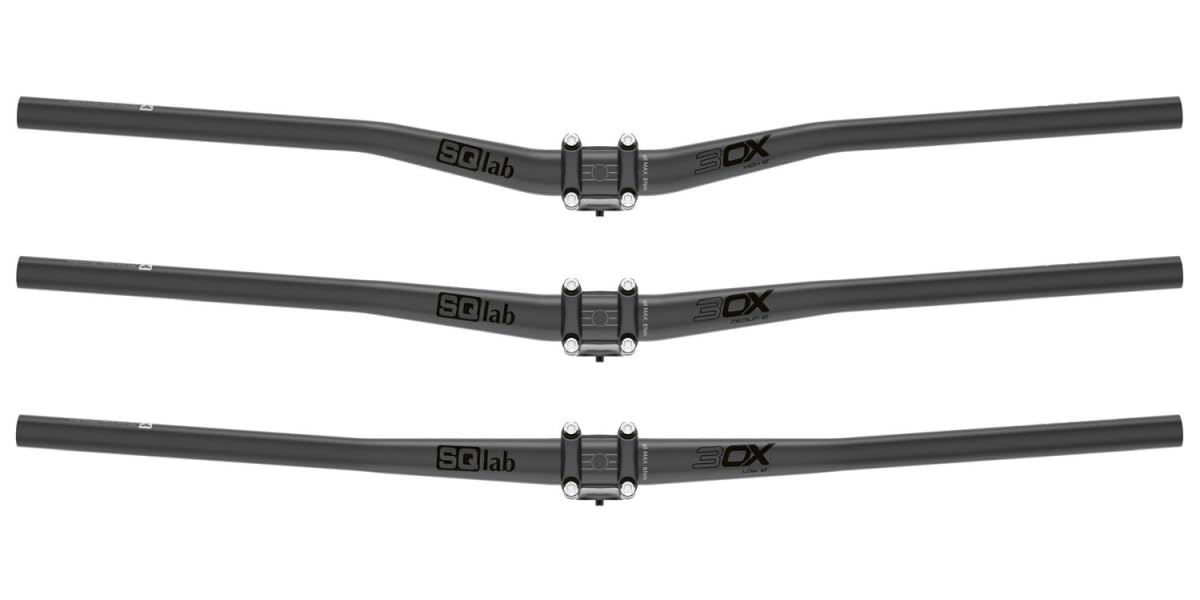

Image: SQlab 3OX Alloy MTB Bicycle Handlebar. This image shows the overall design and shape of the handlebar, highlighting its ergonomic bends.
Image: Close-up of the 12-degree backsweep on SQlab handlebars. This illustrates the ergonomic bend designed to align the wrist and forearm for improved comfort and control.
Operating and Ergonomics
The SQlab 3OX handlebar is designed with specific ergonomic features to enhance your riding experience, particularly for mountain biking and downhill riding.
- 12-Degree Backsweep: This backsweep angle promotes a natural transition from the forearm to the hand, reducing wrist strain, especially in an upright riding position. This is beneficial for downhill riding where wrist protection is crucial.
- 4-Degree Upsweep: The upsweep helps position your elbows optimally, contributing to a dynamic and controlled riding style.
- Rise Options: Available in 15mm, 30mm, or 45mm rise, allowing for individualized handlebar height adjustments to suit your preferred riding posture and bike geometry.
Experiment with the angle of your brake levers and shifters to find the most comfortable and efficient setup for your hands and riding style. Small adjustments can significantly impact comfort and control.
Maintenance
Regular maintenance ensures the safety and extends the lifespan of your SQlab 3OX handlebar.
- Regular Inspection: Before each ride, quickly check the handlebar for any visible damage, bends, or cracks. Pay close attention to the clamping areas.
- Bolt Torque Check: Periodically (e.g., monthly or after hard rides), re-check the torque of your stem faceplate bolts and control clamps using a torque wrench. Bolts can loosen over time due to vibrations.
- Cleaning: Clean the handlebar with mild soap and water. Avoid harsh chemicals or abrasive cleaners that could damage the finish or material. Rinse thoroughly and dry.
- Corrosion Prevention: As the handlebar is made of aluminum, it is generally resistant to corrosion. However, avoid prolonged exposure to saltwater or harsh chemicals.
Troubleshooting
Here are solutions to common issues you might encounter:
| Problem | Possible Cause | Solution |
|---|---|---|
| Handlebar rotates in stem | Stem faceplate bolts are loose or not torqued correctly. | Re-tighten stem faceplate bolts to manufacturer's specified torque using a torque wrench. Ensure even tightening. |
| Creaking sound from handlebar area | Loose stem bolts, dry interface between handlebar and stem, or loose headset. | Check and re-torque stem faceplate bolts. Clean and lightly grease the handlebar clamping area (if compatible with your stem). Check headset adjustment. |
| Hand numbness or wrist pain | Incorrect handlebar angle, brake/shifter lever position, or saddle position. | Adjust handlebar roll, brake lever angle, and shifter position. Ensure your saddle height and fore/aft position are correct. The 12-degree backsweep is designed to reduce wrist strain, but overall bike fit is crucial. |
Specifications
Key specifications for the SQlab 3OX 12deg Alloy MTB Bicycle Handlebar:
- Model: 3OX 12deg Alloy MTB Bicycle Handlebar
- Material: Aluminum
- Backsweep: 12 degrees
- Upsweep: 4 degrees
- Rise Options: 15mm, 30mm, 45mm
- Clamp Diameter: 31.8mm
- Width: 780mm
- Item Weight: Approximately 0.33 Kilograms (0.73 lbs)
- Product Dimensions: 31 inches (78.74 cm) length
- Intended Use: Downhill, MTB
Warranty Information
This SQlab product is covered by a Limited Warranty. For specific details regarding warranty coverage, terms, and conditions, please refer to the warranty documentation included with your purchase or visit the official SQlab website. The warranty typically covers manufacturing defects under normal use.
Support and Contact
If you have any questions, require technical assistance, or need to report an issue with your SQlab 3OX handlebar, please contact your retailer or the official SQlab customer support. Always provide your product model and purchase details when seeking support.
For more information, visit the SQlab official website.
