The ROP Shop Carburetor Instruction Manual

Introduction

This manual provides essential information for the proper installation, operation, and maintenance of your ROP Shop replacement carburetor. It is designed for Briggs & Stratton engine models 31P677, 31P877, 31Q507, 31Q577, and 31Q777. Please read this manual thoroughly before attempting any installation or operation to ensure safety and optimal performance.

Important Compatibility Note: To ensure this is the correct product for your unit, please verify your engine's model, spec, type/code, and serial number against the product specifications. If you are uncertain about compatibility, please contact The ROP Shop customer support for assistance.

Package Contents

Upon opening the package, please ensure all the following components are present:

• (1) Carburetor
• (1) Fuel Hose
• (2) Fuel Line Clamps
• (1) Gasket

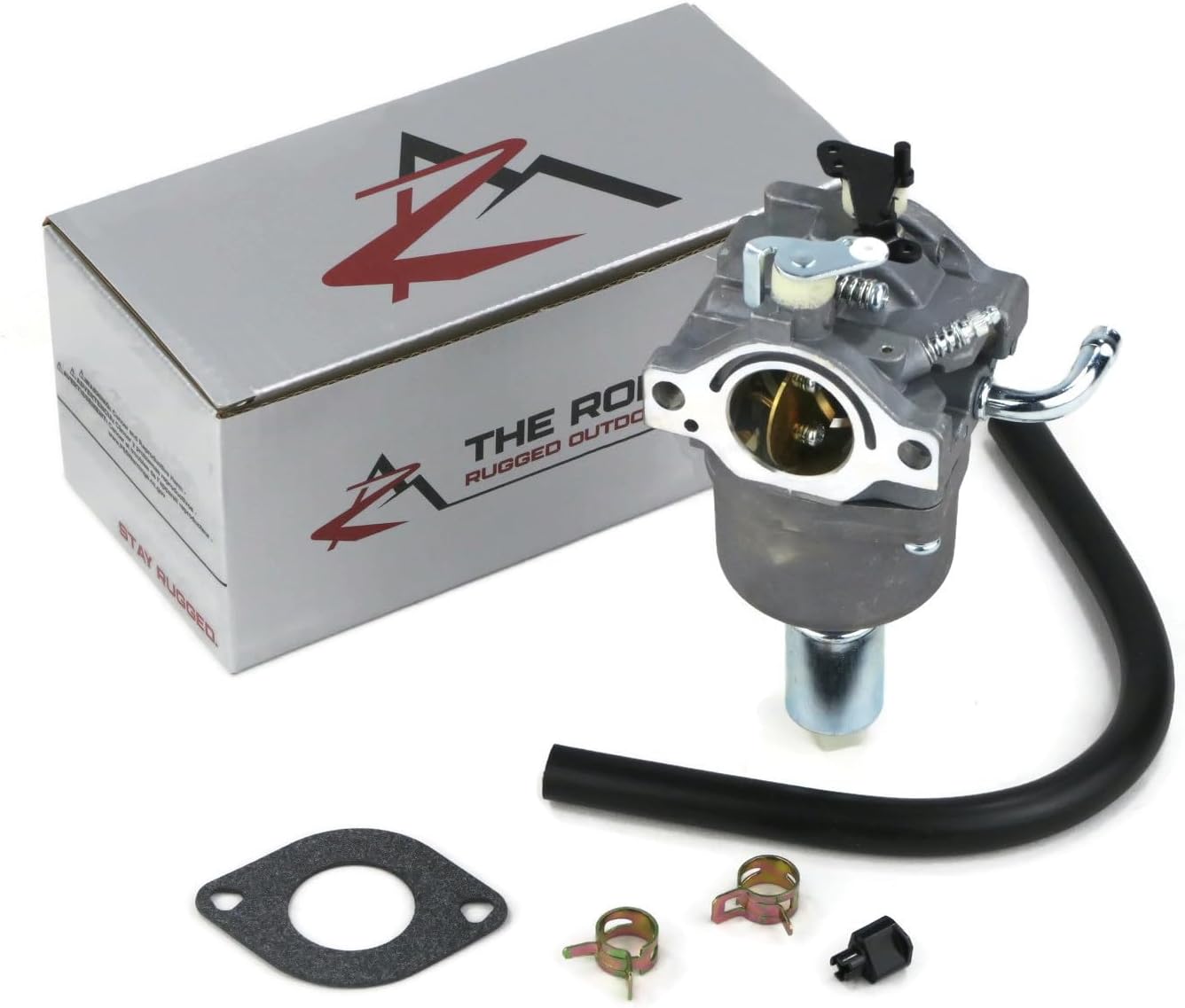

Figure 1: Complete package contents including the carburetor, fuel hose, clamps, and gasket.

Figure 2: Detailed view of the included fuel hose, fuel line clamps, and gasket.

Specifications

Figure 3: Carburetor dimensions, showing 2 1/8 inches across the intake.

Figure 4: Carburetor dimensions, showing 5 7/8 inches in height and 2 1/4 inches in width.

Safety Information

Always prioritize safety when working with engine components. Failure to follow safety precautions can result in serious injury or damage to equipment.

• Ensure the engine is turned off and cooled down before beginning any work.
• Disconnect the spark plug wire to prevent accidental starting.
• Wear appropriate personal protective equipment, including safety glasses and gloves.
• Work in a well-ventilated area.
• Handle fuel with extreme care. Avoid spills and ensure no open flames or sparks are nearby.
• Refer to your engine's original service manual for specific safety guidelines and procedures.

Setup and Installation

This section outlines the general steps for replacing a carburetor. Specific procedures may vary based on your engine model. It is recommended to consult your engine's service manual for detailed instructions.

1. Preparation:
   • Ensure the engine is cool and the spark plug wire is disconnected.
   • Turn off the fuel supply and drain any fuel from the fuel tank and lines.
   • Take photographs of the existing carburetor and its linkages before removal to aid in reassembly.
2. Remove Old Carburetor:
   • Carefully disconnect the fuel line, throttle linkage, and choke linkage from the old carburetor.
   • Remove the mounting bolts or nuts that secure the carburetor to the engine.
   • Remove the old carburetor and gasket.
3. Install New Carburetor:
   • Clean the mounting surface on the engine.
   • Place the new gasket (included) onto the mounting studs or surface.
   • Position the new ROP Shop carburetor onto the engine, ensuring it aligns correctly with the mounting holes.
   • Secure the carburetor with the mounting bolts or nuts, tightening them evenly to the manufacturer's specifications (refer to your engine manual).
4. Connect Linkages and Fuel Line:
   • Reconnect the throttle linkage and choke linkage to the new carburetor, using your reference photos if necessary.
   • Attach the new fuel hose (included) to the carburetor's fuel inlet and secure it with one of the new fuel line clamps (included).
   • Connect the other end of the fuel hose to the fuel supply and secure it with the second new fuel line clamp.
5. Final Checks:
   • Double-check all connections for tightness and proper routing.
   • Ensure there are no kinks in the fuel line.
   • Reconnect the spark plug wire.

Operating Instructions

After successful installation, follow these general steps to operate your engine. Always refer to your engine's specific operating manual for detailed startup and shutdown procedures.

1. Refuel: Fill the fuel tank with the appropriate type and grade of fuel as specified by your engine manufacturer.
2. Choke: If your engine has a manual choke, set it to the "CHOKE" position for cold starts. For warm starts, the choke may not be necessary.
3. Throttle: Set the throttle control to the "FAST" or "START" position.
4. Start Engine: Engage the starter (electric or pull-cord) according to your engine's instructions.
5. Adjust Choke: Once the engine starts and runs smoothly, gradually move the choke lever to the "RUN" or "OFF" position.
6. Warm-up: Allow the engine to warm up for a few minutes before applying a load or operating at full throttle.

Maintenance

Regular maintenance of your carburetor and fuel system is crucial for optimal engine performance and longevity.

• Fuel Quality: Always use fresh, clean fuel. Stale or contaminated fuel is a common cause of carburetor issues.
• Fuel Stabilizer: If storing the engine for an extended period, use a fuel stabilizer to prevent fuel degradation and gumming in the carburetor.
• Fuel Filter: Regularly inspect and replace the fuel filter as recommended by your engine manufacturer. A clogged fuel filter can restrict fuel flow to the carburetor.
• Air Filter: Ensure the air filter is clean and free of debris. A dirty air filter can cause the engine to run rich and affect carburetor performance.
• Carburetor Cleaning: If performance issues arise, the carburetor may require cleaning. This typically involves disassembling the carburetor, cleaning jets and passages with carburetor cleaner, and replacing gaskets. This task may require professional assistance.

Troubleshooting

This section provides solutions to common issues you might encounter with your carburetor. For more complex problems, consult a qualified service technician.

Support

For further assistance, questions regarding product compatibility, or troubleshooting issues not covered in this manual, please contact The ROP Shop customer support.

When contacting support, please have the following information ready:

• Your unit's Model and/or Sub-model
• Spec and/or Type Number
• Code and/or Serial Number
• Year of manufacture
• Engine Horsepower
• The ROP Shop Carburetor Model Number: XMP-ND181_Z14

Our knowledgeable product specialists are available to help verify product fitment and provide guidance.
