Introduction
This manual provides essential information for the proper installation, function, and maintenance of your UAC HT 2040C HVAC Heater Core. The UAC HT 2040C is an OE replacement heater core designed to meet or exceed original equipment specifications, ensuring reliable performance for your vehicle's heating system. Please read this manual thoroughly before attempting any installation or maintenance procedures.
Safety Information
Working with automotive components, especially those involving engine coolant, requires caution. Adhere to the following safety guidelines:
- Always wear appropriate personal protective equipment (PPE), including safety glasses and gloves.
- Ensure the vehicle's engine is cool before working on the cooling system to prevent burns from hot coolant.
- Disconnect the vehicle's battery before beginning any electrical work or component removal.
- Dispose of old coolant responsibly according to local environmental regulations.
- If you are unsure about any step, consult a qualified automotive technician.
Package Contents
Verify that all components are present and undamaged upon opening the package:
- 1x UAC HT 2040C HVAC Heater Core
If any items are missing or damaged, contact your supplier immediately.
Product Overview

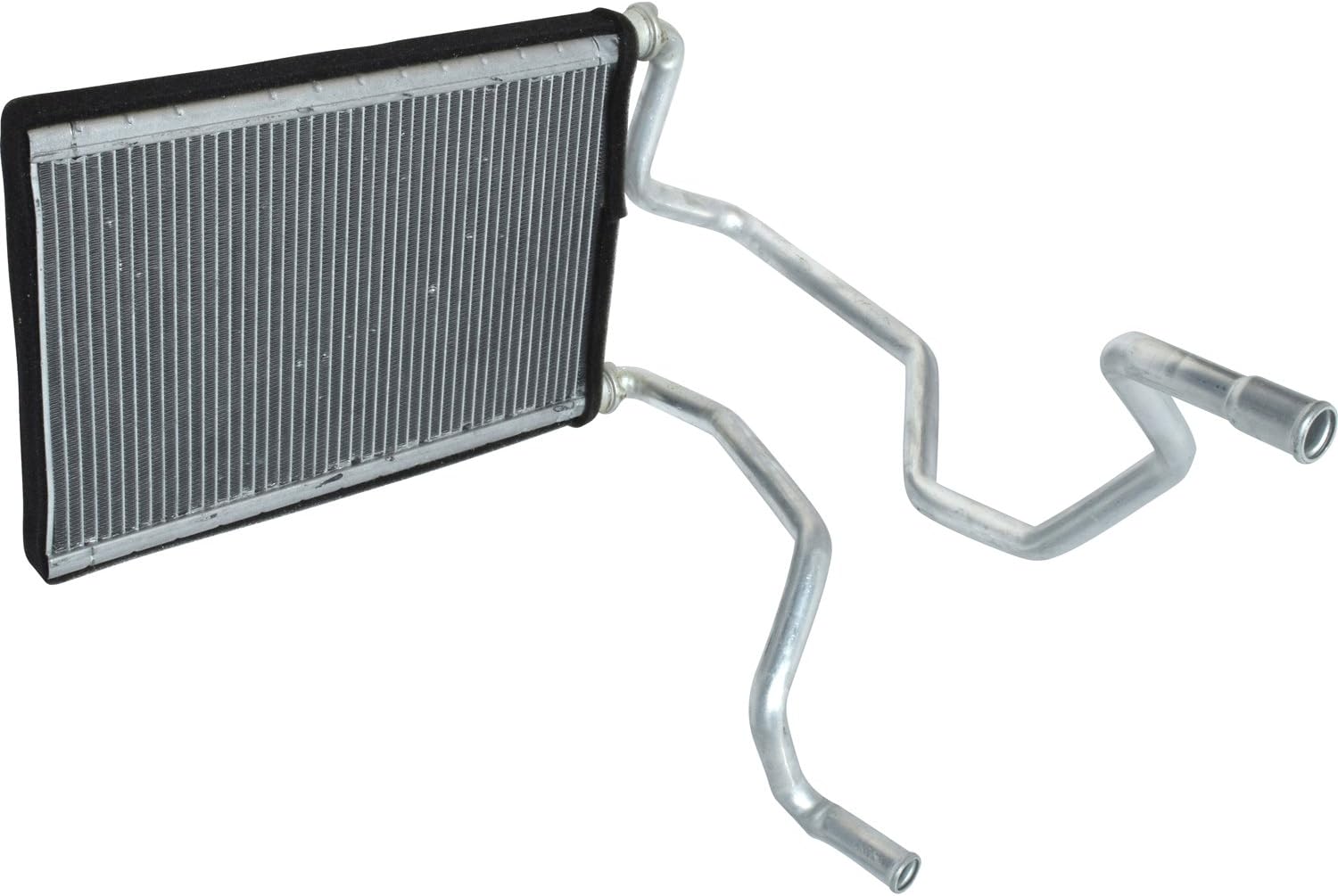

This image displays the UAC HT 2040C HVAC Heater Core. It features a rectangular finned core for heat exchange, with two metal pipes extending from one side for coolant circulation. The core is typically housed within the vehicle's dashboard and is responsible for transferring heat from the engine coolant to the cabin air.
The UAC HT 2040C Heater Core is a critical component of your vehicle's heating and ventilation system. It functions by allowing hot engine coolant to flow through its internal passages, transferring heat to the air blown across its fins. This warmed air is then directed into the vehicle's cabin, providing warmth during colder conditions.
Installation (Setup)
Installation of a heater core typically involves significant disassembly of the vehicle's dashboard and HVAC system. Due to the complexity and potential for damage, professional installation by a certified automotive technician is highly recommended. If you choose to perform the installation yourself, proceed with extreme caution and consult a vehicle-specific repair manual.
General Installation Steps (Consult Vehicle-Specific Manual for Details):
- Preparation: Park the vehicle on a level surface, engage the parking brake, and allow the engine to cool completely. Disconnect the negative terminal of the battery.
- Drain Coolant: Safely drain the engine coolant from the cooling system into a suitable container.
- Access Heater Core: This step varies significantly by vehicle model. It typically involves removing dashboard components, trim panels, and potentially the entire dashboard assembly to gain access to the HVAC housing.
- Disconnect Heater Hoses: Locate and disconnect the heater hoses from the heater core pipes, usually found in the engine bay or at the firewall. Be prepared for residual coolant to drain.
- Remove Old Heater Core: Carefully unfasten and remove the old heater core from its housing.
- Install New Heater Core: Insert the new UAC HT 2040C Heater Core into the housing, ensuring it seats correctly. Reconnect any retaining clips or fasteners.
- Reconnect Hoses: Reattach the heater hoses to the new heater core pipes, ensuring a secure, leak-free connection.
- Reassemble: Reinstall all removed dashboard components, trim panels, and other parts in reverse order of removal.
- Refill Coolant: Refill the cooling system with the appropriate type and amount of engine coolant. Bleed the air from the system as per your vehicle manufacturer's instructions.
- Test System: Reconnect the battery. Start the engine and allow it to reach operating temperature. Check for leaks and verify proper operation of the heating system. Monitor coolant levels and top up as needed.
Function (Operating)
The UAC HT 2040C Heater Core operates as an integral part of your vehicle's HVAC system. Once installed, its function is automatic when the vehicle's heating system is engaged. When you select heat from your vehicle's climate controls, a blend door directs air across the hot heater core, and a blower motor then pushes this warmed air into the cabin. No direct user operation of the heater core itself is required beyond the normal use of your vehicle's climate control system.
Maintenance
Proper maintenance of your vehicle's cooling system is crucial for the longevity and efficient operation of the heater core. While the heater core itself typically requires no direct maintenance, adhering to the following practices will help ensure its optimal performance:
- Regular Coolant Flushes: Follow your vehicle manufacturer's recommendations for regular coolant flushes and replacements. Old or contaminated coolant can lead to corrosion and blockages within the heater core.
- Use Correct Coolant: Always use the type and concentration of coolant specified by your vehicle manufacturer. Mixing different types of coolant or using incorrect concentrations can cause damage.
- Inspect Hoses: Periodically check heater hoses for cracks, leaks, or swelling. Replace damaged hoses promptly to prevent coolant loss and potential heater core issues.
- Monitor Coolant Levels: Regularly check your coolant reservoir level and top up as needed. Persistent low coolant levels can indicate a leak in the system, including the heater core.
Troubleshooting
If you experience issues with your vehicle's heating system after installing the UAC HT 2040C Heater Core, consider the following common problems and potential solutions:
| Problem | Possible Cause | Solution |
|---|---|---|
| No heat or insufficient heat in cabin |
|
|
| Sweet smell inside cabin |
|
|
| Foggy windows / moisture inside cabin |
|
|
| Coolant leaking from under dashboard |
|
|
For persistent or complex issues, it is always recommended to seek assistance from a qualified automotive professional.
Specifications
Key specifications for the UAC HT 2040C HVAC Heater Core:
| Feature | Detail |
|---|---|
| Brand | UAC (Universal Air Conditioner) |
| Model Number | HT 2040C |
| Item Weight | 9.3 pounds |
| Package Dimensions | 19.44 x 13.6 x 9.49 inches |
| Material | Aluminum (Heater Core) |
| Quality Standard | Premium ISO/TS 16949 quality; tested to meet or exceed OEM specifications |
Warranty Information
For specific warranty details regarding your UAC HT 2040C HVAC Heater Core, please refer to the official warranty documentation provided with your purchase or visit the UAC (Universal Air Conditioner) official website. Warranty terms and conditions typically cover manufacturing defects and may vary.
Customer Support
If you have questions, require technical assistance, or need to report an issue with your UAC HT 2040C HVAC Heater Core, please contact UAC customer support through their official website or the retailer from whom the product was purchased. Have your product model number (HT 2040C) and purchase information ready when contacting support.
